text version of content this owner's manual page from owners manual to the vehicle VW CC, year of production 2012:

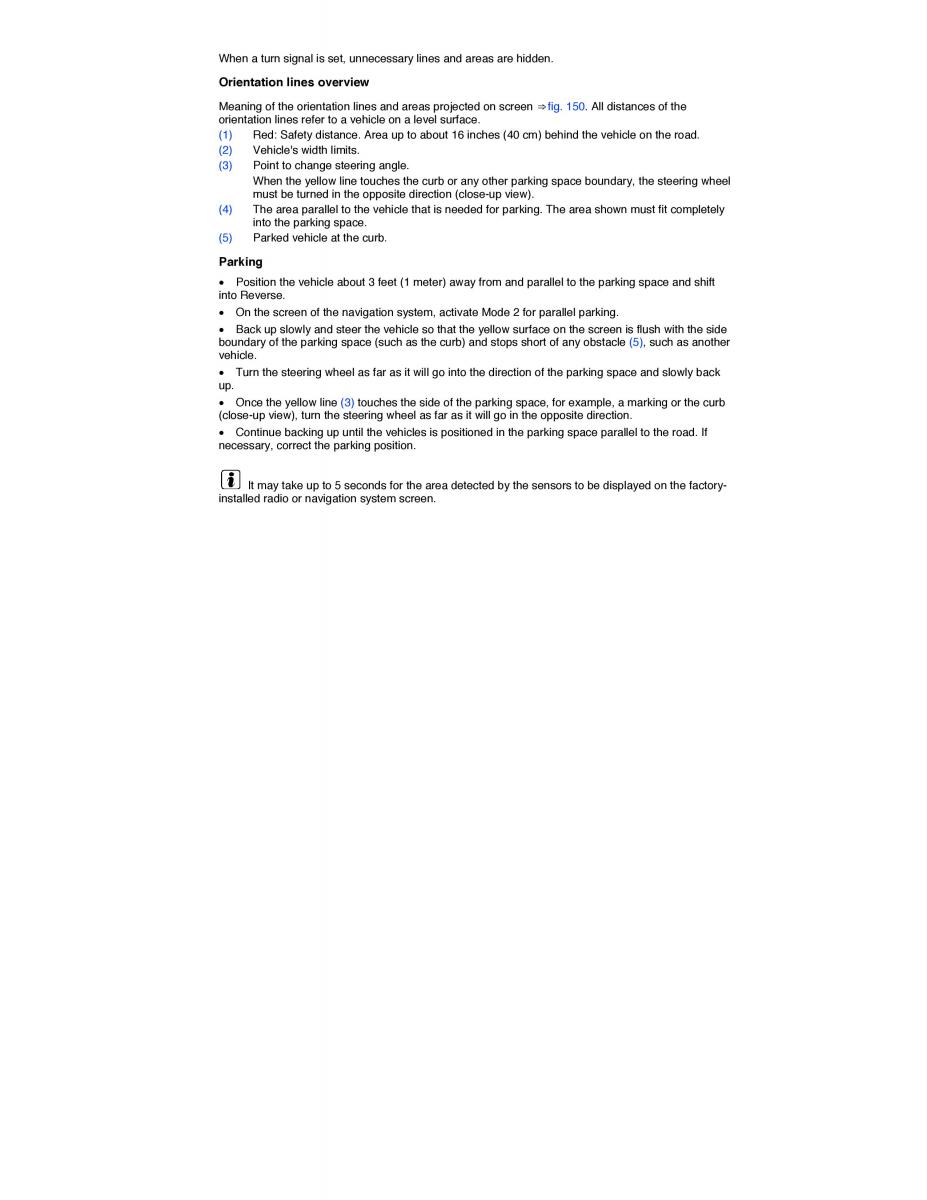

When a turn signal is set, unnecessary lines and areas are hidden. Orientation lines overview Meaning of the orientation lines and areas projected on screen ⇒ fig. 150. All distances of the orientation lines refer to a vehicle on a level surface. (1) Red: Safety distance. Area up to about 16 inches (40 cm) behind the vehicle on the road. (2) Vehicle's width limits. (3) Point to change steering angle. When the yellow line touches the curb or any other parking space boundary, the steering wheel must be turned in the opposite direction (close-up view). (4) The area parallel to the vehicle that is needed for parking. The area shown must fit completely into the parking space. (5) Parked vehicle at the curb. Parking x Position the vehicle about 3 feet (1 meter) away from and parallel to the parking space and sifht into Reverse. x On the screen of the navigation system, activate Mode 2 for parallel parking. x Back up slowly and steer the vehicle so that the yellow surface on the screen is flush with the side boundary of the parking space (such as the curb) and stops short of any obstacle (5), such as another vehicle. x Turn the steering wheel as far as it will go into the direction of the parking space and slowly back up. x Once the yellow line(3) touches the side of the parking space, for example, a marking or the curb (close-up view), turn the steering wheel as far as it will go in the opposite direction. x Continue backing up until the vehicles is positioned in the parking space parallel to the road. If necessary, correct the parking position. It may take up to 5 seconds for the area detected by the sensors to be displayed on the factory- installed radio or navigation system screen.
