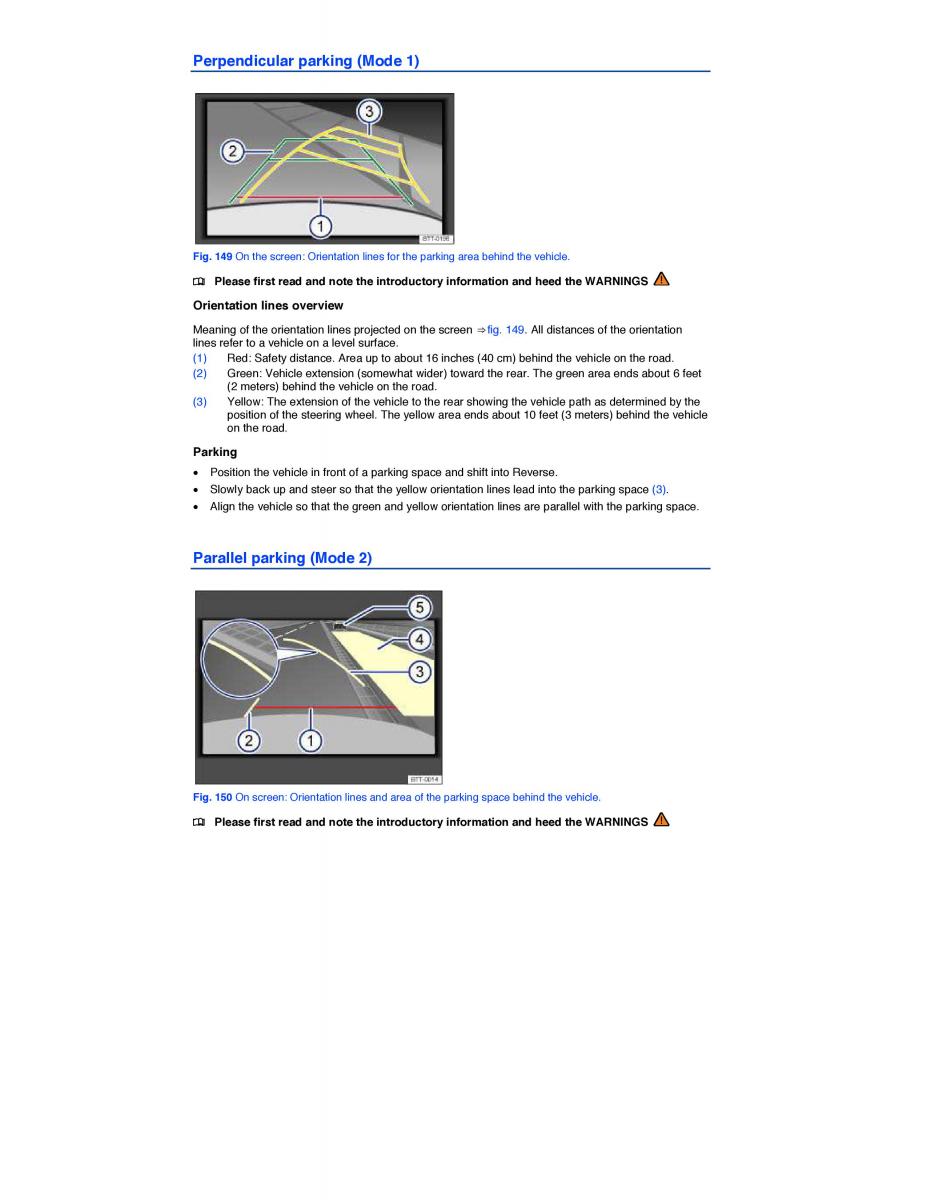

Perpendicular parking (Mode 1) Fig. 149 On the screen: Orientation lines for the parking area behind the vehicle. ¤ Please first read and note the introductory information and heed the WARNINGS Orientation lines overview Meaning of the orientation lines projected on the screen ⇒ fig. 149. All distances of the orientation lines refer to a vehicle on a level surface. (1) Red: Safety distance. Area up to about 16 inches (40 cm) behind the vehicle on the road. (2) Green: Vehicle extension (somewhat wider) toward the rear. The green area ends about 6 feet (2 meters) behind the vehicle on the road. (3) Yellow: The extension of the vehicle to the rear showing the vehicle path as determined by the position of the steering wheel. The yellow area ends about 10 feet (3 meters) behind the vehicle on the road. Parking x Position the vehicle in front of a parking space and shift into Reverse. x Slowly back up and steer so that the yellow orientation lines lead into the parking space(3 ). x Align the vehicle so that the green and yellow orientation lines are parallel with the parking space. Parallel parking (Mode 2) Fig. 150 On screen: Orientation lines and area of the parking space behind the vehicle. ¤ Please first read and note the introductory information and heed the WARNINGS
