owners manual Seat Leon

all ratings: 0 average rating: 5

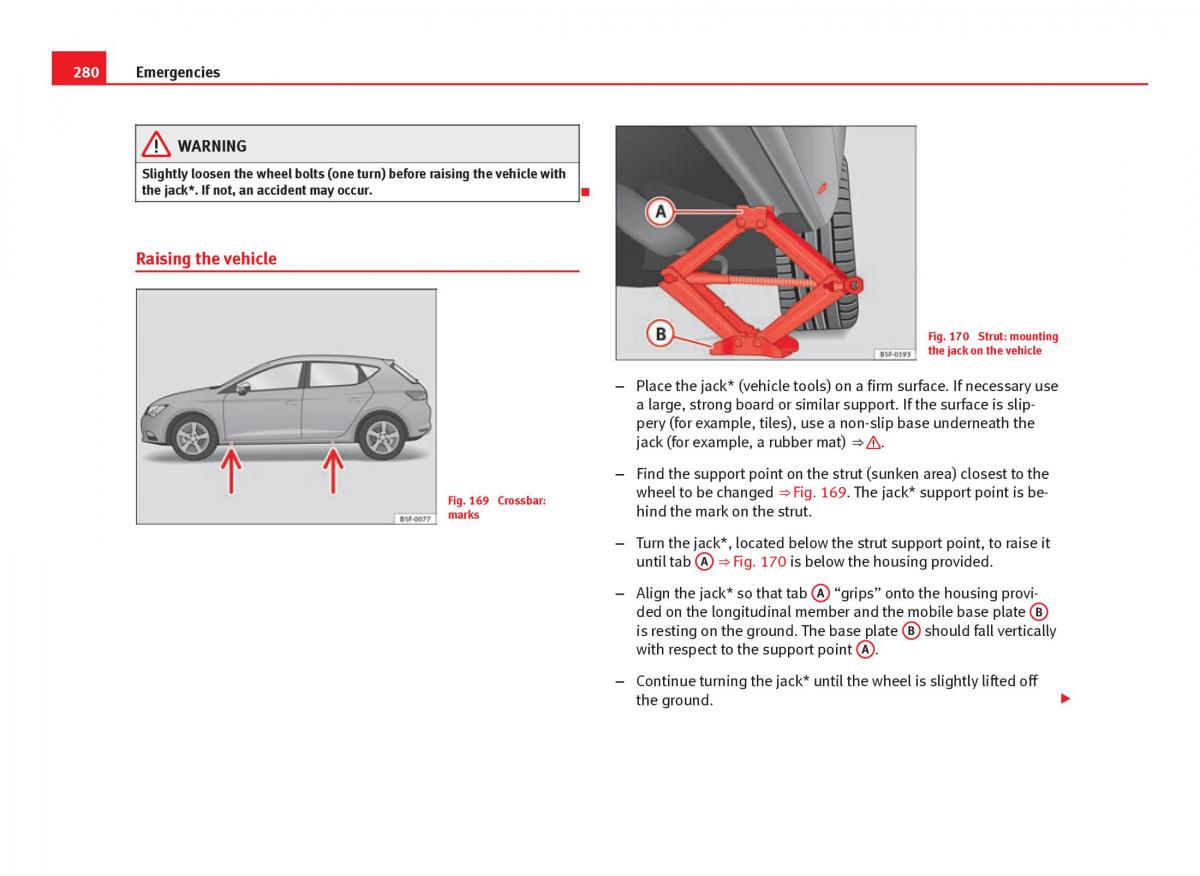

280 Emergencies WARNING Slightly loosen the wheel bolts (one turn) before raising the vehicle with the jack*. If not, an accident may occur.  Raising the vehicle Fig. 170 Strut: mounting the jack on the vehicle – Place the jack* (vehicle tools) on a firm surface. If necessary use a large, strong board or similar support. If the surface is slip- pery (for example, tiles), use a non-slip base underneath the jack (for example, a rubber mat) ⇒ . – Find the support point on the strut (sunken area) closest to the wheel to be changed ⇒ Fig. 169. The jack* support point is be- Fig. 169 Crossbar: hind the mark on the strut. marks – Turn the jack*, located below the strut support point, to raise it until tab A ⇒ Fig. 170 is below the housing provided. – Align the jack* so that tab A “grips” onto the housing provi- ded on the longitudinal member and the mobile base plate B is resting on the ground. The base plate B should fall vertically with respect to the support point A . – Continue turning the jack* until the wheel is slightly lifted off  the ground.
