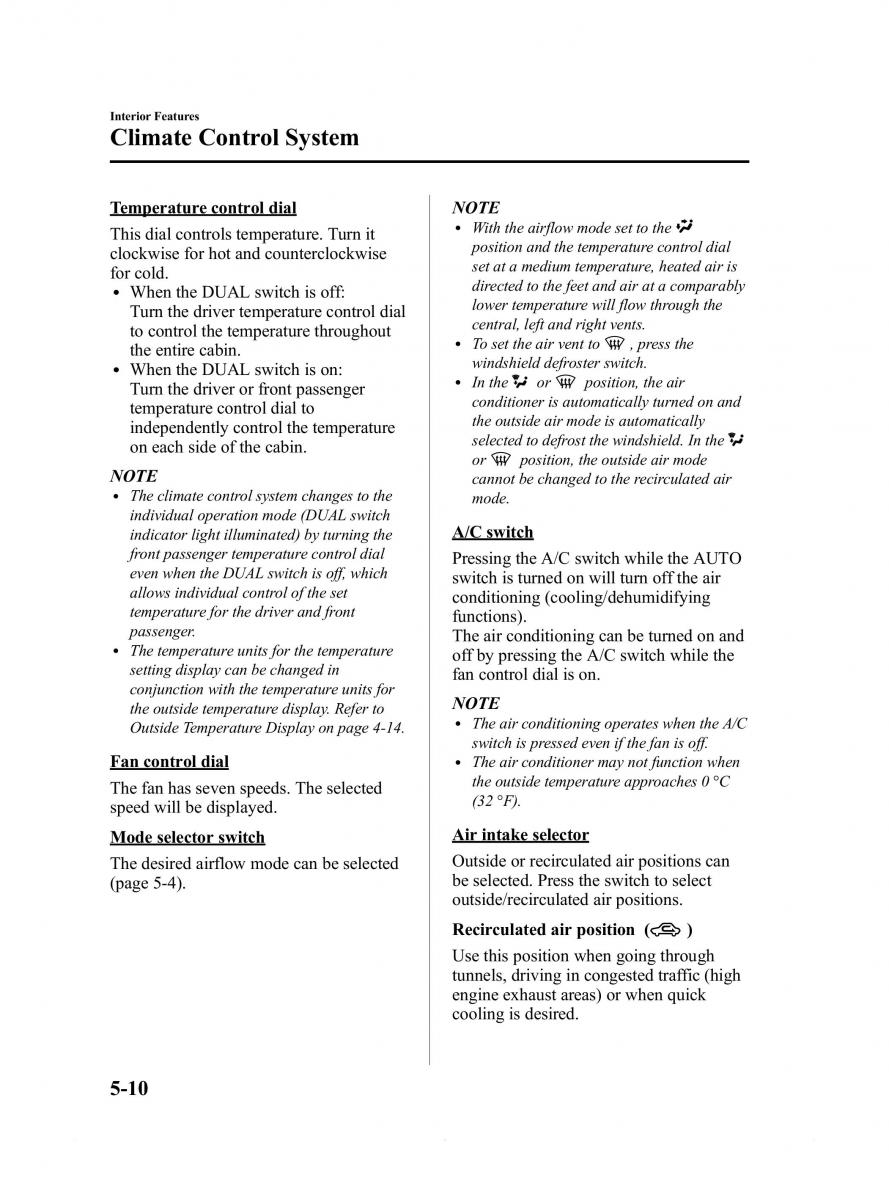

Mazda6_8DQ8-EA-13L_Edition3 Page282
Friday, June 13 2014 6:22 PM
Black plate (282,1)
Interior Features
Climate Control System
Temperaturecontrol dial NOTE
This dial controls temperature. Turn it l With the airflow mode set to the
clockwise for hot and counterclockwise position and the temperature control dial
for cold. set at a medium temperature, heated air is
l WhentheDUALswitchisoff: directed to the feet and air at a comparably
Turn the driver temperature control dial lower temperature will flow through the
to control the temperature throughout central, left and right vents.
the entire cabin. l Toset the air vent to , press the
l WhentheDUALswitchison: windshield defroster switch.
Turn the driver or front passenger l In the or position, the air
temperature control dial to conditioner is automatically turned on and
independently control the temperature the outside air mode is automatically
on each side of the cabin. selected to defrost the windshield. In the
or position, the outside air mode
NOTE cannot be changed to the recirculated air
l Theclimate control system changes to the mode.
individual operation mode (DUAL switch
indicator light illuminated) by turning the A/Cswitch
front passenger temperature control dial Pressing the A/C switch while the AUTO
even when the DUAL switch is off, which switch is turned on will turn off the air
allows individual control of the set conditioning (cooling/dehumidifying
temperature for the driver and front functions).
passenger. Theair conditioning can be turned on and
l Thetemperature units for the temperature off by pressing the A/C switch while the
setting display can be changed in fan control dial is on.
conjunction with the temperature units for
the outside temperature display. Refer to NOTE
Outside Temperature Display on page 4-14. l Theairconditioning operates when the A/C
switch is pressed even if the fan is off.
Fancontrol dial l Theairconditioner may not function when
Thefan has seven speeds. The selected the outside temperature approaches 0 °C
speed will be displayed. (32 °F).
Modeselector switch Air intake selector
Thedesired airflow mode can be selected Outside or recirculated air positions can
(page 5-4). be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position ( )
Usethis position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
5-10
Form No.8DQ8-EA-13L
