Mazda6_8DQ8-EA-13L_Edition3 Page281
Friday, June 13 2014 6:22 PM
Black plate (281,1)

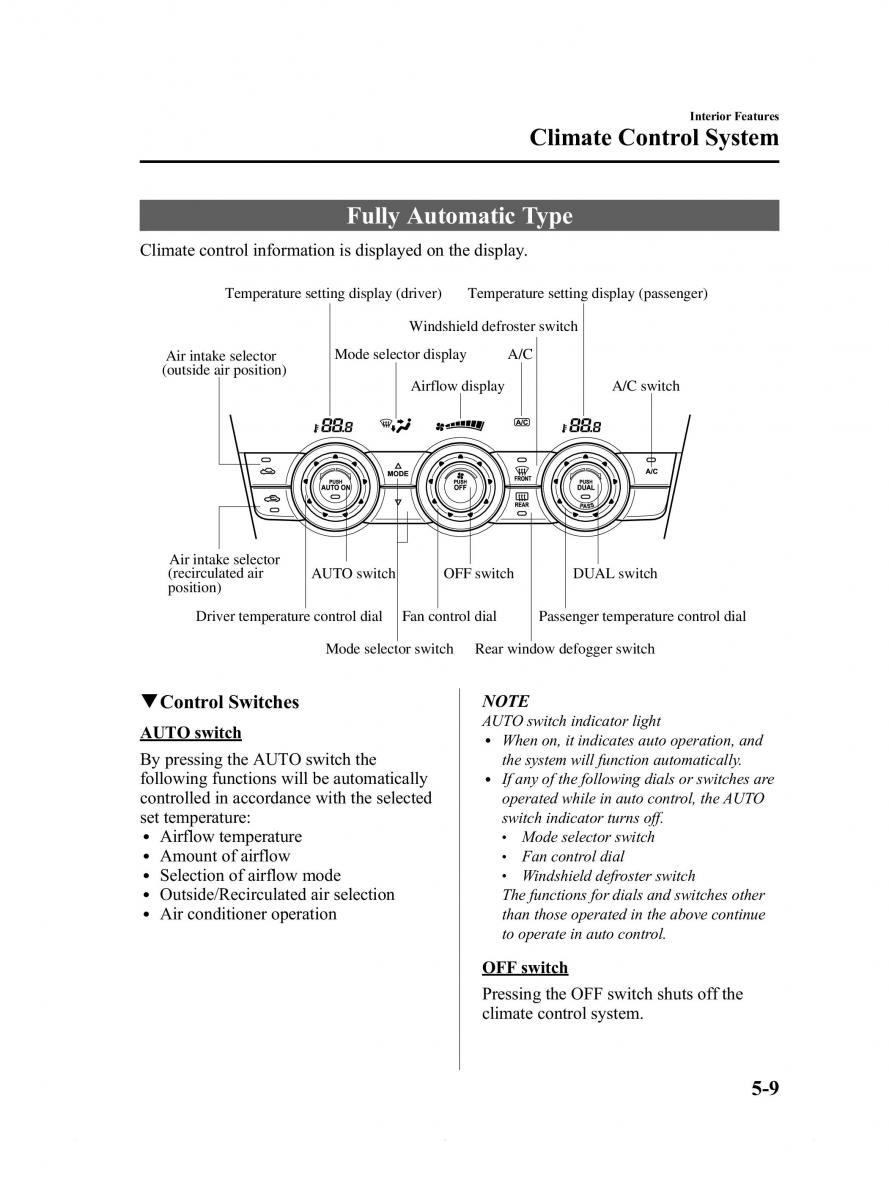

Interior Features
Climate Control System
Fully Automatic Type
Climate control information is displayed on the display.
Temperature setting display (driver) Temperature setting display (passenger)
Windshield defroster switch
Air intake selector Mode selector display A/C
(outside air position)
Airflow display A/C switch
Air intake selector
(recirculated air AUTO switch OFF switch DUAL switch
position)
Driver temperature control dial Fan control dial Passenger temperature control dial
Mode selector switch Rear window defogger switch
qControlSwitches NOTE
AUTOswitch AUTOswitchindicator light
l Whenon,itindicates auto operation, and
Bypressing the AUTO switch the the system will function automatically.
following functions will be automatically l If any of the following dials or switches are
controlled in accordance with the selected operated while in auto control, the AUTO
set temperature: switch indicator turns off.
l Airflow temperature l Modeselector switch
l Amountofairflow l Fancontrol dial
l Selection of airflow mode l Windshield defroster switch
l Outside/Recirculated air selection The functions for dials and switches other
l Air conditioner operation than those operated in the above continue
to operate in auto control.
OFFswitch
Pressing the OFF switch shuts off the
climate control system.
5-9
Form No.8DQ8-EA-13L
