text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2009 - 2014:

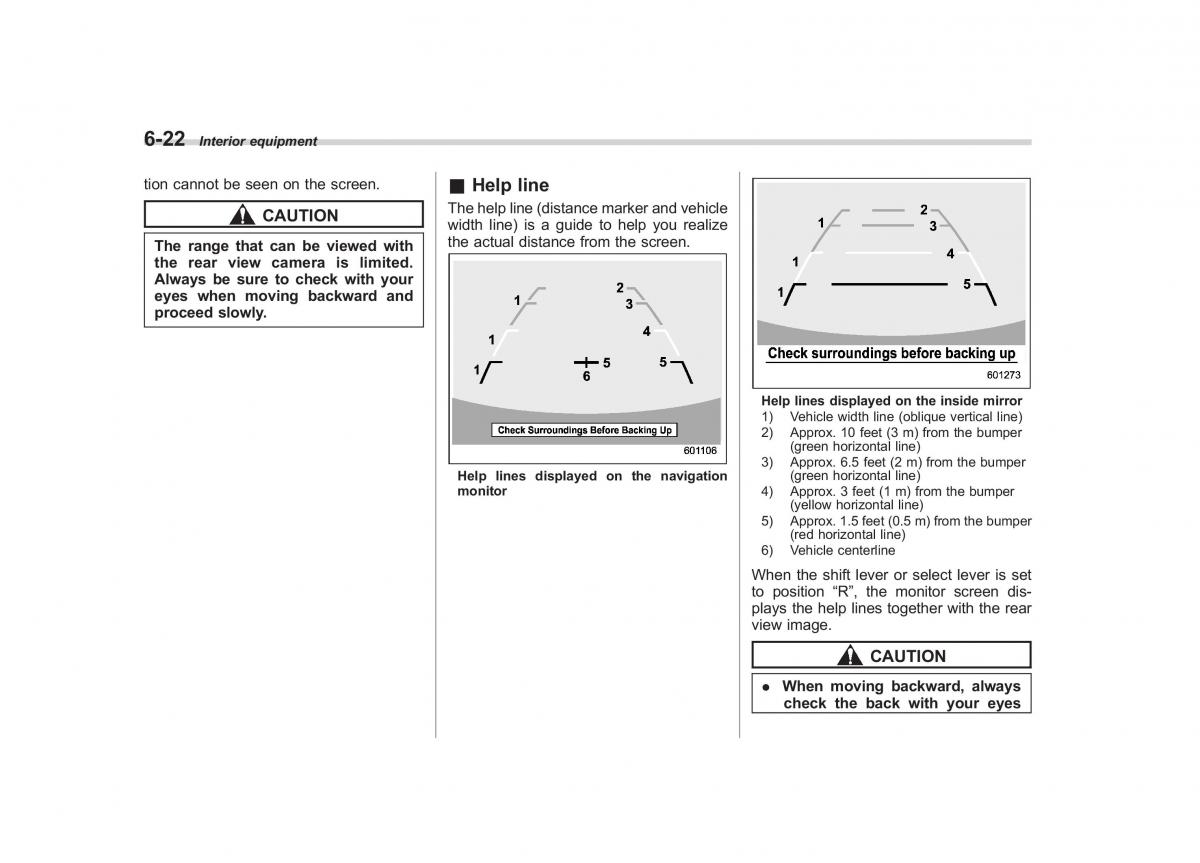

6-22 Interior equipment tion cannot be seen on the screen.&Helpline CAUTION Thehelpline(distance markerandvehicle width line) is a guide to help you realize The range that can be viewed withthe actual distance from the screen. the rear view camera is limited. Always be sure to check with your eyes when moving backward and proceed slowly. Help lines displayed on the inside mirror 1) Vehicle width line (oblique vertical line) 2) Approx. 10 feet (3 m) from the bumper (green horizontal line) 3) Approx. 6.5 feet (2 m) from the bumper Help lines displayed on the navigation(green horizontal line) monitor 4) Approx. 3 feet (1 m) from the bumper (yellow horizontal line) 5) Approx. 1.5 feet (0.5 m) from the bumper (red horizontal line) 6) Vehicle centerline When the shift lever or select lever is set to position “R”, the monitor screen dis- plays the help lines together with the rear view image. CAUTION . When moving backward, always check the back with your eyes
