text version of content this owner's manual page from owners manual to the vehicle Volvo V70 XC70, year of production 2007:

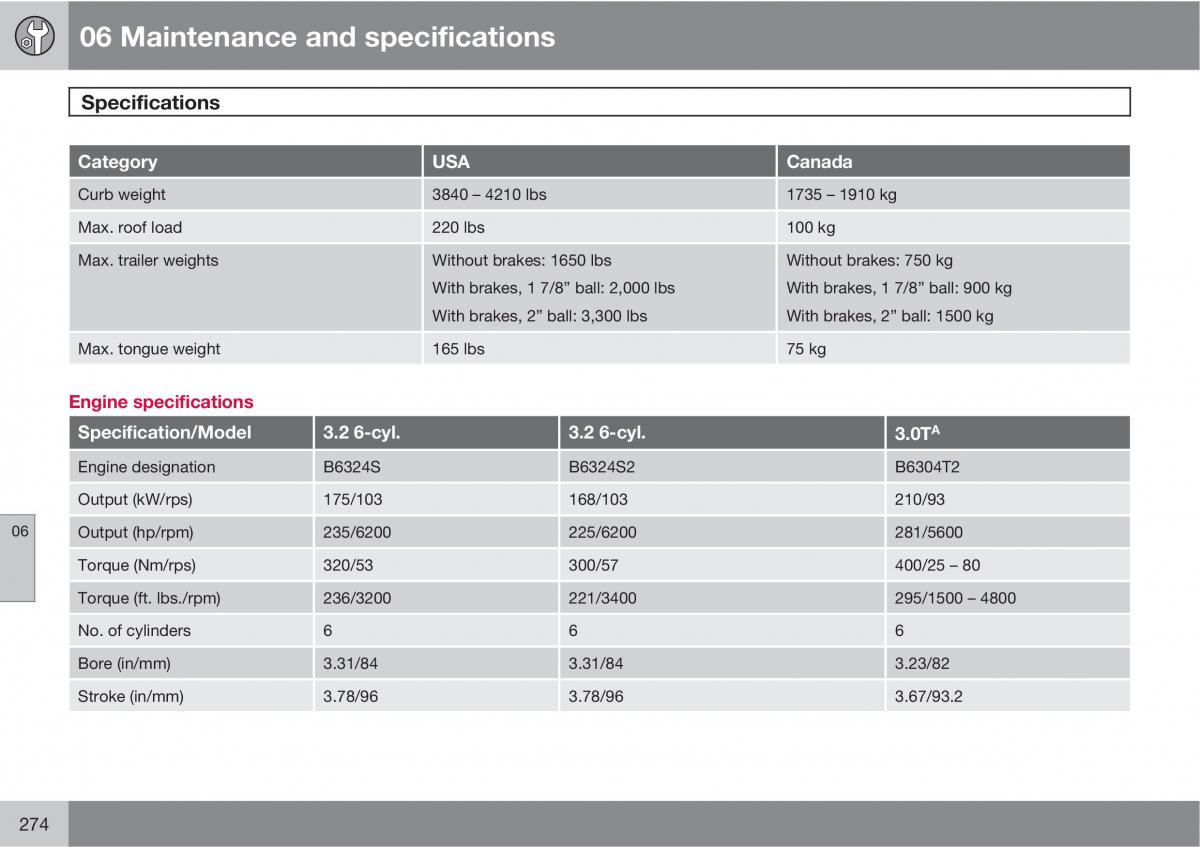

06 Maintenance and specifications Specifications Category USA Canada Curb weight 3840 – 4210 lbs 1735 – 1910 kg Max. roof load 220 lbs 100 kg Max. trailer weights Without brakes: 1650 lbs Without brakes: 750 kg With brakes, 1 7/8” ball: 2,000 lbs With brakes, 1 7/8” ball: 900 kg With brakes, 2” ball: 3,300 lbs With brakes, 2” ball: 1500 kg Max. tongue weight 165 lbs 75 kg Engine specifications Specification/Model 3.2 6-cyl. 3.2 6-cyl. A 3.0T Engine designation B6324S B6324S2 B6304T2 Output (kW/rps) 175/103 168/103 210/93 06 Output (hp/rpm) 235/6200 225/6200 281/5600 Torque (Nm/rps) 320/53 300/57 400/25 – 80 Torque (ft. lbs./rpm) 236/3200 221/3400 295/1500 – 4800 No. of cylinders 6 6 6 Bore (in/mm) 3.31/84 3.31/84 3.23/82 Stroke (in/mm) 3.78/96 3.78/96 3.67/93.2 274
