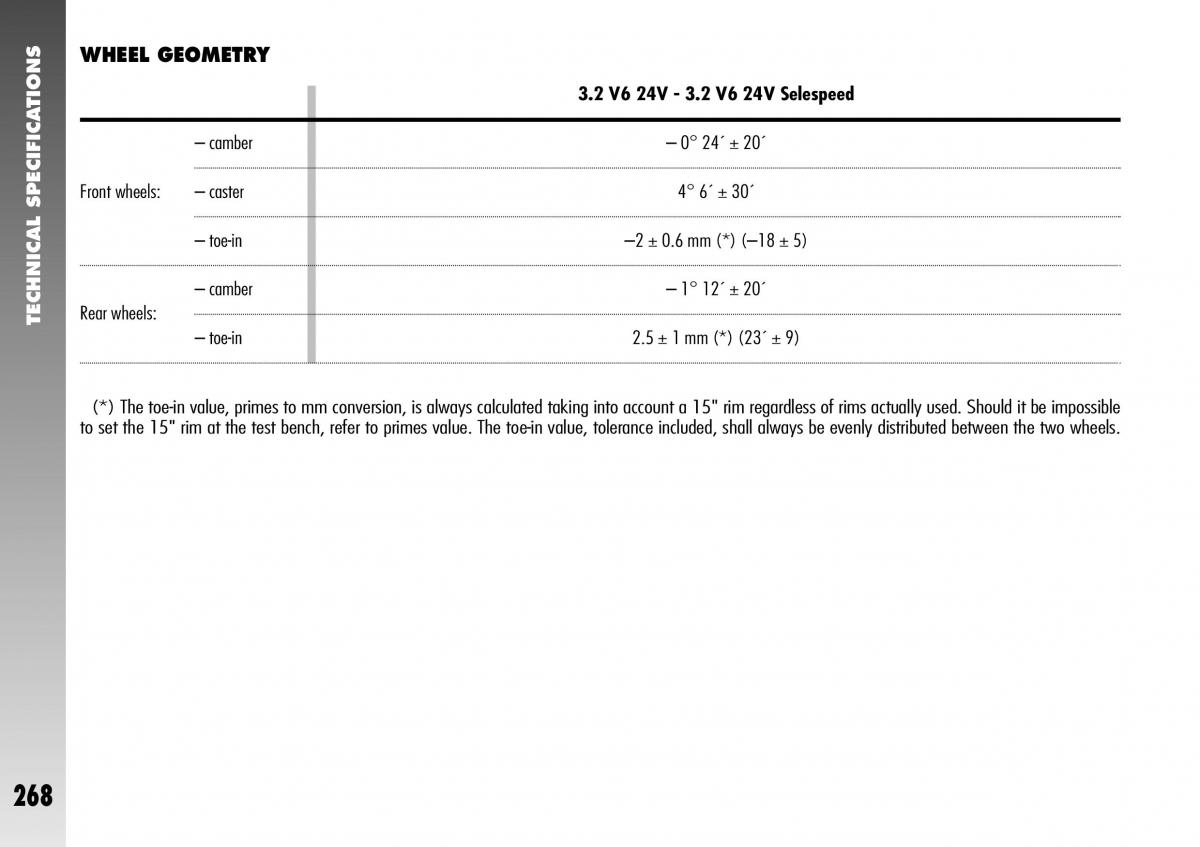

WHEEL GEOMETRY
TIONS 3.2 V6 24V - 3.2 V6 24V Selespeed
– camber – 0° 24´ ± 20´
Front wheels:– caster 4° 6´ ± 30´
– toe-in –2 ± 0.6 mm (*) (–18 ± 5)
– camber – 1° 12´ ± 20´
Rear wheels:
TECHNICAL SPECIFICA
– toe-in 2.5 ± 1 mm (*) (23´ ± 9)
(*) The toe-in value, primes to mm conversion, is always calculated taking into account a 15" rim regardless of rims actually used. Should it be impossible
to set the 15" rim at the test bench, refer to primes value. The toe-in value, tolerance included, shall always be evenly distributed between the two wheels.
268
