from owners manual to the vehicle Alfa Romeo 156 GTA, year of production 1997 - 2006:

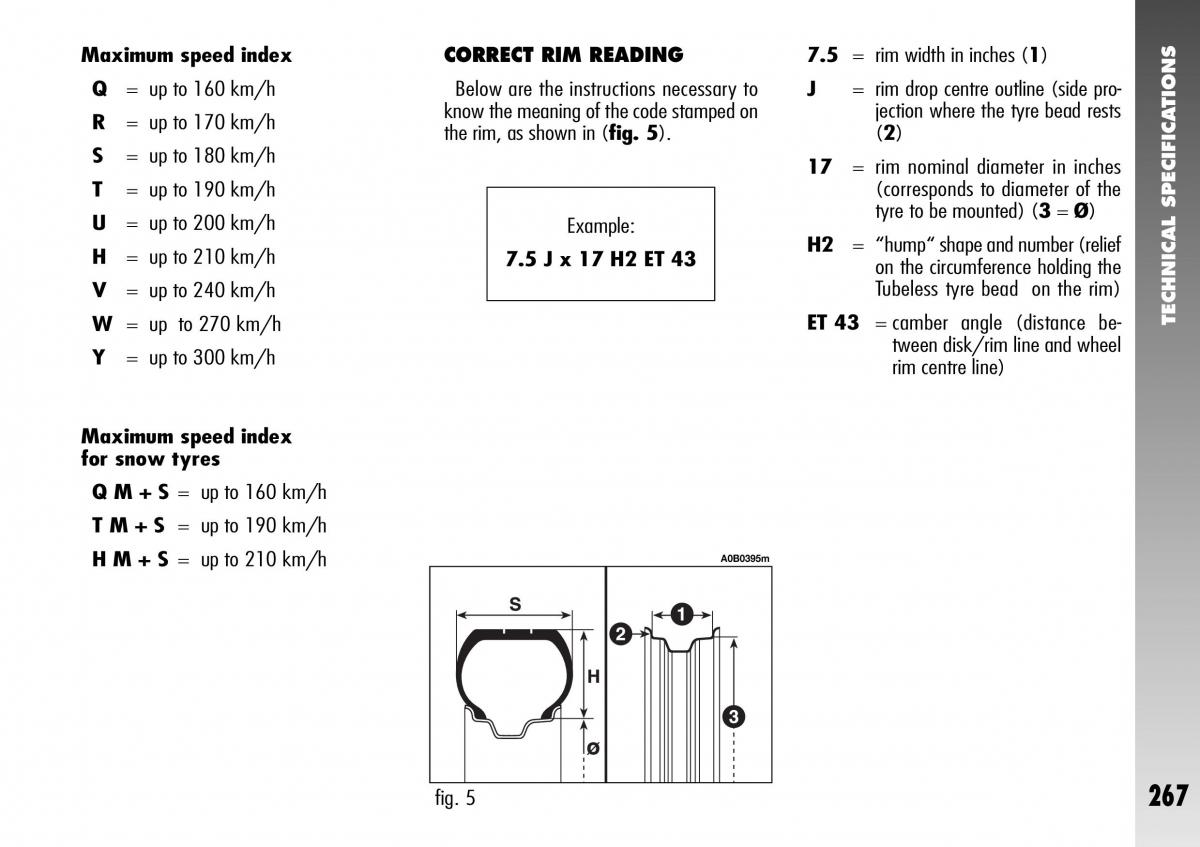

Maximum speed index CORRECT RIM READING 7.5 = rim width in inches ( 1)
Q = up to 160 km/h J = rim drop centre outline (side pro-
Below are the instructions necessary to TIONS
R = up to 170 km/h know the meaning of the code stamped on jection where the tyre bead rests
the rim, as shown in (fig. 5). (2)
S = up to 180 km/h 17 = rim nominal diameter in inches
T = up to 190 km/h (corresponds to diameter of the
U = up to 200 km/h Example: tyre to be mounted) (3=Ø)
H = up to 210 km/h 7.5 J x 17 H2 ET 43 H2 = “hump“ shape and number (relief
on the circumference holding the
V = up to 240 km/h Tubeless tyre bead on the rim)
TECHNICAL SPECIFICA
W = up to 270 km/h ET 43 = camber angle (distance be-
Y = up to 300 km/h tween disk/rim line and wheel
rim centre line)
Maximum speed index
for snow tyres
Q M + S = up to 160 km/h
T M + S = up to 190 km/h
H M + S = up to 210 km/h A0B0395m
fig. 5 267
