text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 159, year of production 2005 - 2011:

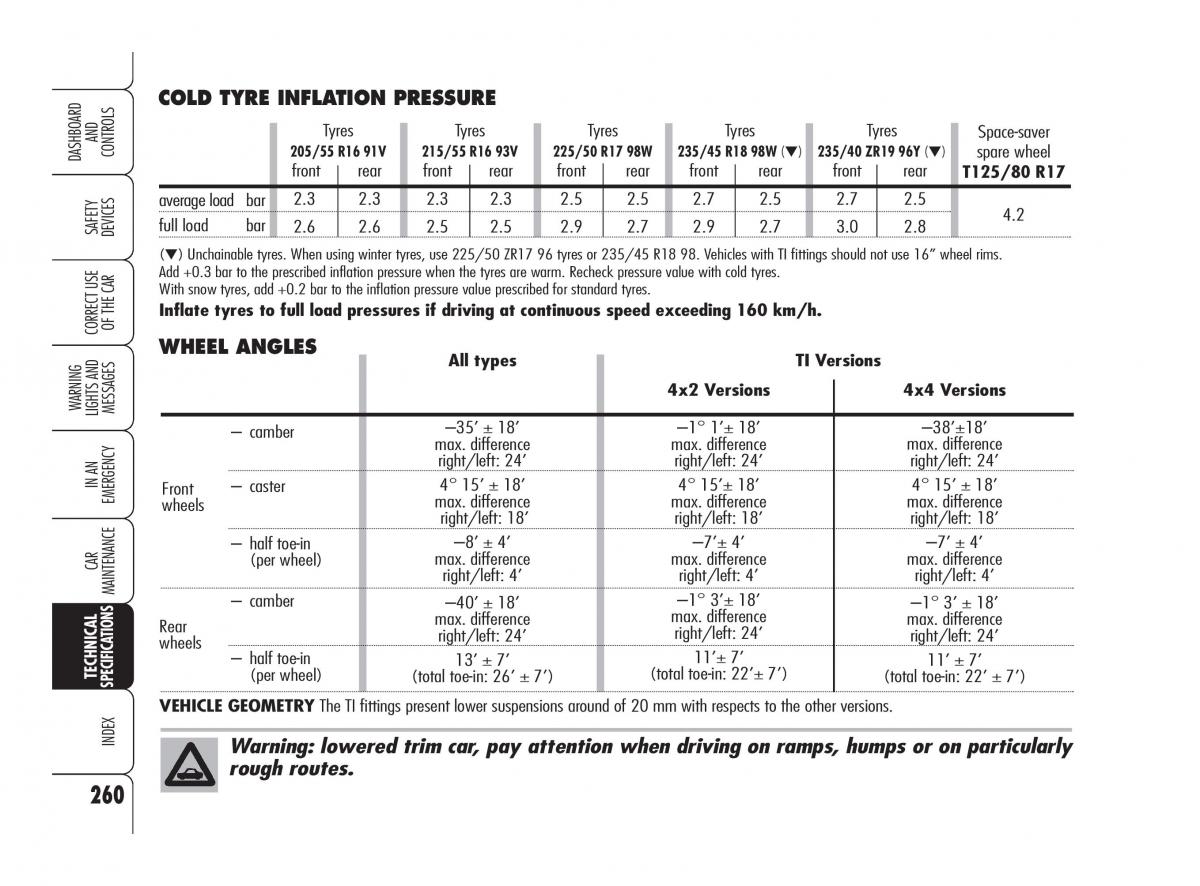

249-270 Alfa 159 GB 3-12-2009 15:51 Pagina 260 COLD TYRE INFLATION PRESSURE AND Tyres Tyres Tyres Tyres Tyres Space-saver DASHBOARDCONTROLS 205/55 R16 91V215/55 R16 93V225/50 R17 98W235/45 R18 98W (▼)235/40 ZR19 96Y (▼)spare wheel front rear front rear front rear front rear front rear T125/80 R17 average loadbar2.32.3 2.3 2.3 2.5 2.5 2.7 2.5 2.7 2.5 full loadbar2.6 2.6 2.5 2.5 2.9 2.7 2.9 2.7 3.0 2.8 4.2 SAFETY DEVICES (▼) Unchainable tyres. When using winter tyres, use 225/50 ZR17 96 tyres or 235/45 R18 98. Vehicles with TI fittings should not use 16” wheel rims. Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres. With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres. Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h. CORRECT USE OF THE CAR WHEEL ANGLES All types TI Versions RNING 4x2 Versions 4x4 Versions A WLIGHTS AND MESSAGES – camber –35’ ± 18’ –1° 1’± 18’ –38’±18’ max. difference max. difference max. difference right/left: 24’ right/left: 24’ right/left: 24’ IN AN Front – caster 4° 15’ ± 18’ 4° 15’± 18’ 4° 15’ ± 18’ EMERGENCYwheels max. difference max. difference max. difference right/left: 18’ right/left: 18’ right/left: 18’ – half toe-in –8’ ± 4’ –7’± 4’ –7’ ± 4’ CAR (per wheel) max. difference max. difference max. difference right/left: 4’ right/left: 4’ right/left: 4’ MAINTENANCE– camber –40’ ± 18’ –1° 3’± 18’ –1° 3’ ± 18’ Rear max. difference max. difference max. difference TIONSwheels right/left: 24’ right/left: 24’ right/left: 24’ TECHNICAL – half toe-in 13’ ± 7’ 11’± 7’ 11’ ± 7’ SPECIFICA (per wheel) (total toe-in: 26’ ± 7’)(total toe-in: 22’± 7’)(total toe-in: 22’ ± 7’) VEHICLE GEOMETRY The TI fittings present lower suspensions around of 20 mm with respects to the other versions. INDEX Warning: lowered trim car, pay attention when driving on ramps, humps or on particularly rough routes. 260
