text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 159, year of production 2005 - 2011:

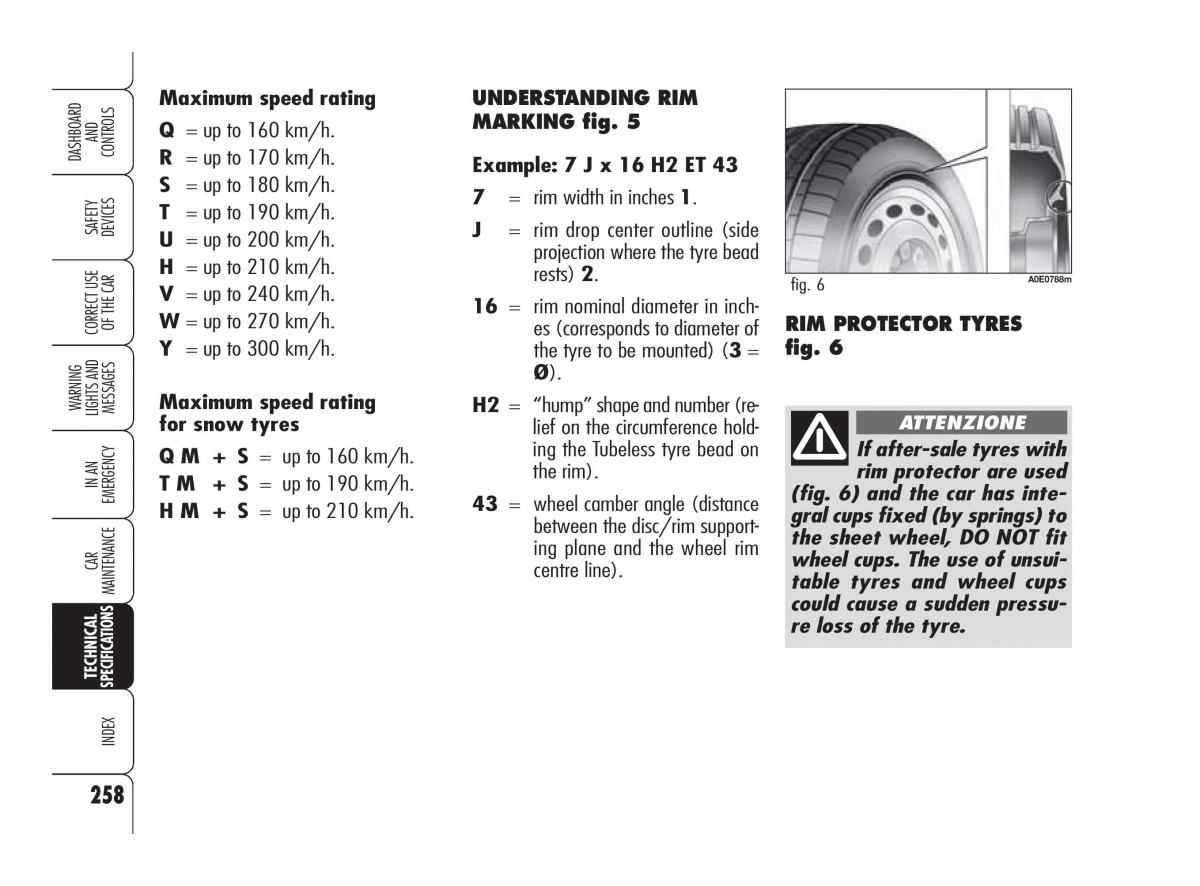

249-270 Alfa 159 GB 3-12-2009 15:51 Pagina 258 Maximum speed rating UNDERSTANDING RIM AND Q = up to 160 km/h. MARKING fig. 5 DASHBOARDCONTROLSR = up to 170 km/h. Example: 7 J x 16 H2 ET 43 S = up to 180 km/h. 7 = rim width in inches 1. T = up to 190 km/h. SAFETY DEVICESU = up to 200 km/h. J = rim drop center outline (side H = up to 210 km/h. projection where the tyre bead rests) 2. fig. 6 A0E0788m V = up to 240 km/h. 16 = rim nominal diameter in inch- CORRECT USE OF THE CARW= up to 270 km/h. es (corresponds to diameter of RIM PROTECTOR TYRES Y = up to 300 km/h. the tyre to be mounted) (3 = fig. 6 Ø). RNING A Maximum speed rating W LIGHTS AND MESSAGES H2 = “hump” shape and number (re- for snow tyres lief on the circumference hold- ATTENZIONE Q M + S = up to 160 km/h. ing the Tubeless tyre bead on If after-sale tyres with IN AN T M + S = up to 190 km/h. the rim). rim protector are used EMERGENCYH M + S = up to 210 km/h. 43 = wheel camber angle (distance (fig. 6) and the car has inte- between the disc/rim support- gral cups fixed (by springs) to the sheet wheel, DO NOT fit ing plane and the wheel rim CAR centre line). wheel cups. The use of unsui- MAINTENANCE table tyres and wheel cups could cause a sudden pressu- TIONS re loss of the tyre. TECHNICAL SPECIFICA INDEX 258
