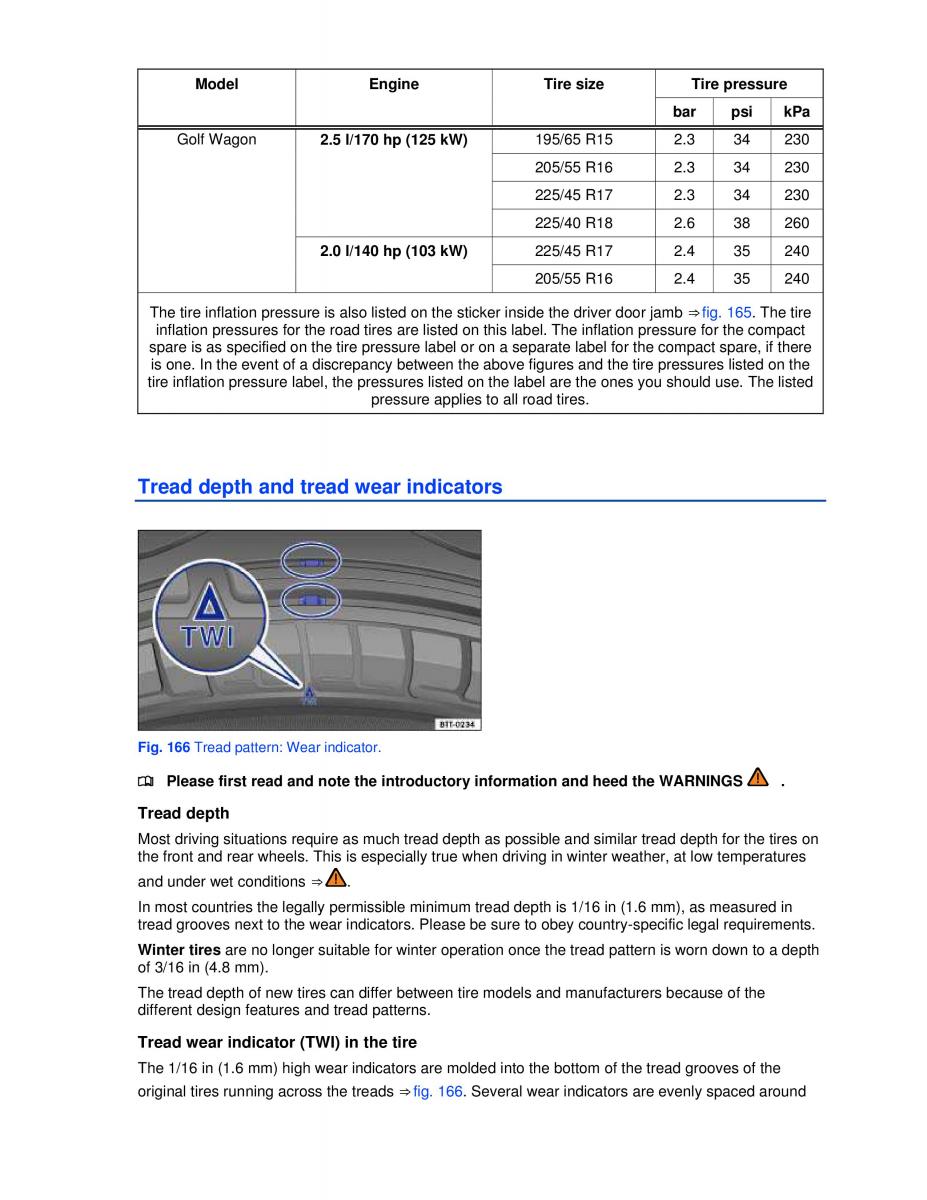

text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

Model Engine Tire size Tire pressure bar psikPa Golf Wagon 2.5 l/170 hp (125 kW) 195/65 R15 2.3 34 230 205/55 R16 2.3 34 230 225/45 R17 2.3 34 230 225/40 R18 2.6 38 260 2.0 l/140 hp (103 kW) 225/45 R17 2.4 35 240 205/55 R16 2.4 35 240 The tire inflation pressure is also listed on the sticker inside the driver door jamb ⇒ fig. 165. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. Tread depth and tread wear indicators Fig. 166 Tread pattern: Wear indicator. ¤ Please first read and note the introductory information and heed the WARNINGS . Tread depth Most driving situations require as much tread depth as possible and similar tread depth for the tires on the front and rear wheels. This is especially true when driving in winter weather, at low temperatures and under wet conditions ⇒ . In most countries the legally permissible minimum tread depth is 1/16 in (1.6 mm), as measured in tread grooves next to the wear indicators. Please be sure to obey country-specific legal requirements. Winter tires are no longer suitable for winter operation once the tread pattern is worn down to a depth of 3/16 in (4.8 mm). The tread depth of new tires can differ between tire models and manufacturers because of the different design features and tread patterns. Tread wear indicator (TWI) in the tire The 1/16 in (1.6 mm) high wear indicators are molded into the bottom of the tread grooves of the original tires running across the treads ⇒ fig. 166. Several wear indicators are evenly spaced around
