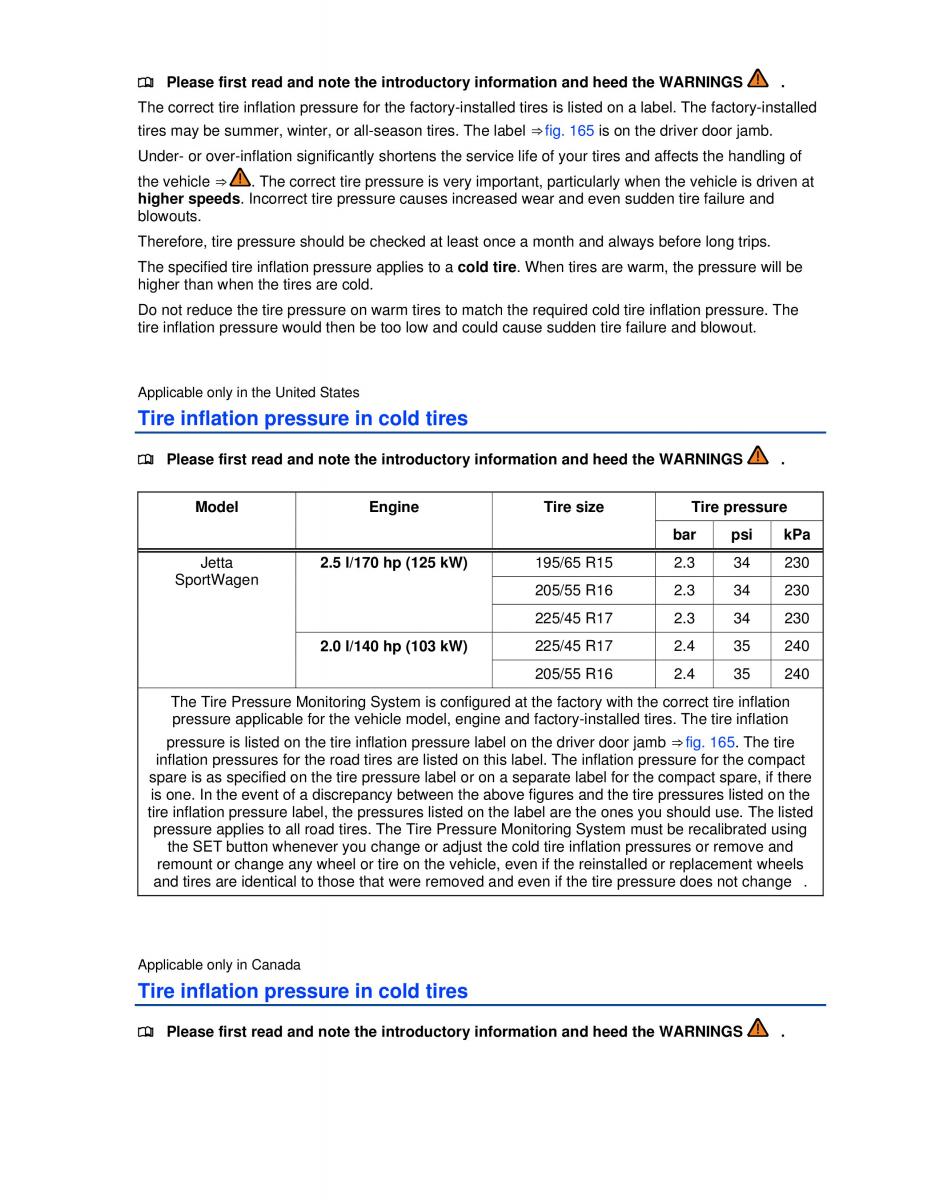

¤ Please first read and note the introductory information and heed the WARNINGS . The correct tire inflation pressure for the factory-installed tires is listed on a label. The factory-installed tires may be summer, winter, or all-season tires. The label ⇒ fig. 165 is on the driver door jamb. Under- or over-inflation significantly shortens the service life of your tires and affects the handling of the vehicle ⇒ . The correct tire pressure is very important, particularly when the vehicle is driven at higher speeds. Incorrect tire pressure causes increased wear and even sudden tire failure and blowouts. Therefore, tire pressure should be checked at least once a month and always before long trips. The specified tire inflation pressure applies to a cold tire. When tires are warm, the pressure will be higher than when the tires are cold. Do not reduce the tire pressure on warm tires to match the required cold tire inflation pressure. The tire inflation pressure would then be too low and could cause sudden tire failure and blowout. Applicable only in the United States Tire inflation pressure in cold tires ¤ Please first read and note the introductory information and heed the WARNINGS . Model Engine Tire size Tire pressure bar psi kPa Jetta 2.5 l/170 hp (125 kW) 195/65 R15 2.3 34 230 SportWagen 205/55 R16 2.3 34 230 225/45 R17 2.3 34 230 2.0 l/140 hp (103 kW) 225/45 R17 2.4 35 240 205/55 R16 2.4 35 240 The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire inflation pressure label on the driver door jamb ⇒ fig. 165. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated using the SET button whenever you change or adjust the cold tire inflation pressures or remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change . Applicable only in Canada Tire inflation pressure in cold tires ¤ Please first read and note the introductory information and heed the WARNINGS .
