from owners manual to the vehicle Ford Edge, year of production 2014:

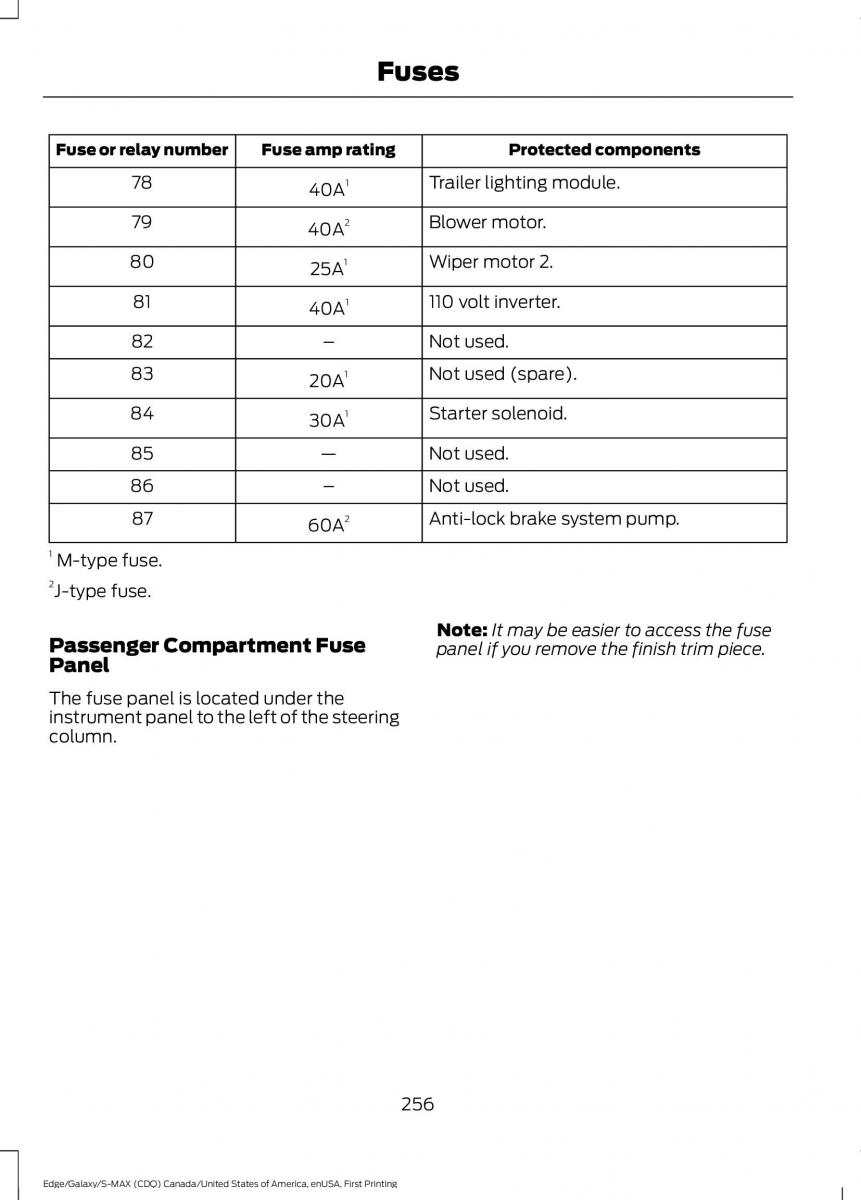

Fuses
Fuse or relay number Fuse amp rating Protected components
78 1 Trailer lighting module.
40A
79 40A2 Blower motor.
80 1 Wiper motor 2.
25A
81 1 110 volt inverter.
40A
82 – Not used.
83 20A1 Not used (spare).
84 1 Starter solenoid.
30A
85 — Not used.
86 – Not used.
87 2 Anti-lock brake system pump.
60A
1 M-type fuse.
2
J-type fuse.
Passenger Compartment Fuse Note:It may be easier to access the fuse
Panel panel if you remove the finish trim piece.
The fuse panel is located under the
instrument panel to the left of the steering
column.
256
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
