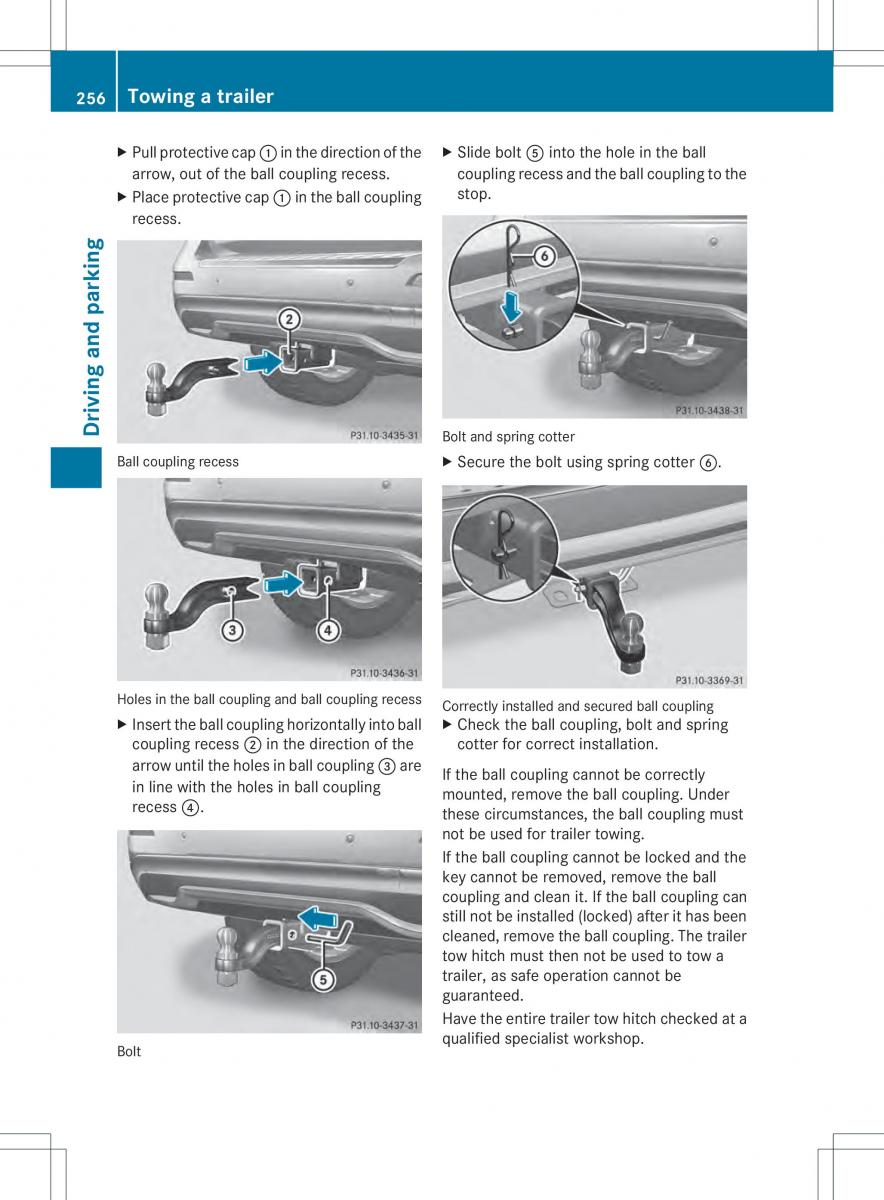

Towing at railer
256
X X
Pull protective cap : in the direction of the Slide bolt A into the hole in the ball
arrow, out of the ball coupling recess. coupling recess and the ball coupling to the
stop.
X
Place protective cap : in the ball coupling
recess.
ng
parki
d
an
ng
ivi
Dr
Bolt and spring cotter
Ball coupling recess X
Secure the bolt using spring cotter B.
Holes in the ball coupling and ball coupling recess
Correctly installed and secured ball coupling
X X
Inser tt he ball coupling horizontally into ball Check the ball coupling, bolt and spring
coupling recess ; in the direction of the cotter for correct installation.
arrow until the holes in ball coupling = are
If the ball coupling cannot be correctly
in line with the holes in ball coupling
mounted, remove the ball coupling. Under
recess ?.
these circumstances, the ball coupling must
not be used for trailer towing.
If the ball coupling cannot be locked and the
key cannot be removed, remove the ball
coupling and clean it. If the ball coupling can
still not be installed (locked) after it has been
cleaned, remove the ball coupling. The trailer
tow hitch must then not be used to tow a
trailer, as safe operation cannot be
guaranteed.
Have the entire trailer tow hitch checked at a
qualified specialist workshop.
Bolt
