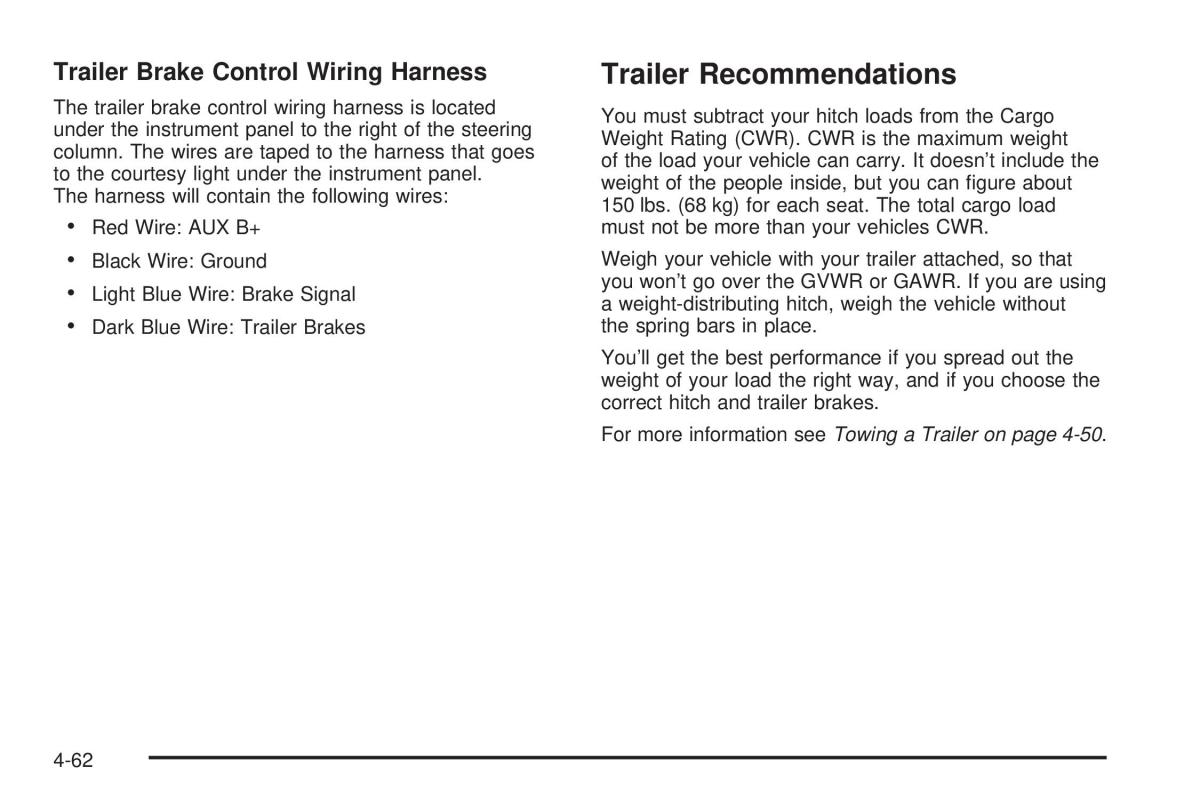

Trailer Brake Control Wiring HarnessTrailer Recommendations The trailer brake control wiring harness is locatedYou must subtract your hitch loads from the Cargo under the instrument panel to the right of the steeringWeight Rating (CWR). CWR is the maximum weight column. The wires are taped to the harness that goesof the load your vehicle can carry. It doesn’t include the to the courtesy light under the instrument panel.weight of the people inside, but you can ﬁgure about The harness will contain the following wires:150lbs. (68 kg) for each seat. The total cargo load • Red Wire: AUX B+ must not be more than your vehicles CWR. • Black Wire: Ground Weigh your vehicle with your trailer attached, so that • Light Blue Wire: Brake Signal you won’t go over the GVWR or GAWR. If you are using a weight-distributing hitch, weigh the vehicle without • Dark Blue Wire: Trailer Brakes the spring bars in place. You’ll get the best performance if you spread out the weight of your load the right way, and if you choose the correct hitch and trailer brakes. For more information see Towing a Trailer on page 4-50. 4-62
