text version of content this owner's manual page from owners manual to the vehicle Hummer H3, year of production 2005 - 2010:

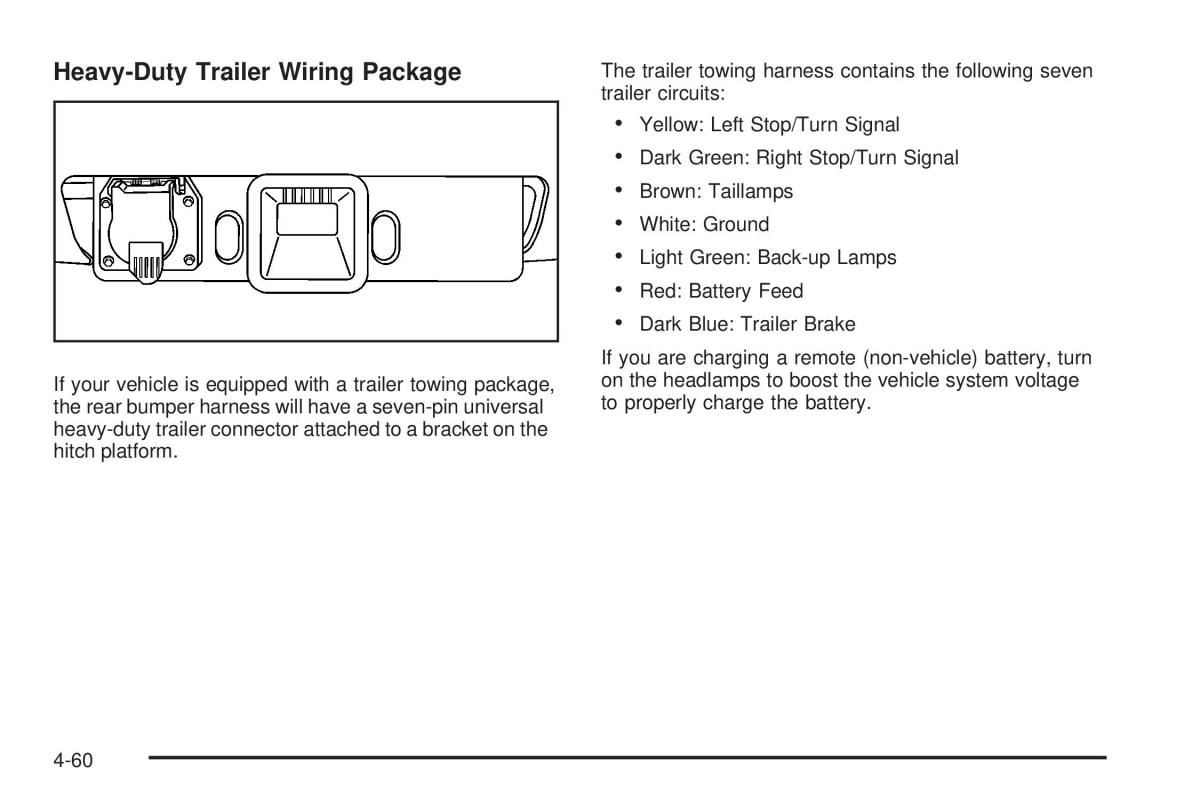

Heavy-Duty Trailer Wiring PackageThe trailer towing harness contains the following seven trailer circuits: • Yellow: Left Stop/Turn Signal • Dark Green: Right Stop/Turn Signal • Brown: Taillamps • White: Ground • Light Green: Back-up Lamps • Red: Battery Feed • Dark Blue: Trailer Brake If you are charging a remote (non-vehicle) battery, turn If your vehicle is equipped with a trailer towing package,on the headlamps to boost the vehicle system voltage the rear bumper harness will have a seven-pin universalto properly charge the battery. heavy-duty trailer connector attached to a bracket on the hitch platform. 4-60
