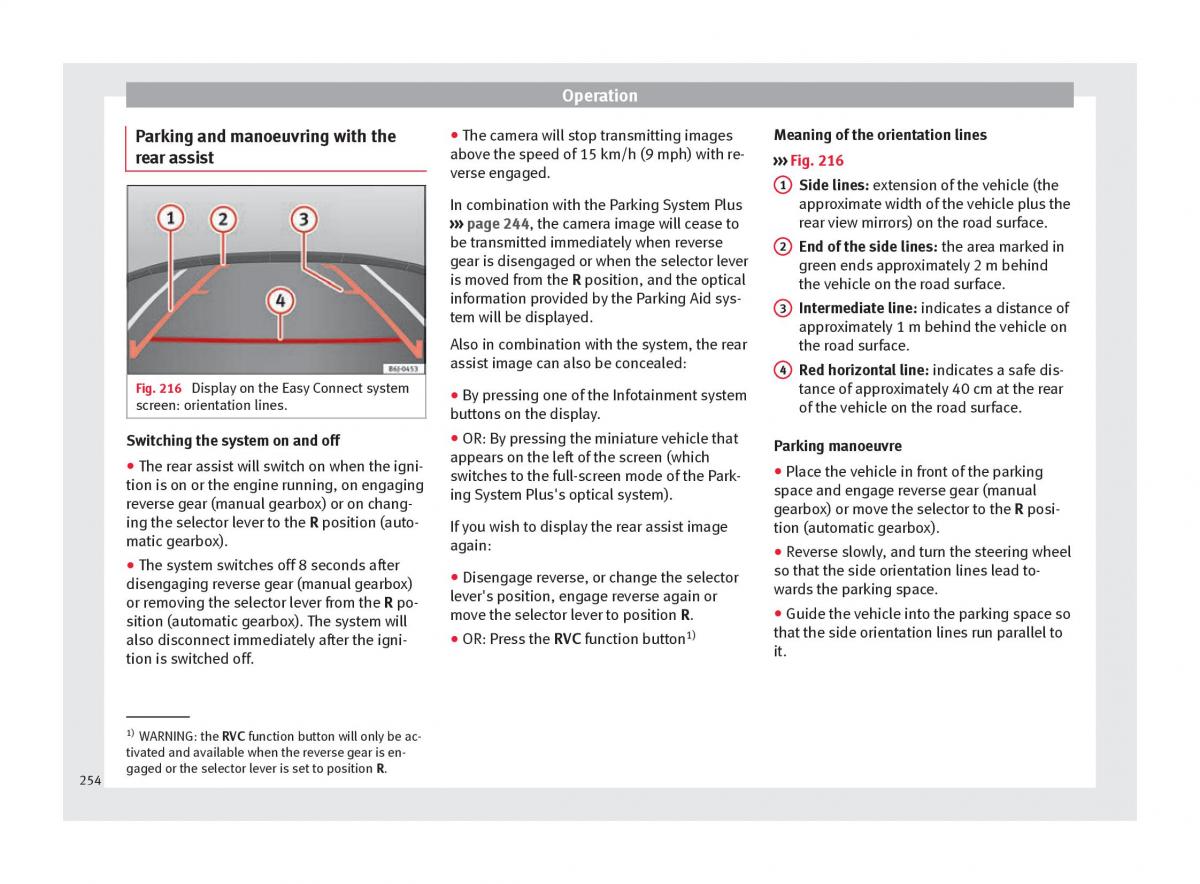

Operation ●The camera will stop transmitting images Meaning of the orientation lines Parking and manoeuvring with the above the speed of 15 km/h (9 mph) with re- rear assist ››› Fig. 216 verse engaged. 1 Side lines: extension of the vehicle (the In combination with the Parking System Plus approximate width of the vehicle plus the ››› page 244, the camera image will cease to rear view mirrors) on the road surface. be transmitted immediately when reverse 2 End of the side lines: the area marked in gear is disengaged or when the selector lever green ends approximately 2 m behind is moved from the R position, and the optical the vehicle on the road surface. information provided by the Parking Aid sys- 3 Intermediate line: indicates a distance of tem will be displayed. approximately 1 m behind the vehicle on Also in combination with the system, the rear the road surface. assist image can also be concealed: 4 Red horizontal line: indicates a safe dis- Fig. 216 Display on the Easy Connect system tance of approximately 40 cm at the rear ●By pressing one of the Infotainment system screen: orientation lines. of the vehicle on the road surface. buttons on the display. ●OR: By pressing the miniature vehicle that Switching the system on and off Parking manoeuvre appears on the left of the screen (which ●The rear assist will switch on when the igni- ●Place the vehicle in front of the parking switches to the full-screen mode of the Park- s on or the engine running, on engaging tion i space and engage reverse gear (manual ing System Plus's optical system). reverse gear (manual gearbox) or on chang- gearbox) or move the selector to the R posi- ing the selector lever to the R position (auto- If you wish to display the rear assist image tion (automatic gearbox). matic gearbox). again: ●Reverse slowly, and turn the steering wheel ●The system switches off 8 seconds after so that the side orientation lines lead to- ●Disengage reverse, or change the selector disengaging reverse gear (manual gearbox) wards the parking space. lever's position, engage reverse again or or removing the selector lever from the R po- ●Guide the vehicle into the parking space so move the selector lever to position R. sition (automatic gearbox). The system will 1) that the side orientation lines run parallel to ●OR: Press the RVC function button also disconnect immediately after the igni- it. tion is switched off. 1) WARNING: the RVC function button will only be ac- tivated and available when the reverse gear is en- gaged or the selector lever is set to position R. 254
