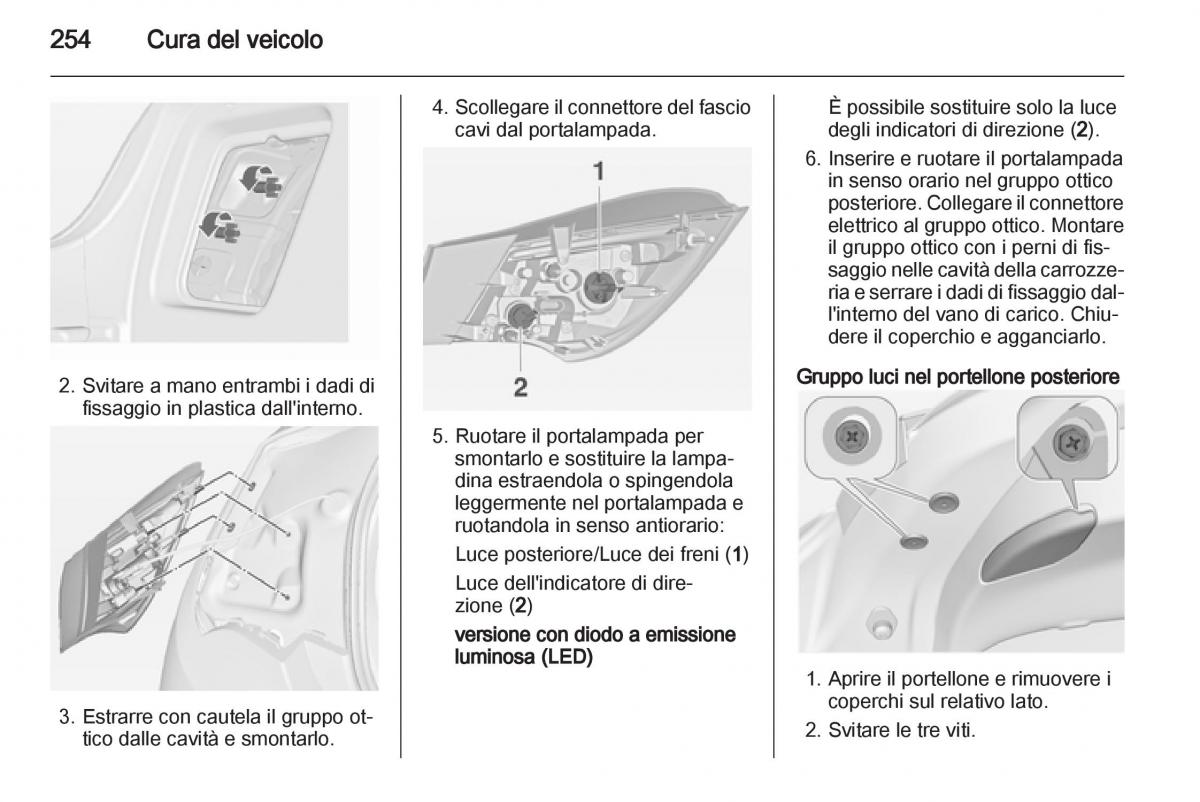

254 Cura del veicolo
4. Scollegare il connettore del fascioÈ possibile sostituire solo la luce
cavi dal portalampada.degli indicatori di direzione (2).
6. Inserire e ruotare il portalampada
in senso orario nel gruppo ottico
posteriore. Collegare il connettore
elettrico al gruppo ottico. Montare
il gruppo ottico con i perni di fis‐
saggio nelle cavità della carrozze‐
ria e serrare i dadi di fissaggio dal‐
l'interno del vano di carico. Chiu‐
dere il coperchio e agganciarlo.
Gruppo luci nel portellone posteriore
2. Svitare a mano entrambi i dadi di
fissaggio in plastica dall'interno.
5. Ruotare il portalampada per
smontarlo e sostituire la lampa‐
dina estraendola o spingendola
leggermente nel portalampada e
ruotandola in senso antiorario:
Luce posteriore/Luce dei freni (1)
Luce dell'indicatore di dire‐
zione (2)
versione con diodo a emissione
luminosa (LED)
1. Aprire il portellone e rimuovere i
coperchi sul relativo lato.
3. Estrarre con cautela il gruppo ot‐
2. Svitare le tre viti.
tico dalle cavità e smontarlo.
