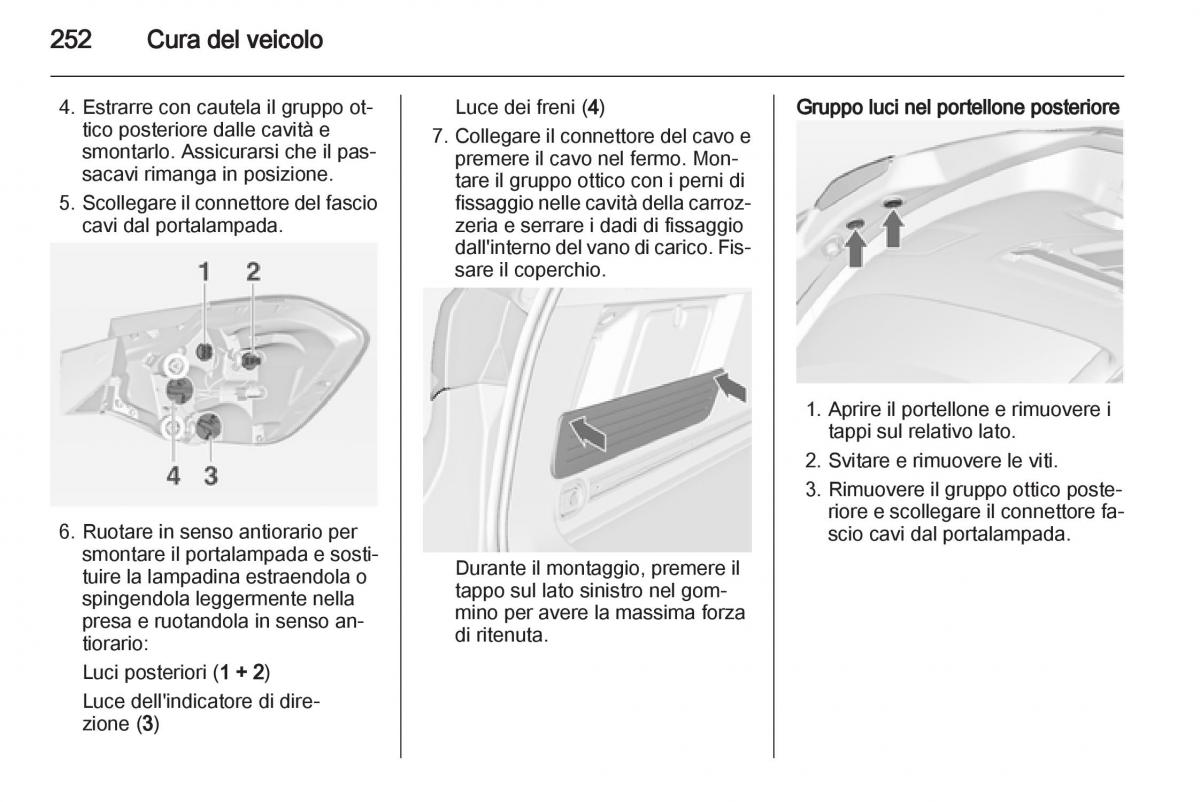

252 Cura del veicolo
4. Estrarre con cautela il gruppo ot‐Luce dei freni (4)Gruppo luci nel portellone posteriore
tico posteriore dalle cavità e
7. Collegare il connettore del cavo e
smontarlo. Assicurarsi che il pas‐
premere il cavo nel fermo. Mon‐
sacavi rimanga in posizione.
tare il gruppo ottico con i perni di
5. Scollegare il connettore del fasciofissaggio nelle cavità della carroz‐
cavi dal portalampada.zeria e serrare i dadi di fissaggio
dall'interno del vano di carico. Fis‐
sare il coperchio.
1. Aprire il portellone e rimuovere i
tappi sul relativo lato.
2. Svitare e rimuovere le viti.
3. Rimuovere il gruppo ottico poste‐
riore e scollegare il connettore fa‐
6. Ruotare in senso antiorario per scio cavi dal portalampada.
smontare il portalampada e sosti‐
Durante il montaggio, premere il
tuire la lampadina estraendola o
tappo sul lato sinistro nel gom‐
spingendola leggermente nella
mino per avere la massima forza
presa e ruotandola in senso an‐
di ritenuta.
tiorario:
Luci posteriori (1 + 2)
Luce dell'indicatore di dire‐
zione (3)
