text version of content this owner's manual page from owners manual to the vehicle Ford Edge, year of production 2014:

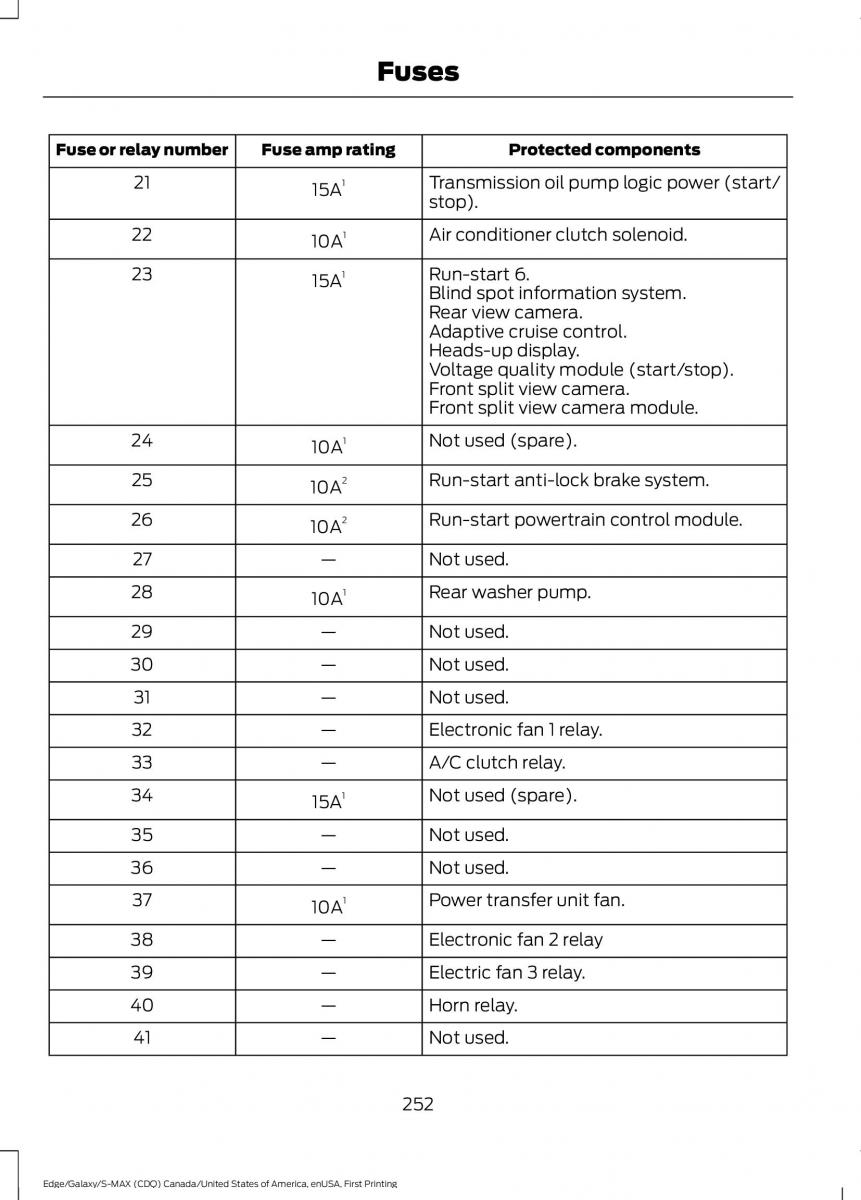

Fuses
Fuse or relay number Fuse amp rating Protected components
21 1 Transmission oil pump logic power (start/
15A stop).
22 1 Air conditioner clutch solenoid.
10A
23 1 Run-start 6.
15A Blind spot information system.
Rear view camera.
Adaptive cruise control.
Heads-up display.
Voltage quality module (start/stop).
Front split view camera.
Front split view camera module.
24 1 Not used (spare).
10A
25 10A2 Run-start anti-lock brake system.
26 10A2 Run-start powertrain control module.
27 — Not used.
28 1 Rear washer pump.
10A
29 — Not used.
30 — Not used.
31 — Not used.
32 — Electronic fan 1 relay.
33 — A/C clutch relay.
34 1 Not used (spare).
15A
35 — Not used.
36 — Not used.
37 1 Power transfer unit fan.
10A
38 — Electronic fan 2 relay
39 — Electric fan 3 relay.
40 — Horn relay.
41 — Not used.
252
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
