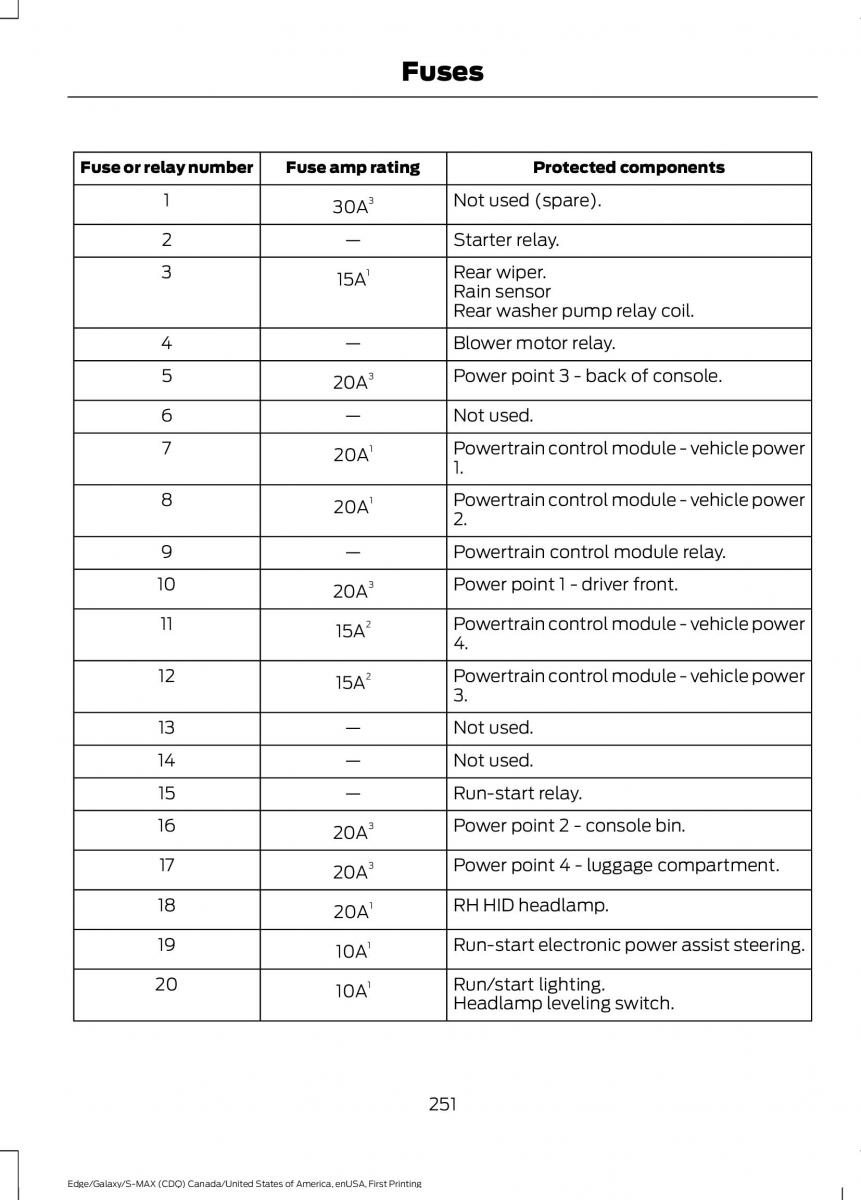

Fuses
Fuse or relay number Fuse amp rating Protected components
1 3 Not used (spare).
30A
2 — Starter relay.
3 15A1 Rear wiper.
Rain sensor
Rear washer pump relay coil.
4 — Blower motor relay.
5 20A3 Power point 3 - back of console.
6 — Not used.
7 20A1 Powertrain control module - vehicle power
1.
8 20A1 Powertrain control module - vehicle power
2.
9 — Powertrain control module relay.
10 20A3 Power point 1 - driver front.
11 2 Powertrain control module - vehicle power
15A 4.
12 2 Powertrain control module - vehicle power
15A 3.
13 — Not used.
14 — Not used.
15 — Run-start relay.
16 20A3 Power point 2 - console bin.
17 20A3 Power point 4 - luggage compartment.
18 20A1 RH HID headlamp.
19 10A1 Run-start electronic power assist steering.
20 10A1 Run/start lighting.
Headlamp leveling switch.
251
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
