from owners manual to the vehicle Hyundai i10, year of production 2007 - 2013:
What to do in an emergency
7. Pressure gauge for displaying the
tire inflation pressure
8. Button for reducing tire inflation
pressure
9. Hose to connect compressor and
sealant bottle or compressor and
wheel
Connectors, cable and connection
hose are stored in the compressor
housing.
WARNING
Before using the TireMobilityKit,
follow the instructions on the
sealant bottle.
Remove the label with the speed
restriction from the sealant bottle
and apply it to the steering wheel.
OAM060015L Please note the expiry date on the

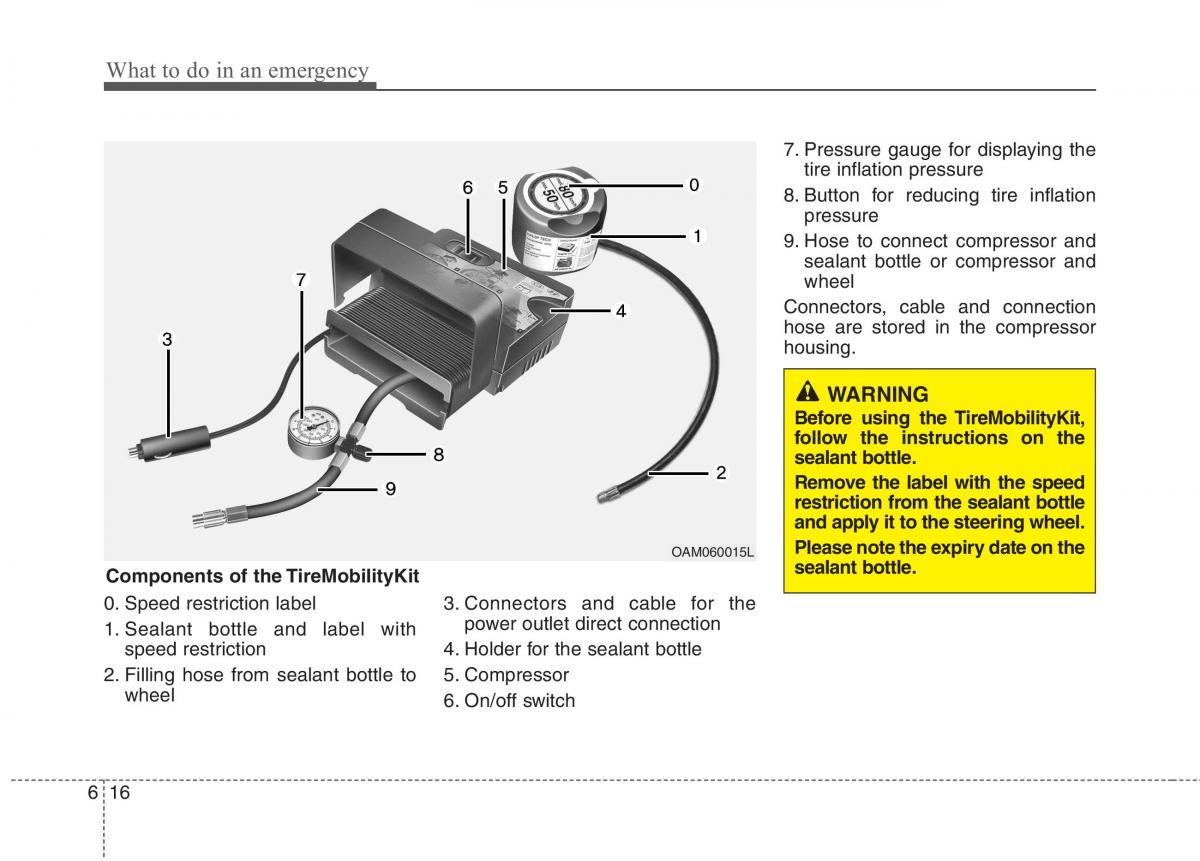

Components of the TireMobilityKit sealant bottle.
0. Speed restriction label 3. Connectors and cable for the
power outlet direct connection
1. Sealant bottle and label with
speed restriction 4. Holder for the sealant bottle
2. Filling hose from sealant bottle to5. Compressor
wheel 6. On/off switch
6 16
