text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

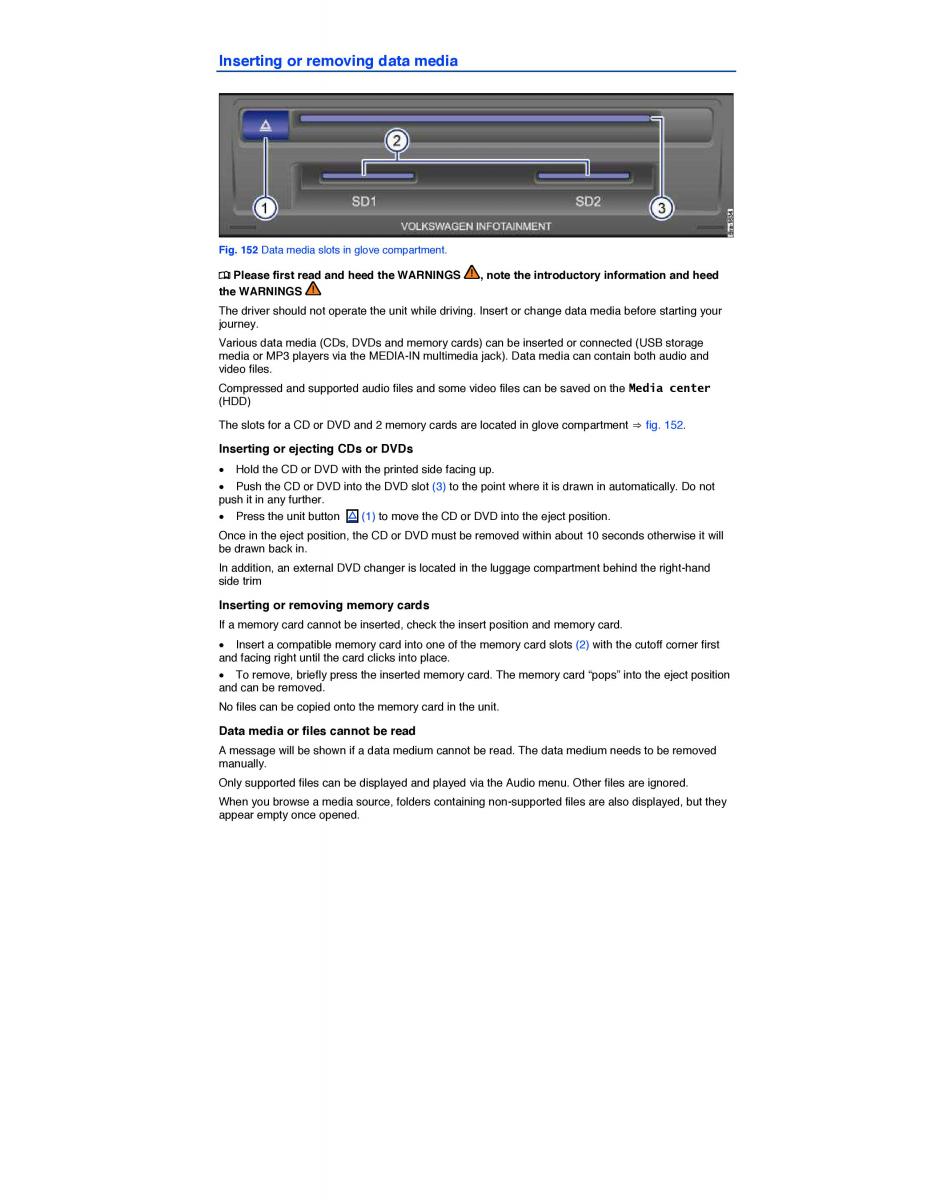

Inserting or removing data media Fig. 152 Data media slots in glove compartment. ¤ Please first read and heed the WARNINGS , note the introductory information and heed the WARNINGS The driver should not operate the unit while driving. Insert or change data media before starting your journey. Various data media (CDs, DVDs and memory cards) can be inserted or connected (USB storage media or MP3 players via the MEDIA-IN multimedia jack). Data media can contain both audio and video files. Compressed and supported audio files and some video files can be saved on the Media center (HDD) The slots for a CD or DVD and 2 memory cards are located in glove compartment ⇒ fig. 152. Inserting or ejecting CDs or DVDs x Hold the CD or DVD with the printed side facing up. x Push the CD or DVD into the DVD slo(3)t to the point where it is drawn in automatically. Do not push it in any further. x Press the unit button ¦ (1) to move the CD or DVD into the eject position. Once in the eject position, the CD or DVD must be removed within about 10 seconds otherwise it will be drawn back in. In addition, an external DVD changer is located in the luggage compartment behind the right-hand side trim Inserting or removing memory cards If a memory card cannot be inserted, check the insert position and memory card. x Insert a compatible memory card into one of the memory card slot(2s ) with the cutoff corner first and facing right until the card clicks into place. x To remove, briefly press the inserted memory card. The memory card “pops” into the eject position and can be removed. No files can be copied onto the memory card in the unit. Data media or files cannot be read A message will be shown if a data medium cannot be read. The data medium needs to be removed manually. Only supported files can be displayed and played via the Audio menu. Other files are ignored. When you browse a media source, folders containing non-supported files are also displayed, but they appear empty once opened.
