text version of content this owner's manual page from owners manual to the vehicle Mercedes SL, year of production 1989 - 2001:

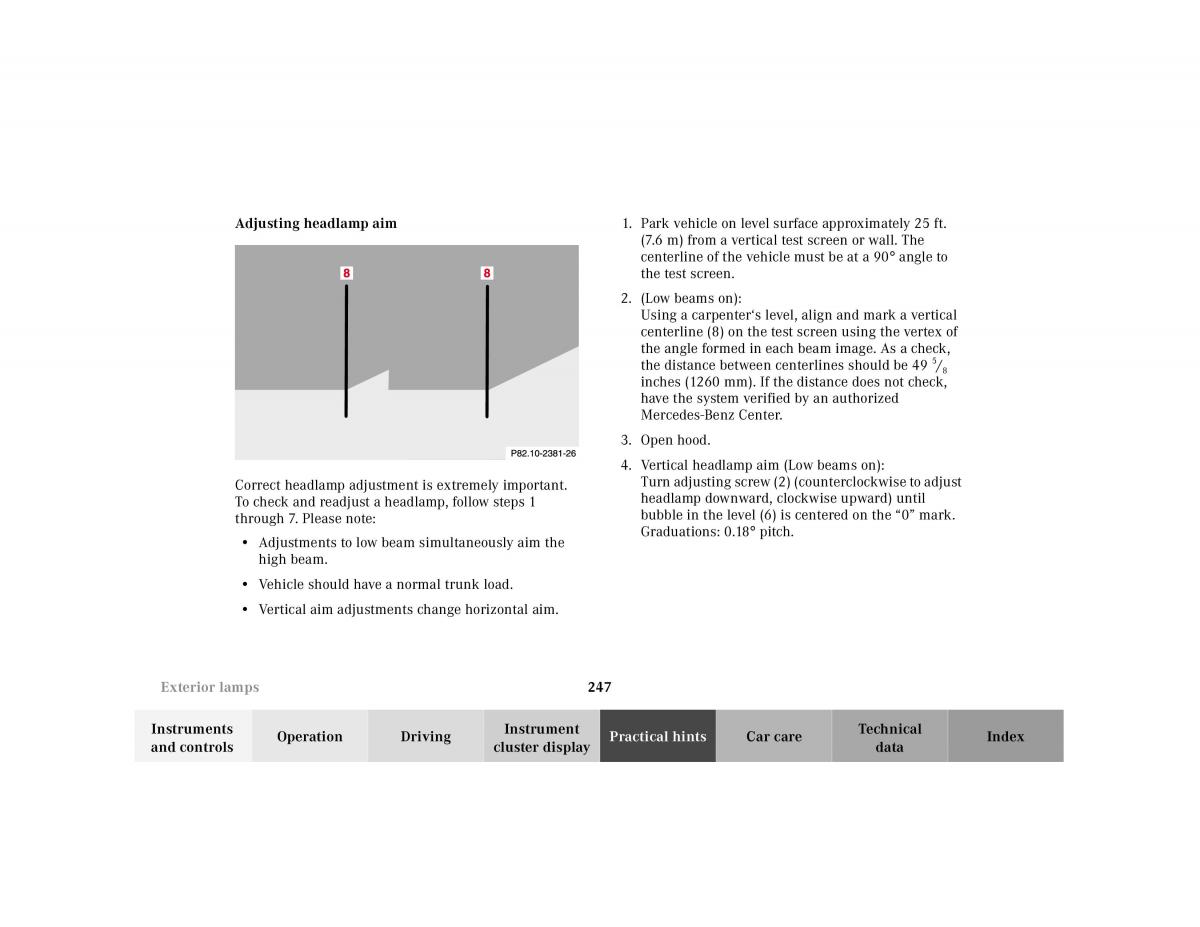

Adjusting headlamp aim 1. Park vehicle on level surface approximately 25 ft. (7.6 m) from a vertical test screen or wall. The centerline of the vehicle must be at a 90° angle to the test screen. 2. (Low beams on): Using a carpenter‘s level, align and mark a vertical centerline (8) on the test screen using the vertex of the angle formed in each beam image. As a check, 5 the distance between centerlines should be 49 / 8 inches (1260 mm). If the distance does not check, have the system verified by an authorized Mercedes-Benz Center. 3. Open hood. 4. Vertical headlamp aim (Low beams on): Correct headlamp adjustment is extremely important. Turn adjusting screw (2) (counterclockwise to adjust To check and readjust a headlamp, follow steps 1 headlamp downward, clockwise upward) until through 7. Please note: bubble in the level (6) is centered on the “0” mark. • Adjustments to low beam simultaneously aim the Graduations: 0.18° pitch. high beam. • Vehicle should have a normal trunk load. • Vertical aim adjustments change horizontal aim. Exterior lamps 247 Instruments Operation Driving Instrument Practical hints Car care Technical Index and controls cluster display data
