text version of content this owner's manual page from owners manual to the vehicle Mercedes SL, year of production 1989 - 2001:

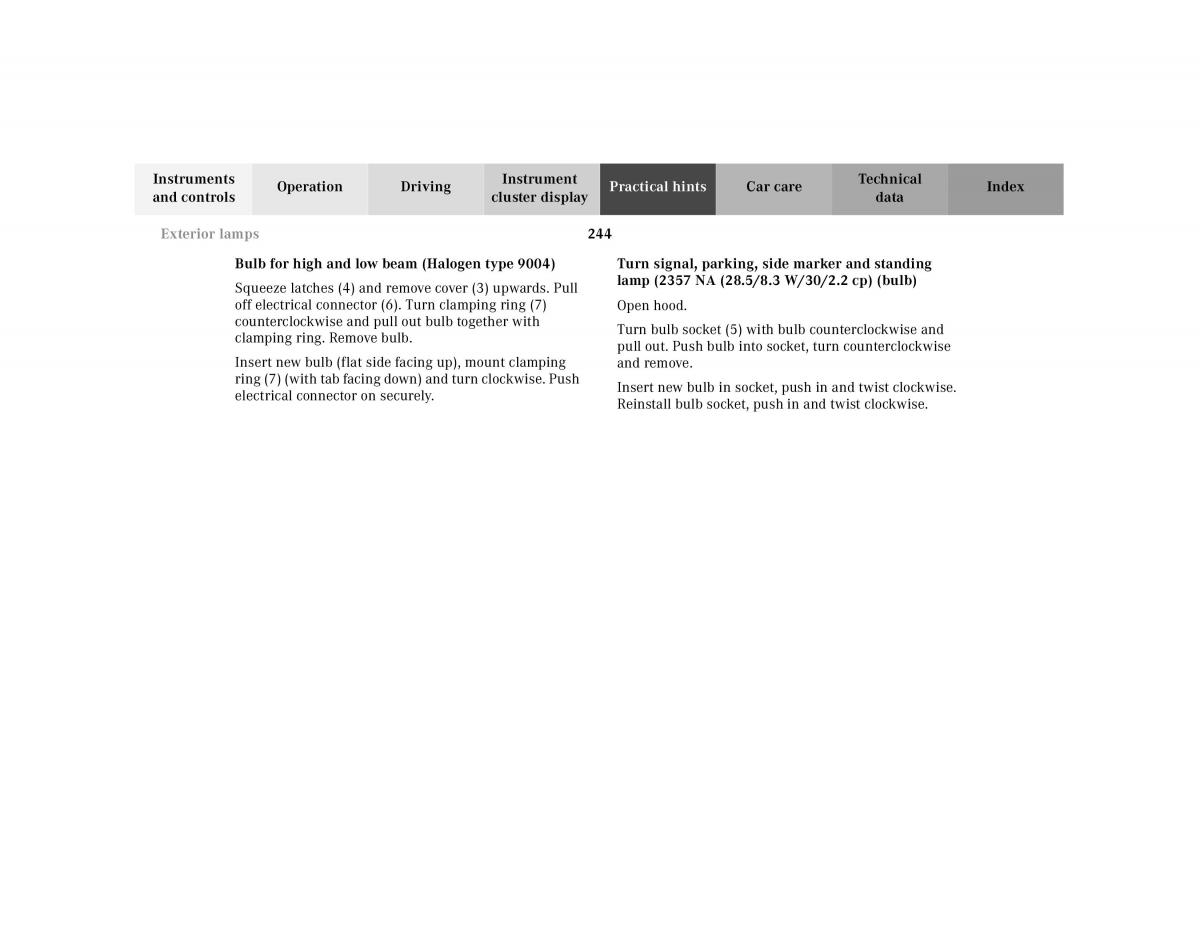

Instruments OperationDrivingInstrument Practical hintsCar careTechnicalIndex and controls cluster display data Exterior lamps 244 Bulb for high and low beam (Halogen type 9004)Turn signal, parking, side marker and standing Squeeze latches (4) and remove cover (3) upwards. Pull lamp (2357 NA (28.5/8.3 W/30/2.2 cp) (bulb) off electrical connector (6). Turn clamping ring (7) Open hood. counterclockwise and pull out bulb together with Turn bulb socket (5) with bulb counterclockwise and clamping ring. Remove bulb. pull out. Push bulb into socket, turn counterclockwise Insert new bulb (flat side facing up), mount clamping and remove. ring (7) (with tab facing down) and turn clockwise. Push Insert new bulb in socket, push in and twist clockwise. electrical connector on securely.Reinstall bulb socket, push in and twist clockwise.
