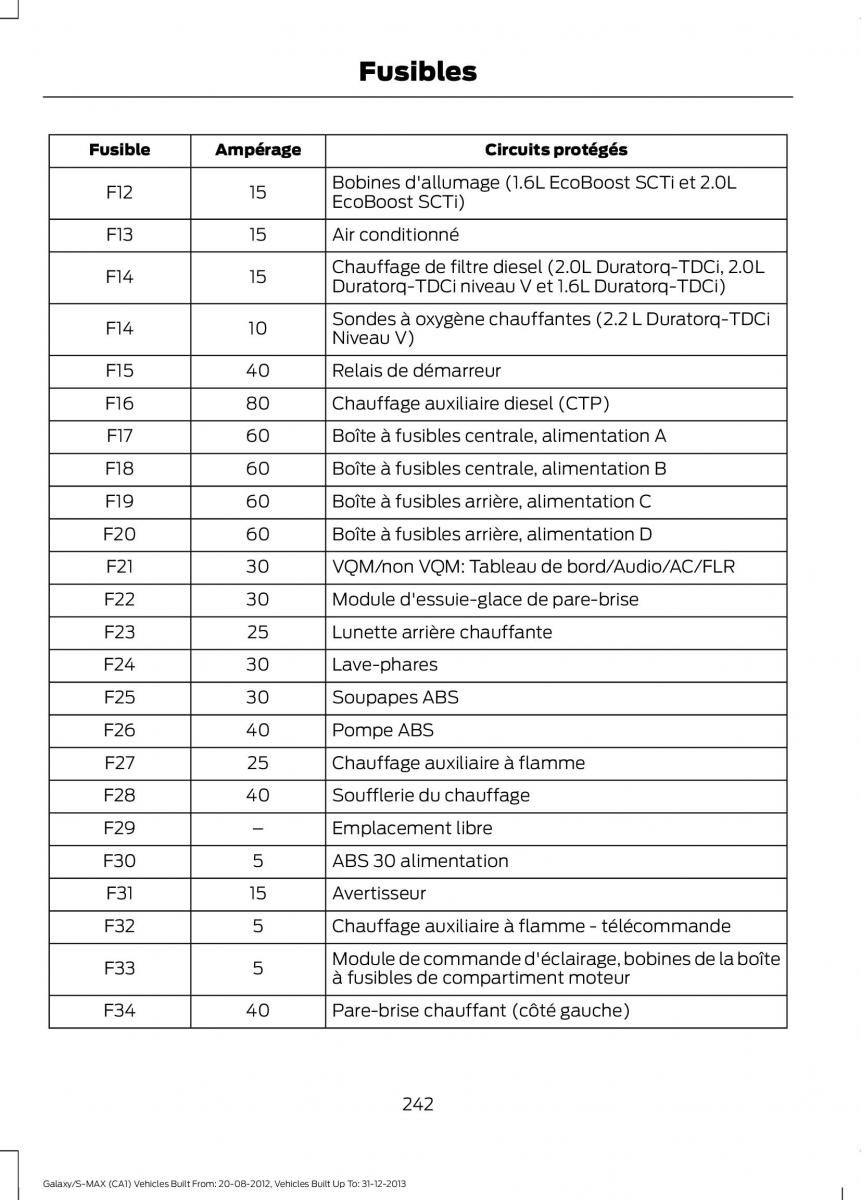

Fusibles
Fusible Ampérage Circuits protégés
F12 15 Bobines d'allumage (1.6L EcoBoost SCTi et 2.0L
EcoBoost SCTi)
F13 15 Air conditionné
F14 15 Chauffage de filtre diesel (2.0L Duratorq-TDCi, 2.0L
Duratorq-TDCi niveau V et 1.6L Duratorq-TDCi)
F14 10 Sondes à oxygène chauffantes (2.2 L Duratorq-TDCi
Niveau V)
F15 40 Relais de démarreur
F16 80 Chauffage auxiliaire diesel (CTP)
F17 60 Boîte à fusibles centrale, alimentation A
F18 60 Boîte à fusibles centrale, alimentation B
F19 60 Boîte à fusibles arrière, alimentation C
F20 60 Boîte à fusibles arrière, alimentation D
F21 30 VQM/non VQM: Tableau de bord/Audio/AC/FLR
F22 30 Module d'essuie-glace de pare-brise
F23 25 Lunette arrière chauffante
F24 30 Lave-phares
F25 30 Soupapes ABS
F26 40 Pompe ABS
F27 25 Chauffage auxiliaire à flamme
F28 40 Soufflerie du chauffage
F29 – Emplacement libre
F30 5 ABS 30 alimentation
F31 15 Avertisseur
F32 5 Chauffage auxiliaire à flamme - télécommande
F33 5 Module de c ommande d'éclairage, bobine s de l a boîte
à fusibles de compartiment moteur
F34 40 Pare-brise chauffant (côté gauche)
242
Galaxy/S-MAX (CA1) Vehicles Built From: 20-08-2012, Vehicles Built Up To: 31-12-2013
