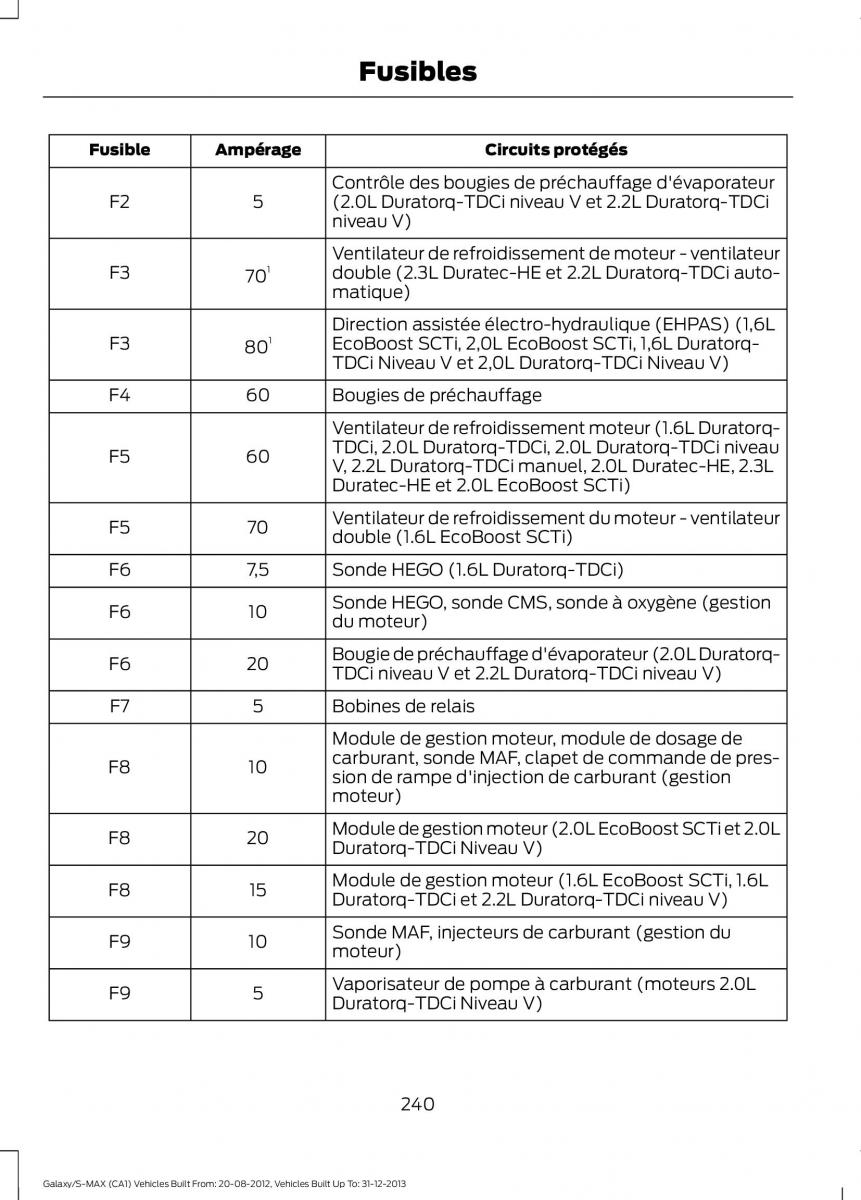

Fusibles
Fusible Ampérage Circuits protégés
Contrôle des bougies de préchauffage d'évaporateur
F2 5 (2.0L Duratorq-TDCi niveau V et 2.2L Duratorq-TDCi
niveau V)
Ventilateur de refroidissement de mot eur - ventilateur
F3 701 double (2.3L Duratec-HE et 2.2L Duratorq-TDCi auto-
matique)
Direction assistée électro-hydraulique (EHPAS) (1,6L
F3 1 EcoBoost SCTi, 2,0L EcoBoost SCTi, 1,6L Duratorq-
80 TDCi Niveau V et 2,0L Duratorq-TDCi Niveau V)
F4 60 Bougies de préchauffage
Ventilateur de refroidissement moteur (1.6L Duratorq-
F5 60 TDCi, 2.0L Duratorq-TDCi, 2.0L Duratorq-TDCi niveau
V, 2.2L Duratorq-TDCi manuel, 2.0L Duratec-HE, 2.3L
Duratec-HE et 2.0L EcoBoost SCTi)
F5 70 Ventilateur de refroidissement du mot eur - ventilateur
double (1.6L EcoBoost SCTi)
F6 7,5 Sonde HEGO (1.6L Duratorq-TDCi)
F6 10 Sonde HEGO, sonde CMS, sonde à oxygène (gestion
du moteur)
F6 20 Bougie de pr échauffage d'évaporateur (2.0L Dur atorq-
TDCi niveau V et 2.2L Duratorq-TDCi niveau V)
F7 5 Bobines de relais
Module de gestion moteur, module de dosage de
F8 10 carburant, sonde MAF, clapet de commande de pres-
sion de rampe d'injection de carburant (gestion
moteur)
F8 20 Module de g estion mot eur (2.0L EcoBoost SCTi et 2.0L
Duratorq-TDCi Niveau V)
F8 15 Module de gestion moteur (1.6L EcoBoost SCTi, 1.6L
Duratorq-TDCi et 2.2L Duratorq-TDCi niveau V)
F9 10 Sonde MAF, injecteurs de carburant (gestion du
moteur)
F9 5 Vaporisateur de pompe à carburant (moteurs 2.0L
Duratorq-TDCi Niveau V)
240
Galaxy/S-MAX (CA1) Vehicles Built From: 20-08-2012, Vehicles Built Up To: 31-12-2013
