text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

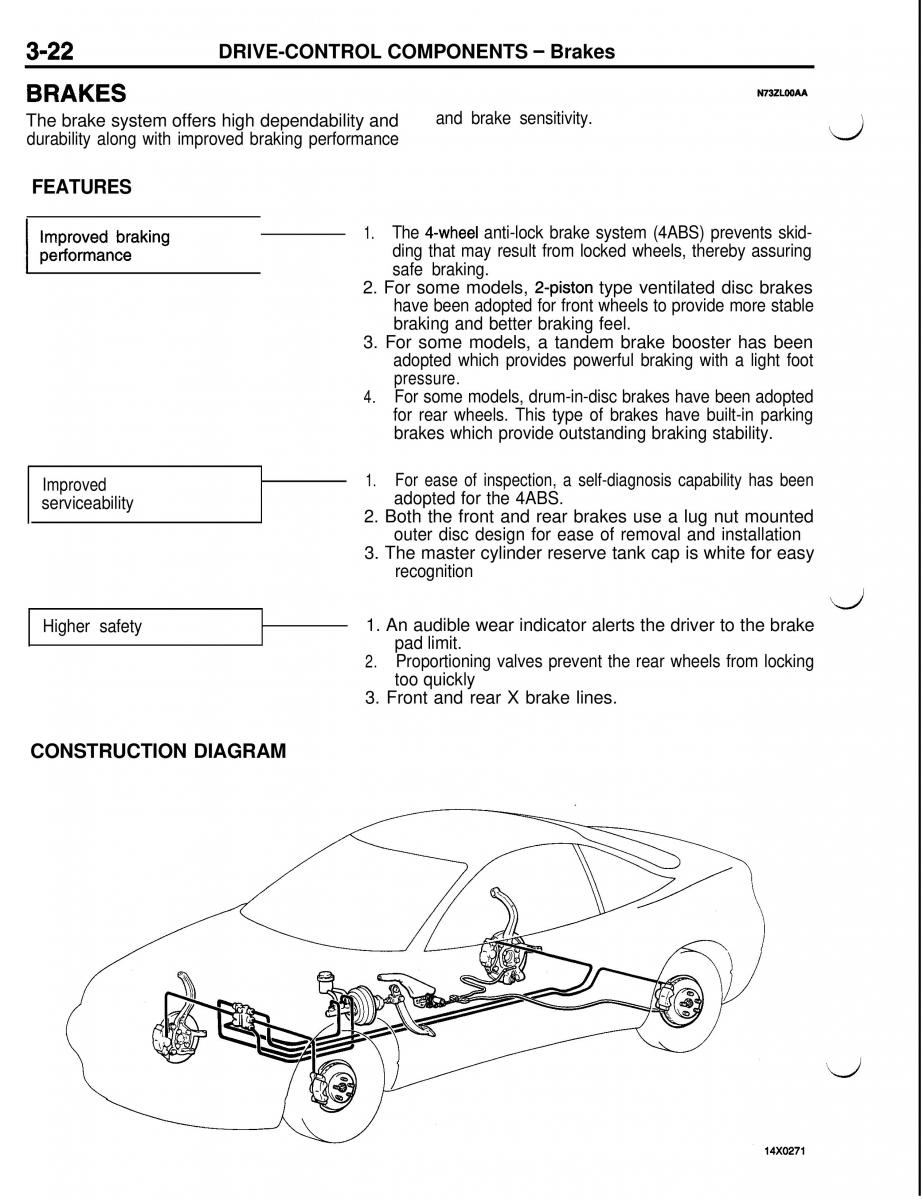

DRIVE-CONTROL COMPONENTS - Brakes 3-22 BRAKES N73ZLOOAA The brake system offers high dependability and and brake sensitivity. d durability along with improved braking performance FEATURES /1 bm,mrov&b~king 1. The 4-wheel anti-lock brake system (4ABS) prevents skid- ding that may result from locked wheels, thereby assuring safe braking. 2. For some models, 2-piston type ventilated disc brakes have been adopted for front wheels to provide more stable braking and better braking feel. 3. For some models, a tandem brake booster has been adopted which provides powerful braking with a light foot pressure. 4. For some models, drum-in-disc brakes have been adopted for rear wheels. This type of brakes have built-in parking brakes which provide outstanding braking stability. Improved 1. For ease of inspection, a self-diagnosis capability has been serviceability adopted for the 4ABS. 2. Both the front and rear brakes use a lug nut mounted outer disc design for ease of removal and installation 3. The master cylinder reserve tank cap is white for easy recognition d Higher safety 1. An audible wear indicator alerts the driver to the brake pad limit. 2. Proportioning valves prevent the rear wheels from locking too quickly 3. Front and rear X brake lines. CONSTRUCTION DIAGRAM 14X0271
