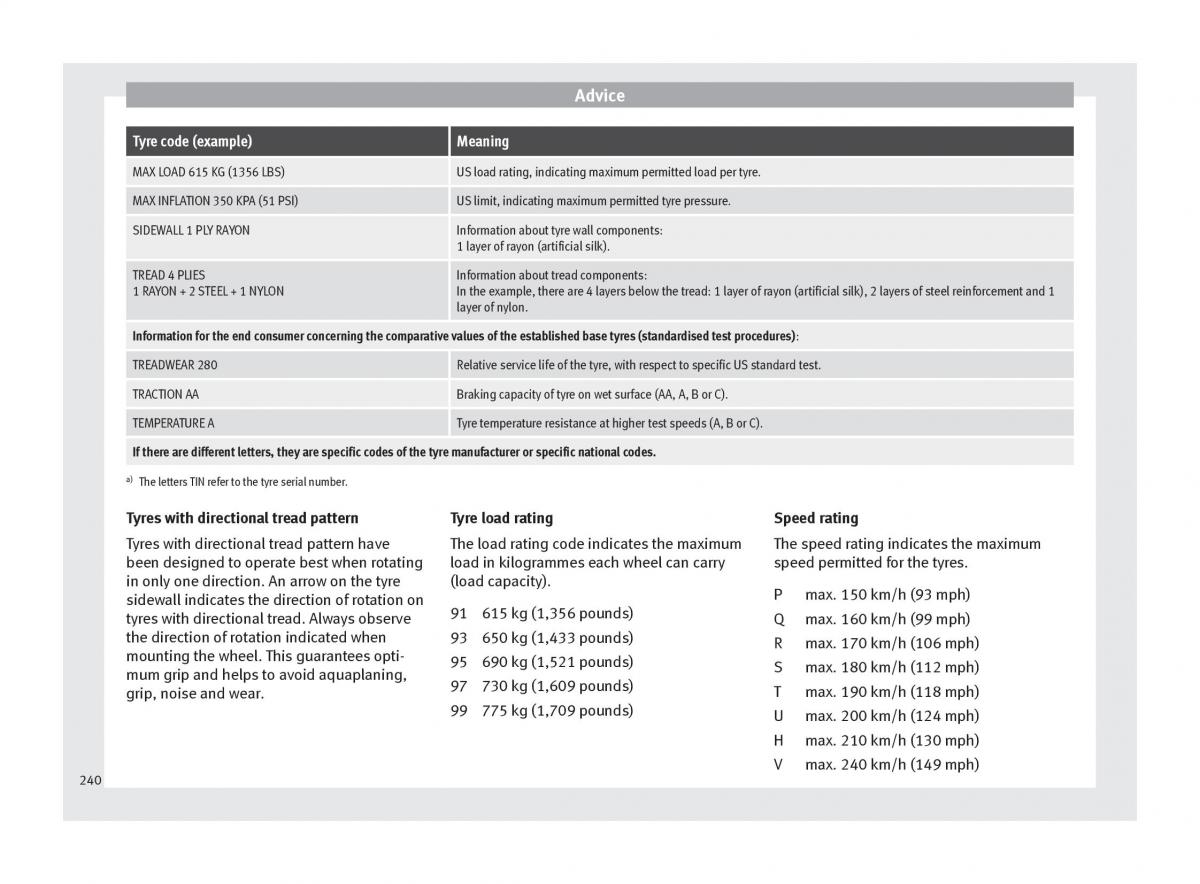

Advice
Tyre code (example) Meaning
MAX LOAD 615 KG (1356 LBS) US load rating, indicating maximum permitted load per tyre.
MAX INFLATION 350 KPA (51 PSI) US limit, indicating maximum permitted tyre pressure.
SIDEWALL 1 PLY RAYON Information about tyre wall components:
1 layer of rayon (artificial silk).
TREAD 4 PLIES Information about tread components:
1 RAYON + 2 STEEL + 1 NYLON In the example, there are 4 layers below the tread: 1 layer of rayon (artificial silk), 2 layers of steel reinforcement and 1
layer of nylon.
Information for the end consumer concerning the comparative values of the established base tyres (standardised test procedures):
TREADWEAR 280 Relative service life of the tyre, with respect to specific US standard test.
TRACTION AA Braking capacity of tyre on wet surface (AA, A, B or C).
TEMPERATURE A Tyre temperature resistance at higher test speeds (A, B or C).
If there are different letters, they are specific codes of the tyre manufacturer or specific national codes.
a)
The letters TIN refer to the tyre serial number.
Tyres with directional tread pattern Tyre load rating Speed rating
Tyres with directional tread pattern have The load rating code indicates the maximum The speed rating indicates the maximum
been designed to operate best when rotating load in kilogrammes each wheel can carry speed permitted for the tyres.
in only one direction. An arrow on the tyre (load capacity).
P max. 150 km/h (93 mph)
sidewall indicates the direction of rotation on
91 615 kg (1,356 pounds)
tyres with directional tread. Always observe Q max. 160 km/h (99 mph)
the direction of rotation indicated when 93 650 kg (1,433 pounds)
R max. 170 km/h (106 mph)
mounting the wheel. This guarantees opti-
95 690 kg (1,521 pounds)
S max. 180 km/h (112 mph)
mum grip and helps to avoid aquaplaning,
97 730 kg (1,609 pounds)
grip, noise and wear. T max. 190 km/h (118 mph)
99 775 kg (1,709 pounds)
U max. 200 km/h (124 mph)
H max. 210 km/h (130 mph)
V max. 240 km/h (149 mph)
240
