Towing a trailer 237
– Also check the shaft section of the ball joint and its asso-The ball joint can only be installed if the internal spring mechanism
ciated mechanical parts to make sure they are clean and is in the ready position.
undamaged. Continued ⇒page237, “Fitting the ball joint (step 3)”.
Continued ⇒page237, “Fitting the ball joint (step 2)”.
Applies to vehicles: with removable towing bracket
WARNING Fitting the ball joint (step 3)
It is important to keep the mounting fixture clean. Otherwise the
ball joint may fail to engage securely (accident risk).
Applies to vehicles: with removable towing bracket

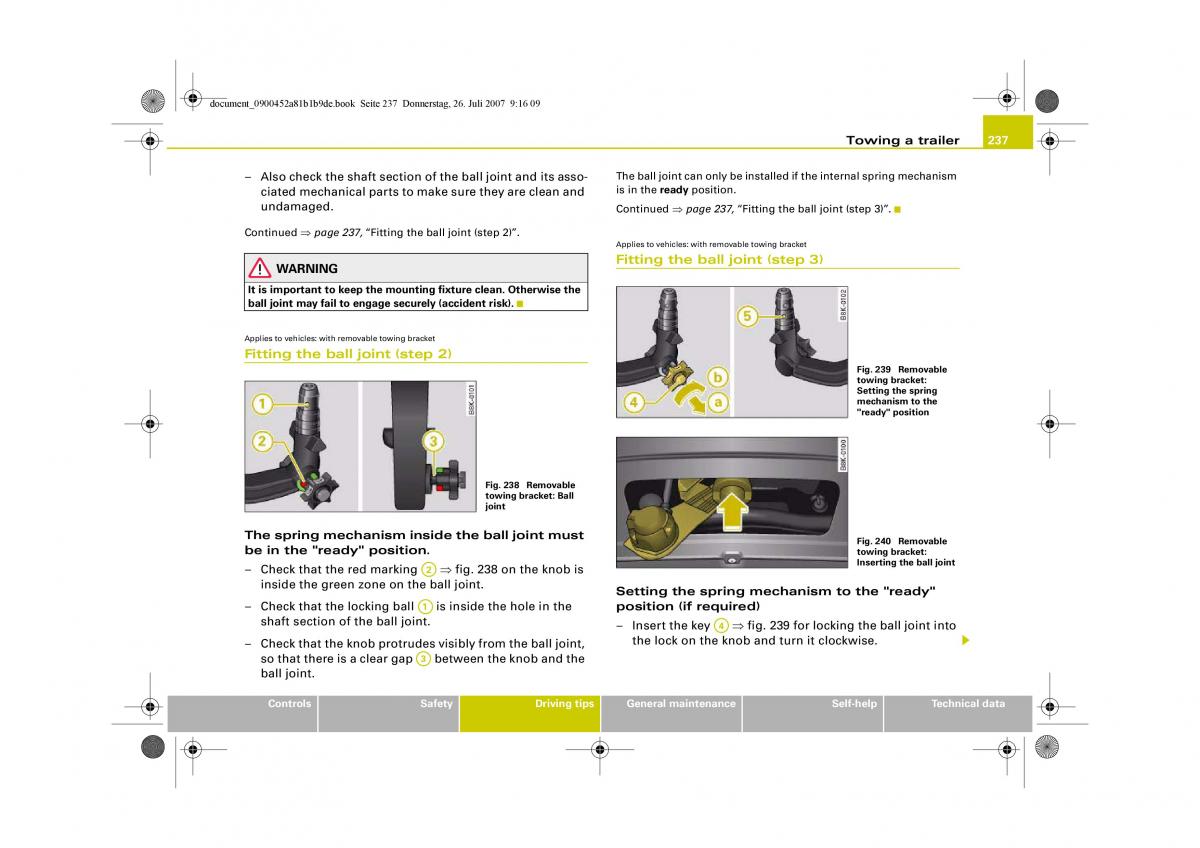

Fitting the ball joint (step 2)
Fig. 239 Removable
towing bracket:
Setting the spring
mechanism to the
"ready" position
Fig. 238 Removable
towing bracket: Ball
joint
The spring mechanism inside the ball joint must Fig. 240 Removable
be in the "ready" position. towing bracket:
– Check that the red marking 2 ⇒ fig. 238 on the knob is Inserting the ball joint
A
inside the green zone on the ball joint. Setting the spring mechanism to the "ready"
– Check that the locking ball 1 is inside the hole in the position (if required)
A
shaft section of the ball joint. – Insert the key 4 ⇒ fig. 239 for locking the ball joint into
A
– Check that the knob protrudes visibly from the ball joint, the lock on the knob and turn it clockwise.
3
so that there is a clear gap A between the knob and the
ball joint.
