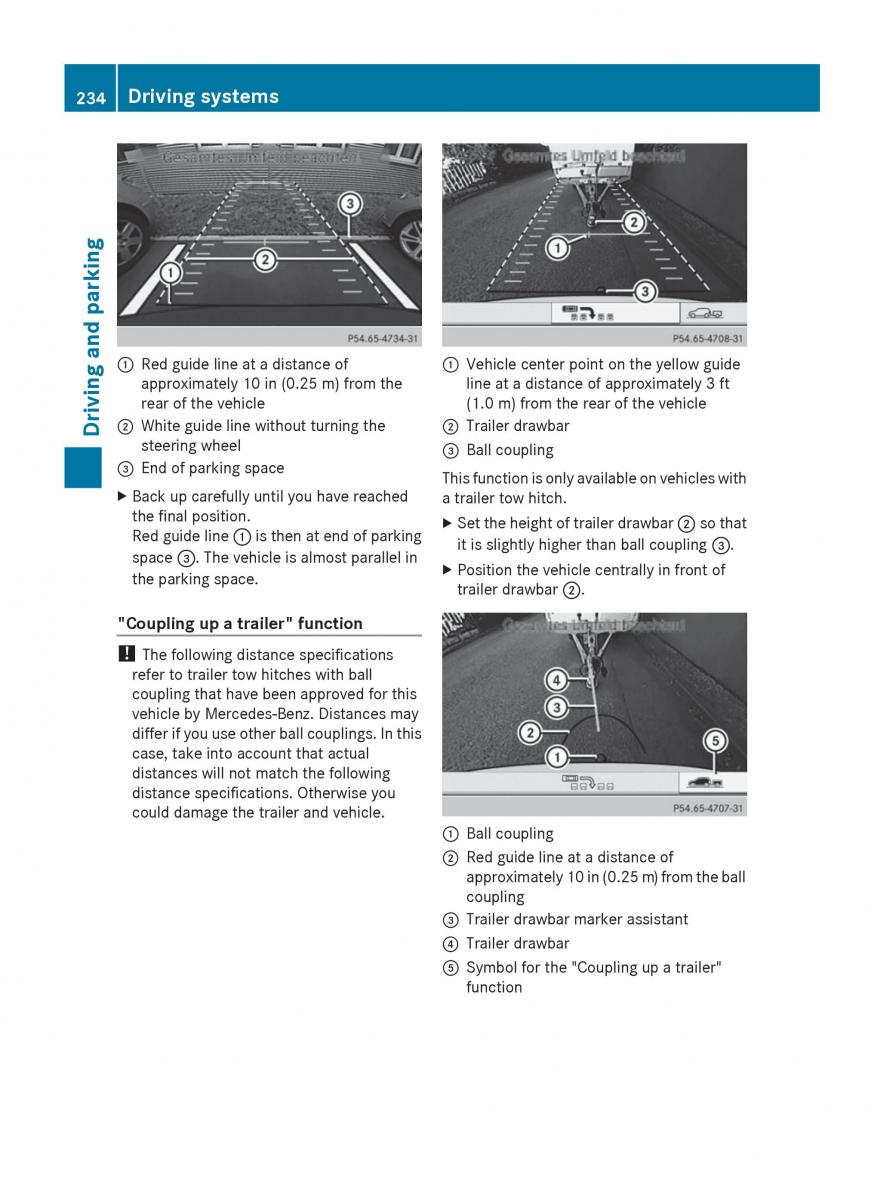

234 Driving systems
parking
and
:Redguidelineatadistanceof :Vehiclecenterpoint on the yellow guide
approximately 10 in (0.25 m) from theline at a distance of approximately 3 ft
ing
rear of the vehicle (1.0 m) from the rear of the vehicle
;Whiteguidelinewithoutturning the;Trailer drawbar
Driv
steering wheel
=Ballcoupling
=Endofparkingspace
Thisfunctionisonlyavailableonvehicleswith
XBackupcarefully until you have reached
a trailer tow hitch.
the final position.
XSettheheightoftrailerdrawbar;sothat
Redguideline:isthenatendofparking
it is slightly higher than ball coupling =.
space =. The vehicle is almost parallel in
XPosition the vehicle centrally in front of
the parking space.
trailer drawbar ;.
"Coupling up a trailer" function
!Thefollowingdistance specifications
refer to trailer tow hitches with ball
coupling that have been approved for this
vehicle by Mercedes-Benz. Distances may
differ if you use other ball couplings. In this
case, take into account that actual
distances will not match the following
distance specifications. Otherwise you
could damage the trailer and vehicle.
:Ballcoupling
;Redguidelineatadistanceof
approximately10in(0.25m) fromtheball
coupling
=Trailer drawbar marker assistant
?Trailer drawbar
ASymbolforthe"Couplingupatrailer"
function
