text version of content this owner's manual page from owners manual to the vehicle Mercedes GL, year of production 2012:

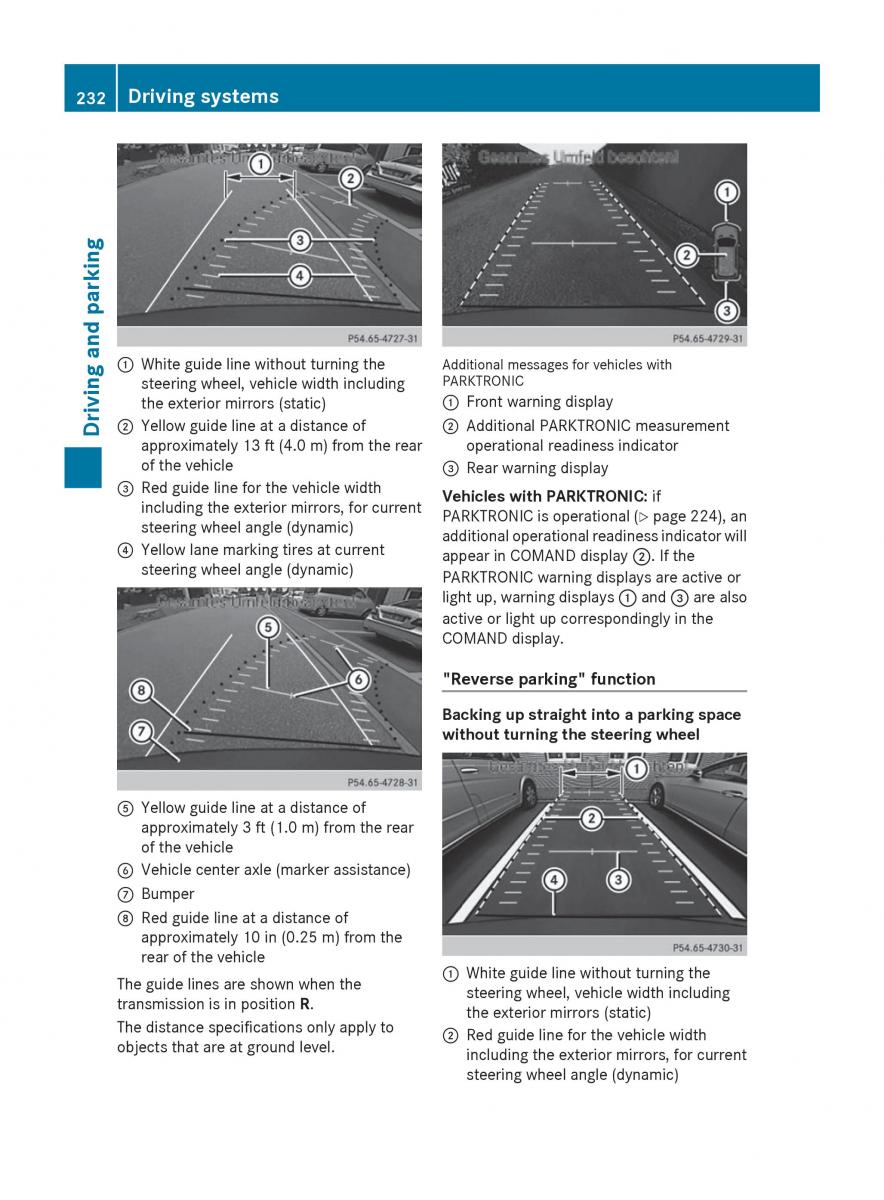

232 Driving systems
parking
and
:Whiteguidelinewithoutturning theAdditional messages for vehicles with
PARKTRONIC
steering wheel, vehicle width including
ing
:Frontwarningdisplay
the exterior mirrors (static)
;Yellowguidelineatadistanceof;Additional PARKTRONICmeasurement
Driv
approximately 13 ft (4.0 m) from the rearoperational readiness indicator
of the vehicle
=Rearwarningdisplay
=Redguidelineforthevehiclewidth
Vehicles with PARKTRONIC: if
including the exterior mirrors, for current
PARKTRONICisoperational(Ypage224), an
steering wheel angle (dynamic)
additionaloperationalreadinessindicatorwill
?Yellowlanemarkingtires at current
appear in COMAND display ;. If the
steering wheel angle (dynamic)
PARKTRONICwarningdisplays are active or
light up, warning displays : and = are also
active or light up correspondingly in the
COMANDdisplay.
"Reverse parking" function
Backing up straight into a parking space
without turning the steering wheel
AYellowguidelineatadistanceof
approximately 3 ft (1.0 m) from the rear
of the vehicle
BVehiclecenteraxle(marker assistance)
CBumper
DRedguidelineatadistanceof
approximately 10 in (0.25 m) from the
rear of the vehicle
:Whiteguidelinewithoutturning the
The guide lines are shown when the
steering wheel, vehicle width including
transmission is in position R.
the exterior mirrors (static)
The distance specifications only apply to
;Redguidelineforthevehiclewidth
objects that are at ground level.
including the exterior mirrors, for current
steering wheel angle (dynamic)
