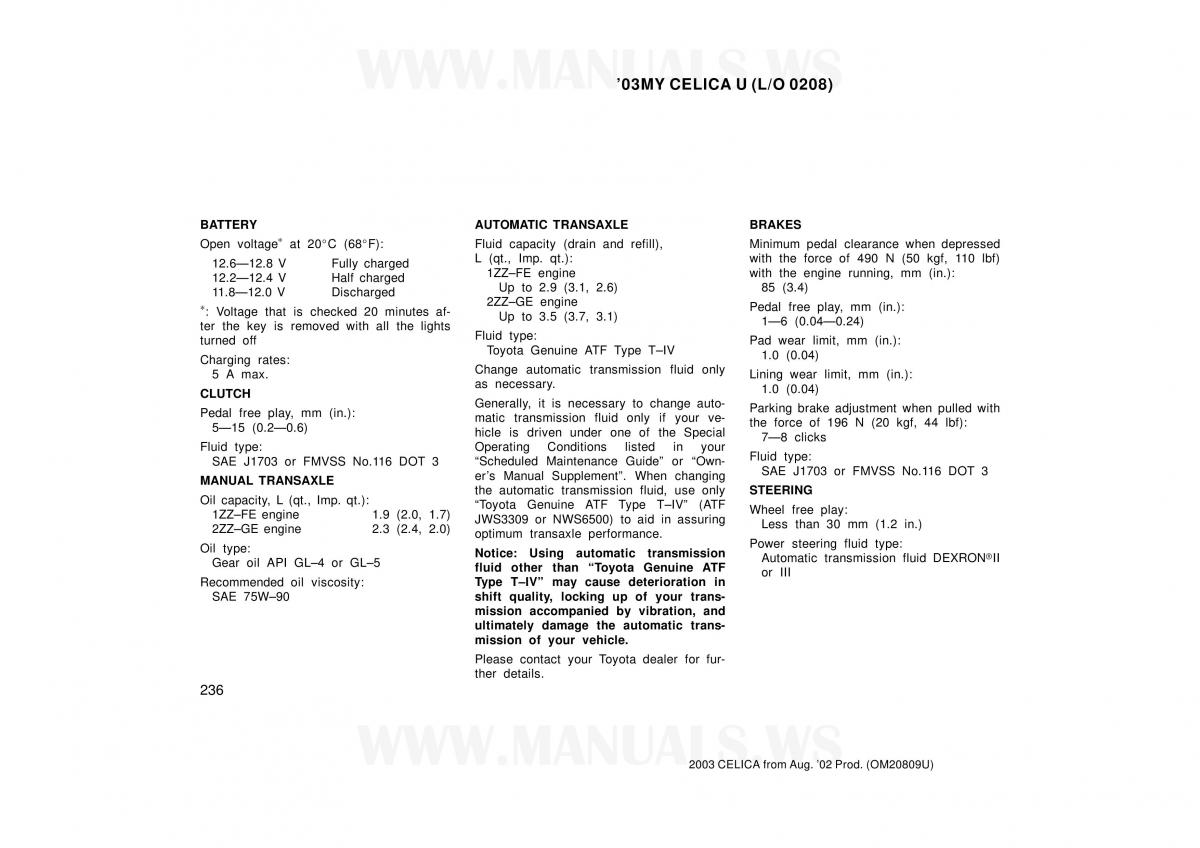

 ’03MY CELICA U (L/O 0208) BATTERY AUTOMATIC TRANSAXLE BRAKES ∗ Open voltage at 20
C (68
F): Fluid capacity (drain and reill),f Minimum pedal clearance when depressed 12.6—12.8 V Fully charged L (qt., Imp. qt.): with the force of 490 N (50 kgf, 110 lbf) 12.2—12.4 V Half charged 1ZZ–FE engine with the engine running, mm (in.): 11.8—12.0 V Discharged Up to 2.9 (3.1, 2.6) 85 (3.4) ∗: Voltage that is checked 20 minutes af-2ZZ–GE engine Pedal free play, mm (in.): ter the key is removed with all the lightsUp to 3.5 (3.7, 3.1) 1—6 (0.04—0.24) turned off Fluid type: Pad wear limit, mm (in.): Charging rates: Toyota Genuine ATF Type T–IV 1.0 (0.04) 5 A max. Change automatic transmission fluid onlyLining wear limit, mm (in.): CLUTCH as necessary. 1.0 (0.04) Pedal free play, mm (in.): Generally, it is necessary to change auto- Parking brake adjustment when pulled with matic transmission fluid only if your ve- 5—15 (0.2—0.6) the force of 196 N (20 kgf, 44 lbf): hicle is driven under one of the Special7—8 clicks Fluid type: Operating Conditions listed in your SAE J1703 or FMVSS No.116 DOT 3 “Scheduled Maintenance Guide” or “Own-Fluid type: MANUAL TRANSAXLE er’s Manual Supplement”. When changing SAE J1703 or FMVSS No.116 DOT 3 the automatic transmission fluid, use only Oil capacity, L (qt., Imp. qt.): STEERING “Toyota Genuine ATF Type T–IV” (ATF 1ZZ–FE engine 1.9 (2.0, 1.7) Wheel free play: 2ZZ–GE engine 2.3 (2.4, 2.0)JWS3309 or NWS6500) to aid in assuring Less than 30 mm (1.2 in.) optimum transaxle performance. Power steering fluid type: Oil type: Notice: Using automatic transmission Automatic transmission fluid DEXRONII Gear oil API GL–4 or GL–5 fluid other than “Toyota Genuine ATF or III Recommended oil viscosity: Type T–IV” may cause deterioration in SAE 75W–90 shift quality, locking up of your trans- mission accompanied by vibration, and ultimately damage the automatic trans- mission of your vehicle. Please contact your Toyota dealer for fur- ther details. 236
