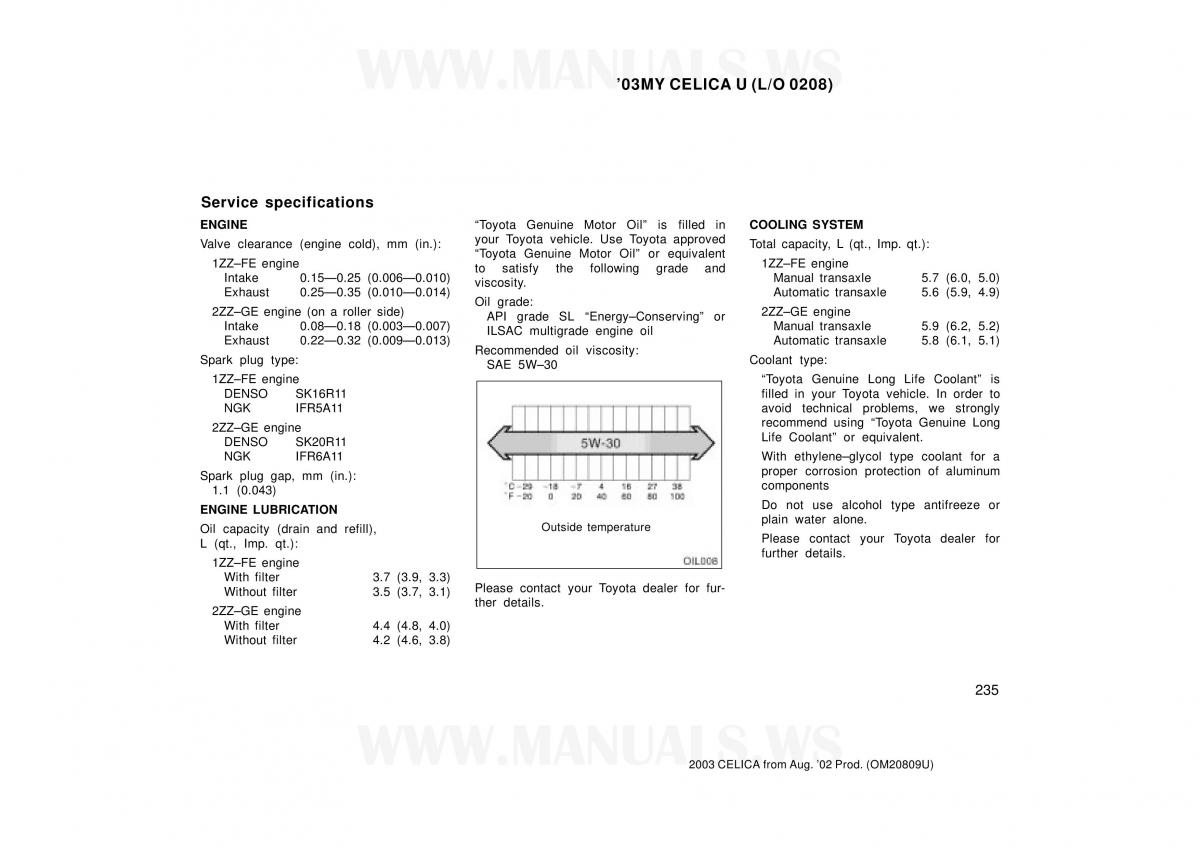

’03MY CELICA U (L/O 0208)
Service specifications
ENGINE “Toyota Genuine Motor Oil” is illef d in COOLING SYSTEM
Valve clearance (engine cold), mm (in.):your Toyota vehicle. Use Toyota approvedTotal capacity, L (qt., Imp. qt.):
“Toyota Genuine Motor Oil” or equivalent
1ZZ–FE engine 1ZZ–FE engine
to satisfy the following grade and
Intake 0.15—0.25 (0.006—0.010)viscosity. Manual transaxle 5.7 (6.0, 5.0)
Exhaust 0.25—0.35 (0.010—0.014)Oil grade: Automatic transaxle5.6 (5.9, 4.9)
2ZZ–GE engine (on a roller side)API grade SL “Energy–Conserving” or2ZZ–GE engine
Intake 0.08—0.18 (0.003—0.007)ILSAC multigrade engine oil Manual transaxle 5.9 (6.2, 5.2)
Exhaust 0.22—0.32 (0.009—0.013) Automatic transaxle5.8 (6.1, 5.1)
Spark plug type: Recommended oil viscosity: Coolant type:
SAE 5W–30
1ZZ–FE engine “Toyota Genuine Long Life Coolant” is
DENSO SK16R11 filled in your Toyota vehicle. In order to
NGK IFR5A11 avoid technical problems, we strongly
2ZZ–GE engine recommend using “Toyota Genuine Long
DENSO SK20R11 Life Coolant” or equivalent.
NGK IFR6A11 With ethylene–glycol type coolant for a
Spark plug gap, mm (in.): proper corrosion protection of aluminum
1.1 (0.043) components
ENGINE LUBRICATION Do not use alcohol type antifreeze or
Oil capacity (drain and reill),f Outside temperature plain water alone.
L (qt., Imp. qt.): Please contact your Toyota dealer for
1ZZ–FE engine further details.
With filter 3.7 (3.9, 3.3)Please contact your Toyota dealer for fur-
Without filter 3.5 (3.7, 3.1)ther details.
2ZZ–GE engine
With filter 4.4 (4.8, 4.0)
Without filter 4.2 (4.6, 3.8)
235
2003 CELICA from Aug. ’02 Prod. (OM20809U)
