text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

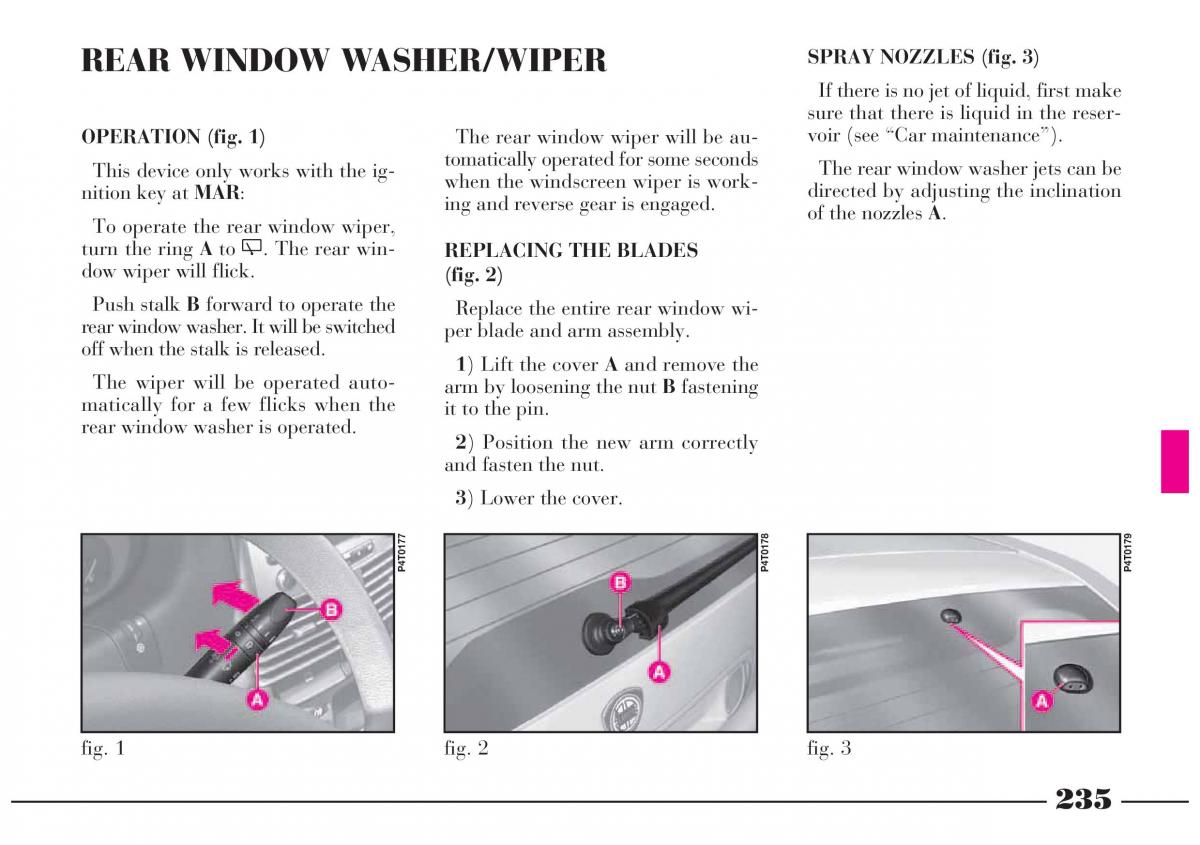

REAR WINDOW WASHER/WIPER SPRAY NOZZLES (fig. 3) If there is no jet of liquid, first make sure that there is liquid in the reser- OPERATION (fig. 1) voir (see “Car maintenance”). The rear window wiper will be au- This device only works with the ig- tomatically operated for some seconds The rear window washer jets can be when the windscreen wiper is work- nition key at MAR: ing and reverse gear is engaged. directed by adjusting the inclination To operate the rear window wiper, of the nozzles A. turn the ring A to '. The rear win- REPLACING THE BLADES dow wiper will flick. (fig. 2) Push stalk B forward to operate the Replace the entire rear window wi- rear window washer. It will be switched per blade and arm assembly. off when the stalk is released. 1) Lift the cover A and remove the The wiper will be operated auto- arm by loosening the nut Bfastening matically for a few flicks when the rear window washer is operated. it to the pin. 2) Position the new arm correctly and fasten the nut. 3) Lower the cover. P4T0177 P4T0178 P4T0179 fig. 1 fig. 2 fig. 3 235
