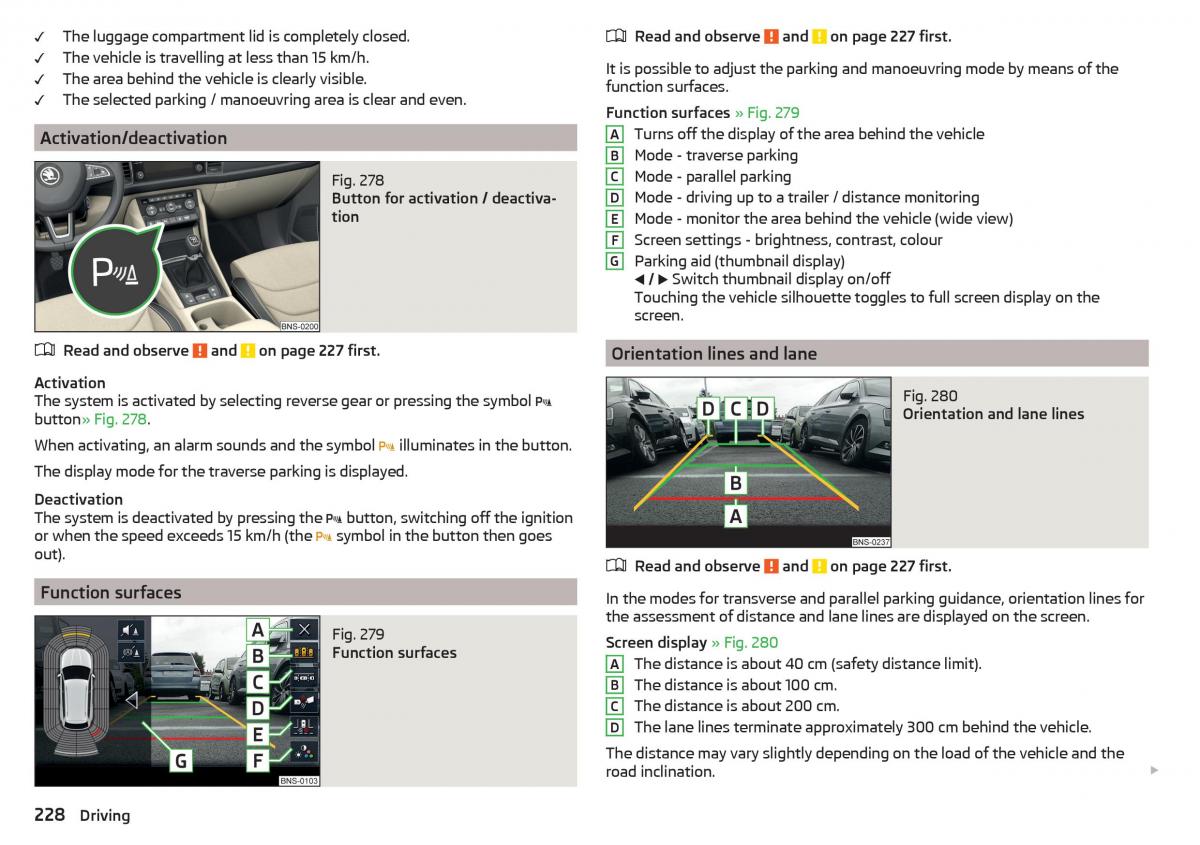

0he luggage compartment lid is completely closed.Read and observe and on page ėėĜ first.
0he vehicle is travelling at less than ĖĚ km/h.
It is possible to adjust the parking and manoeuvring mode by means of the
0he area behind the vehicle is clearly visible.
function surfaces.
0he selected parking / manoeuvring area is clear and even.
Function surfaces » Fig. ėĜĞ
A 0urns off the display of the area behind the vehicle
Activation/deactivation
B Mode - traverse parking
C Mode - parallel parking
Fig. ėĜĝ
Button for activation / deactiva-D Mode - driving up to a trailer / distance monitoring
tion
E Mode - monitor the area behind the vehicle (wide view)
F Screen settings - brightness, contrast, colour
G Parking aid (thumbnail display)
Switch thumbnail display on/off
0ouching the vehicle silhouette toggles to full screen display on the
screen.
Read and observe and on page ėėĜ first.
Orientation lines and lane
Activation
Fig. ėĝĕ
0he system is activated by selecting reverse gear or pressing the symbol
Orientation and lane lines
button» Fig. ėĜĝ.
3hen activating, an alarm sounds and the symbol illuminates in the button.
0he display mode for the traverse parking is displayed.
Deactivation
0he system is deactivated by pressing the button, switching off the ignition
or when the speed exceeds ĖĚ km/h (the symbol in the button then goes
out).
Read and observe and on page ėėĜ first.
Function surfaces
In the modes for transverse and parallel parking guidance, orientation lines for
the assessment of distance and lane lines are displayed on the screen.
Fig. ėĜĞ
Screen display » Fig. ėĝĕ
Function surfaces
A 0he distance is about ęĕ cm (safety distance limit).
B 0he distance is about Ėĕĕ cm.
C 0he distance is about ėĕĕ cm.
D 0he lane lines terminate approximately Ęĕĕ cm behind the vehicle.
0he distance may vary slightly depending on the load of the vehicle and the
road inclination.
ėėĝ Driving
