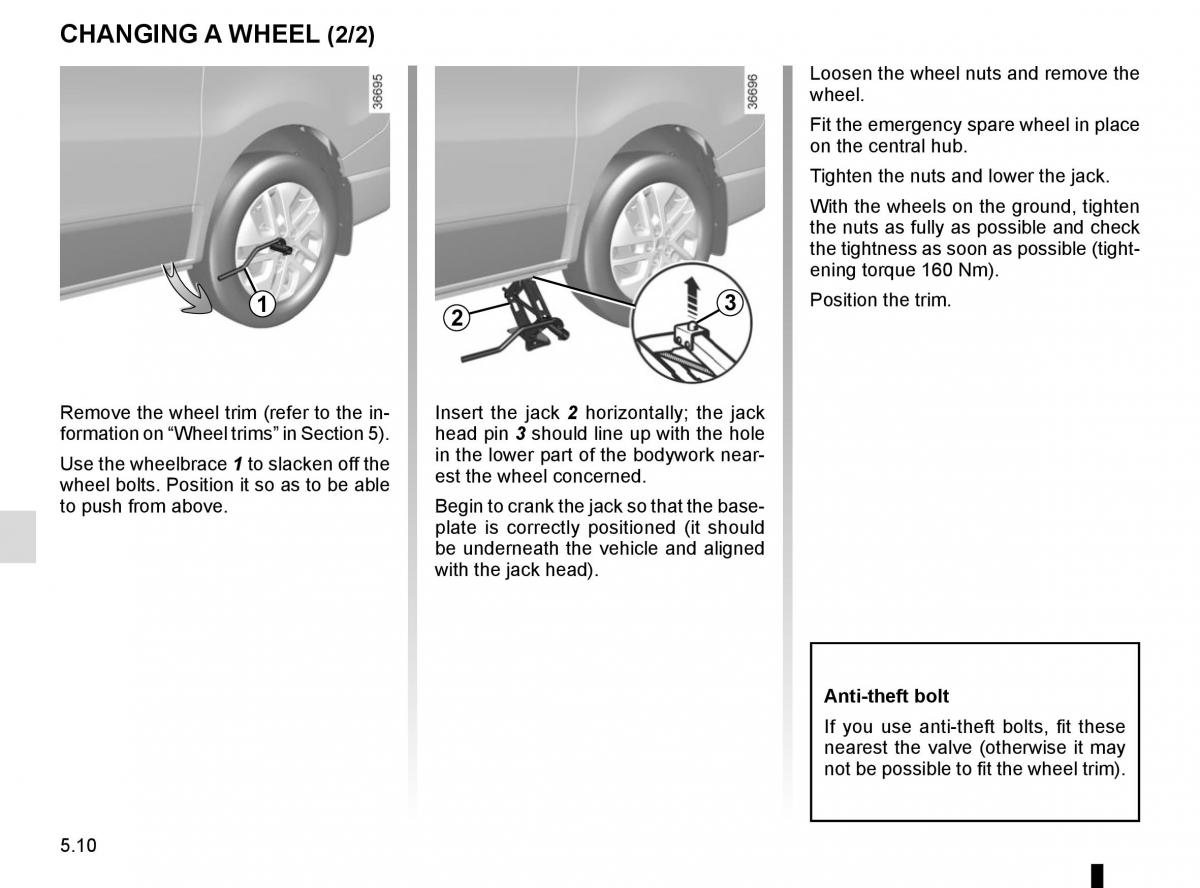

CHANGING A WHEEL (2/2)
Loosen the wheel nuts and remove the
wheel.
Fit the emergency spare wheel in place
on the central hub.
Tighten the nuts and lower the jack.
With the wheels on the ground, tighten
the nuts as fully as possible and check
the tightness as soon as possible (tight-
ening torque 160 Nm).
1 2 3 Position the trim.
Remove the wheel trim (refer to the in-Insert the jack horizontally; the jack2
formation on “Wheel trims” in Section 5).head pin 3 should line up with the hole
Use the wheelbrace 1 to slacken off the in the lower part of the bodywork near-
wheel bolts. Position it so as to be able est the wheel concerned.
to push from above. Begin to crank the jack so that the base-
plate is correctly positioned (it should
be underneath the vehicle and aligned
with the jack head).
Anti-theft bolt
If you use anti-theft bolts, fit these
nearest the valve (otherwise it may
not be possible to fit the wheel trim).
5.10
