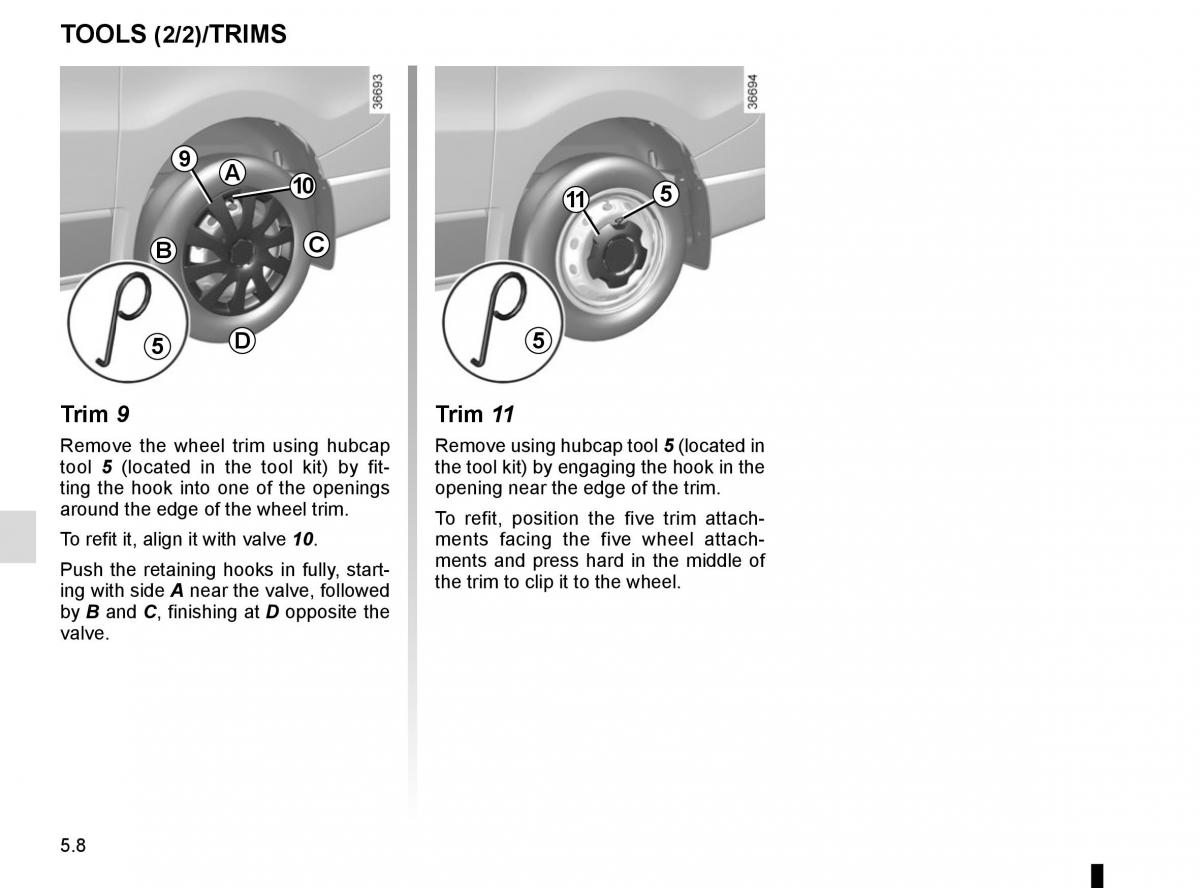

TOOLS (2/2)/TRIMS
9 A
10 11 5
B C
5 D 5
Trim 9 Trim 11
Remove the wheel trim using hubcapRemove using hubcap tool 5 (located in
tool 5 (located in the tool kit) by fit-the tool kit) by engaging the hook in the
ting the hook into one of the openings opening near the edge of the trim.
around the edge of the wheel trim.To refit, position the five trim attach-
To refit it, align it with valve 10.ments facing the five wheel attach-
ments and press hard in the middle of
Push the retaining hooks in fully, start-
ing with side A near the valve, followed the trim to clip it to the wheel.
by B and C, finishing at D opposite the
valve.
5.8
