text version of content this owner's manual page from owners manual to the vehicle Mercedes Maybach_S600, year of production 2014:

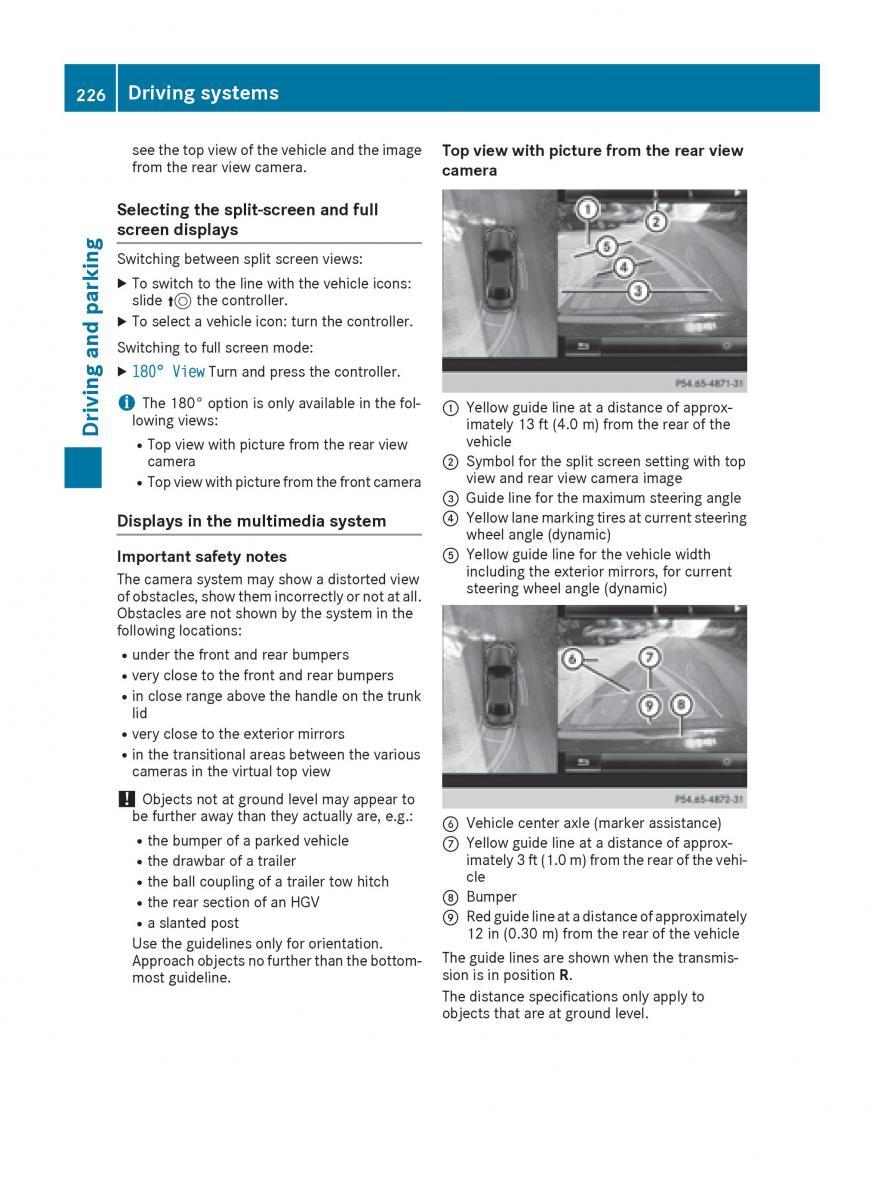

226 Driving systems seethetopviewofthevehicleandtheimageTopviewwithpicturefromtherearview from the rear view camera. camera Selecting the split-screen and full screen displays Switching between split screen views: XToswitchtothelinewiththevehicle icons: parkingslide 5thecontroller. XToselectavehicle icon: turn the controller. andSwitching to full screen mode: X180° ViewTurnandpressthecontroller. rivingiThe180°optionisonlyavailableinthefol-:Yellowguidelineatadistanceofapprox- D lowing views: imately 13 ft (4.0 m) from the rear of the RTopviewwithpicture from the rear viewvehicle camera ;Symbolforthesplitscreensetting with top RTopviewwithpicturefromthefrontcameraview and rear view camera image =Guidelineforthemaximumsteeringangle Displays in the multimedia system?Yellowlanemarkingtiresatcurrentsteering wheel angle (dynamic) Important safety notes AYellowguidelineforthevehicle width The camera system may show a distorted viewincluding the exterior mirrors, for current ofobstacles,showthemincorrectlyornotatall.steering wheel angle (dynamic) Obstacles are not shown by the system in the following locations: Runderthefront and rear bumpers Rveryclose to the front and rear bumpers Rincloserangeabovethehandleonthetrunk lid Rveryclose to the exterior mirrors Rinthetransitional areas between the various cameras in the virtual top view !Objectsnotatgroundlevelmayappearto be further away than they actually are, e.g.:BVehiclecenteraxle(markerassistance) Rthebumperofaparkedvehicle CYellowguidelineatadistanceofapprox- Rthedrawbarofatrailer imately3ft(1.0m)fromtherearofthevehi- Rtheball coupling of a trailer tow hitchcle Rtherearsection of an HGV DBumper Raslantedpost ERedguidelineatadistanceofapproximately Usetheguidelines only for orientation.12in(0.30 m) from the rear of the vehicle Approachobjectsnofurtherthanthebottom-The guide lines are shown when the transmis- mostguideline. sion is in position R. The distance specifications only apply to objects that are at ground level.
