from owners manual to the vehicle Ford Focus, year of production 2010:

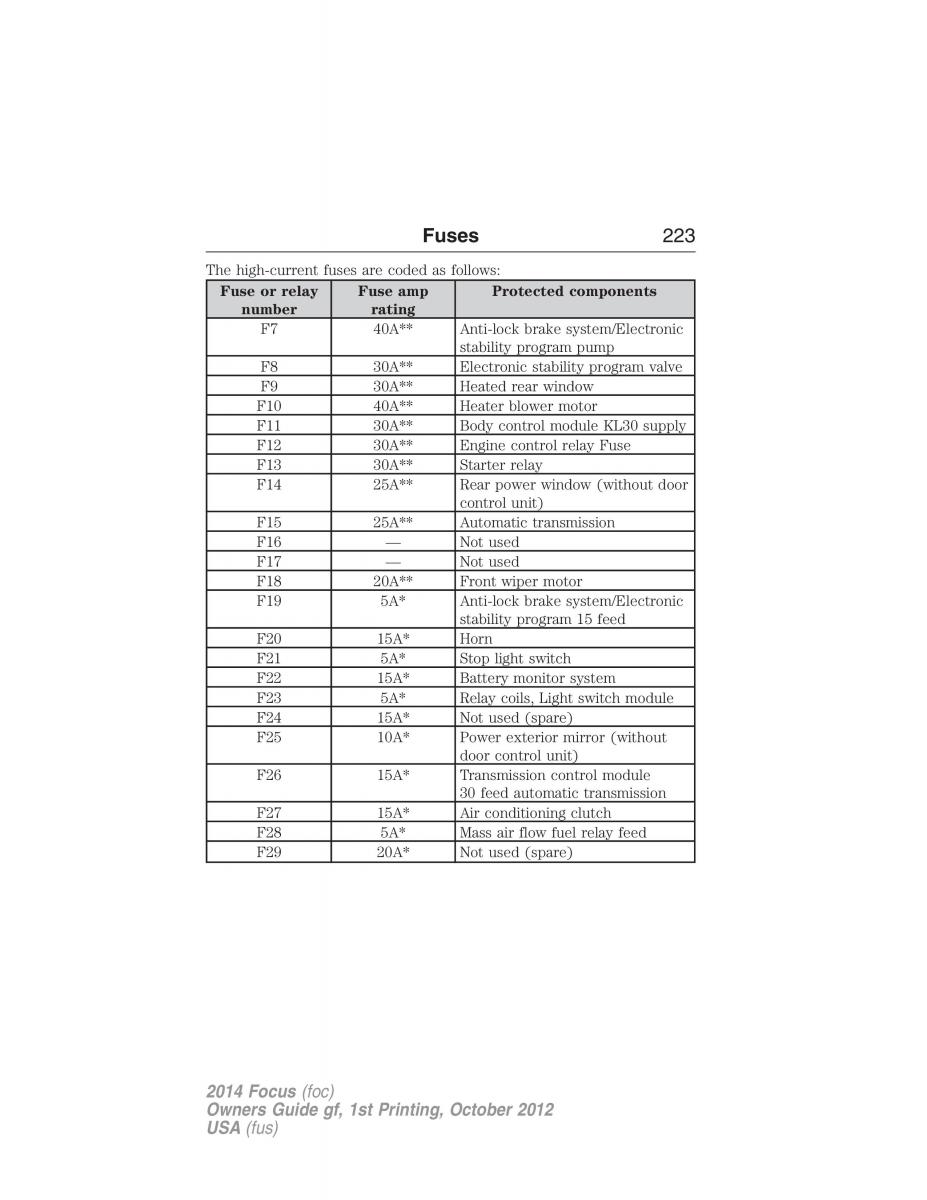

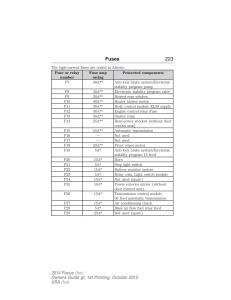

Fuses 223
The high-current fuses are coded as follows:
Fuse or relayFuse amp Protected components
number rating
F7 40A** Anti-lock brake system/Electronic
stability program pump
F8 30A** Electronic stability program valve
F9 30A** Heated rear window
F10 40A** Heater blower motor
F11 30A** Body control module KL30 supply
F12 30A** Engine control relay Fuse
F13 30A** Starter relay
F14 25A** Rear power window (without door
control unit)
F15 25A** Automatic transmission
F16 — Not used
F17 — Not used
F18 20A** Front wiper motor
F19 5A* Anti-lock brake system/Electronic
stability program 15 feed
F20 15A* Horn
F21 5A* Stop light switch
F22 15A* Battery monitor system
F23 5A* Relay coils, Light switch module
F24 15A* Not used (spare)
F25 10A* Power exterior mirror (without
door control unit)
F26 15A* Transmission control module
30 feed automatic transmission
F27 15A* Air conditioning clutch
F28 5A* Mass air flow fuel relay feed
F29 20A* Not used (spare)
2014 Focus (foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
