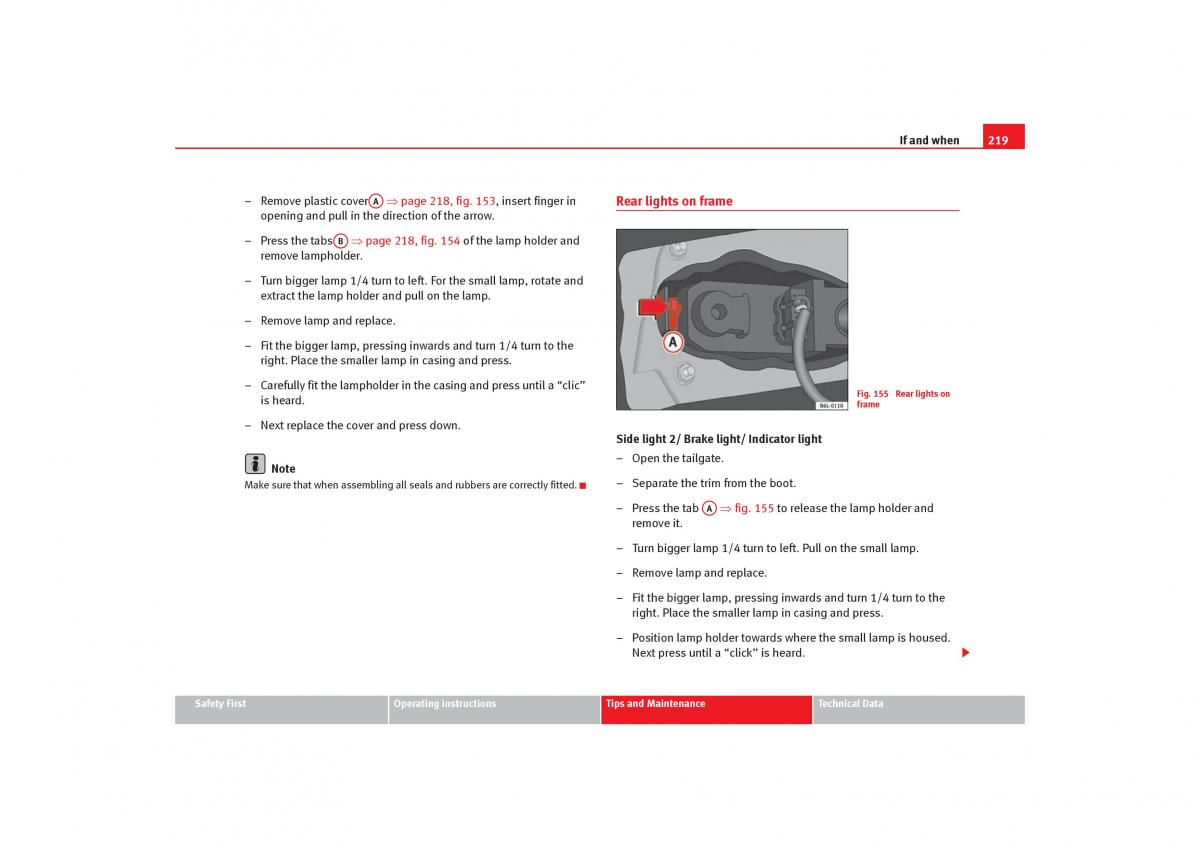

COR_ING_0707 Seite 219 Mittwoch, 1. August 2007 6:25 18
If and when 219
– Remove plastic cover A ⇒ page218, fig.153, insert finger in
A Rear lights on frame
opening and pull in the direction of the arrow.
B
–Press the tabs ⇒page218, fig.154 of the lamp holder and
A
remove lampholder.
– Turn bigger lamp 1/4 turn to left. For the small lamp, rotate and
extract the lamp holder and pull on the lamp.
– Remove lamp and replace.
– Fit the bigger lamp, pressing inwards and turn 1/4 turn to the
right. Place the smaller lamp in casing and press.
– Carefully fit the lampholder in the casing and press until a “clic” Fig. 155 Rear lights on
is heard. frame
– Next replace the cover and press down.
Side light 2/ Brake light/ Indicator light
–Open the tailgate.
Note
Make sure that when assembling all seals and rubbers are correctly fitted.– Separate the trim from the boot.
– Press the tab A ⇒ fig. 155 to release the lamp holder and
A
remove it.
– Turn bigger lamp 1/4 turn to left. Pull on the small lamp.
– Remove lamp and replace.
– Fit the bigger lamp, pressing inwards and turn 1/4 turn to the
right. Place the smaller lamp in casing and press.
– Position lamp holder towards where the small lamp is housed.
s until a “click” is heard.
Next pres
