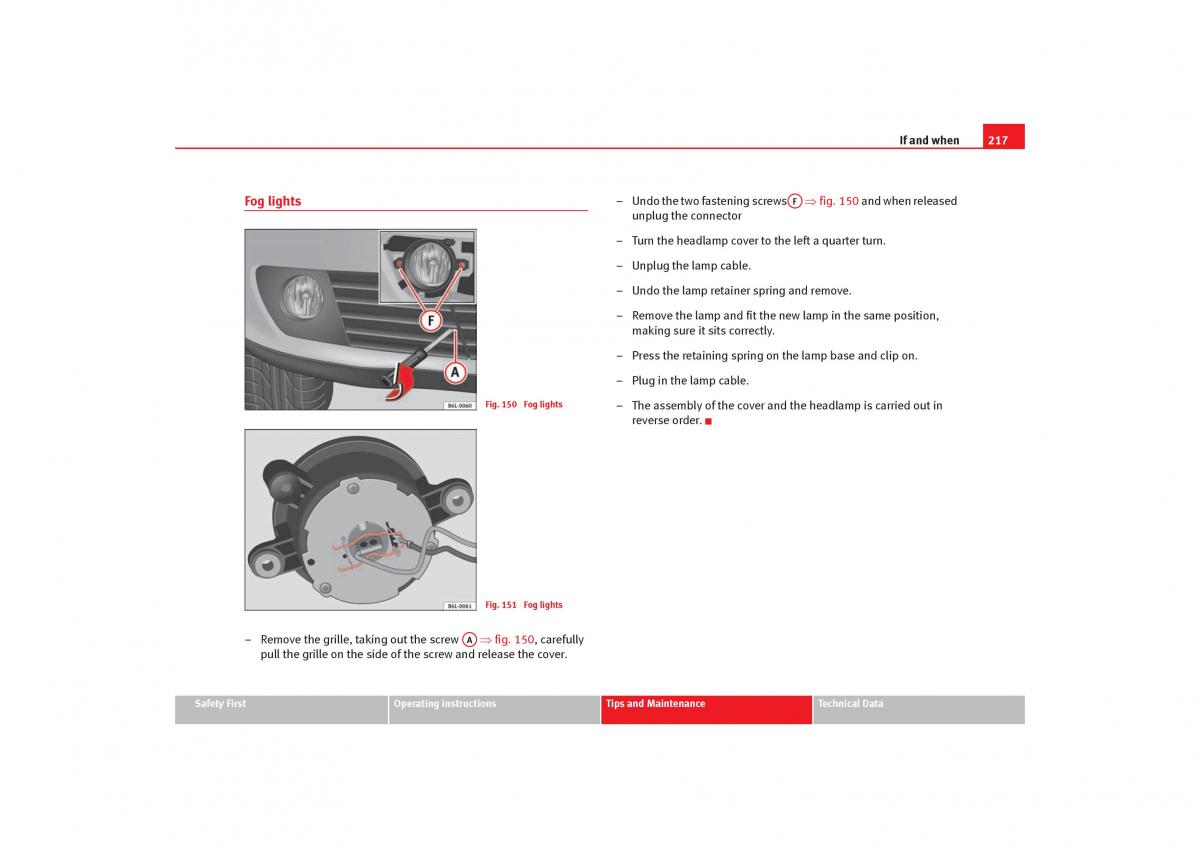

COR_ING_0707 Seite 217 Mittwoch, 1. August 2007 6:25 18
If and when 217
F
– Undo the two fastening screws ⇒fig.150 and when released
Fog lights A
unplug the connector
– Turn the headlamp cover to the left a quarter turn.
– Unplug the lamp cable.
– Undo the lamp retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position,
making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
–Plug in the lamp cable.
Fig. 150 Fog lights–The assembly of the cover andthe headlamp is carried out in
reverse order.
Fig. 151 Fog lights
– Remove the grille, taking out the screw A ⇒ fig. 150, carefully
A
pull the grille on the side of the screw and release the cover.
Safety First Operating instructions Tips and Maintenance Technical Data
