text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

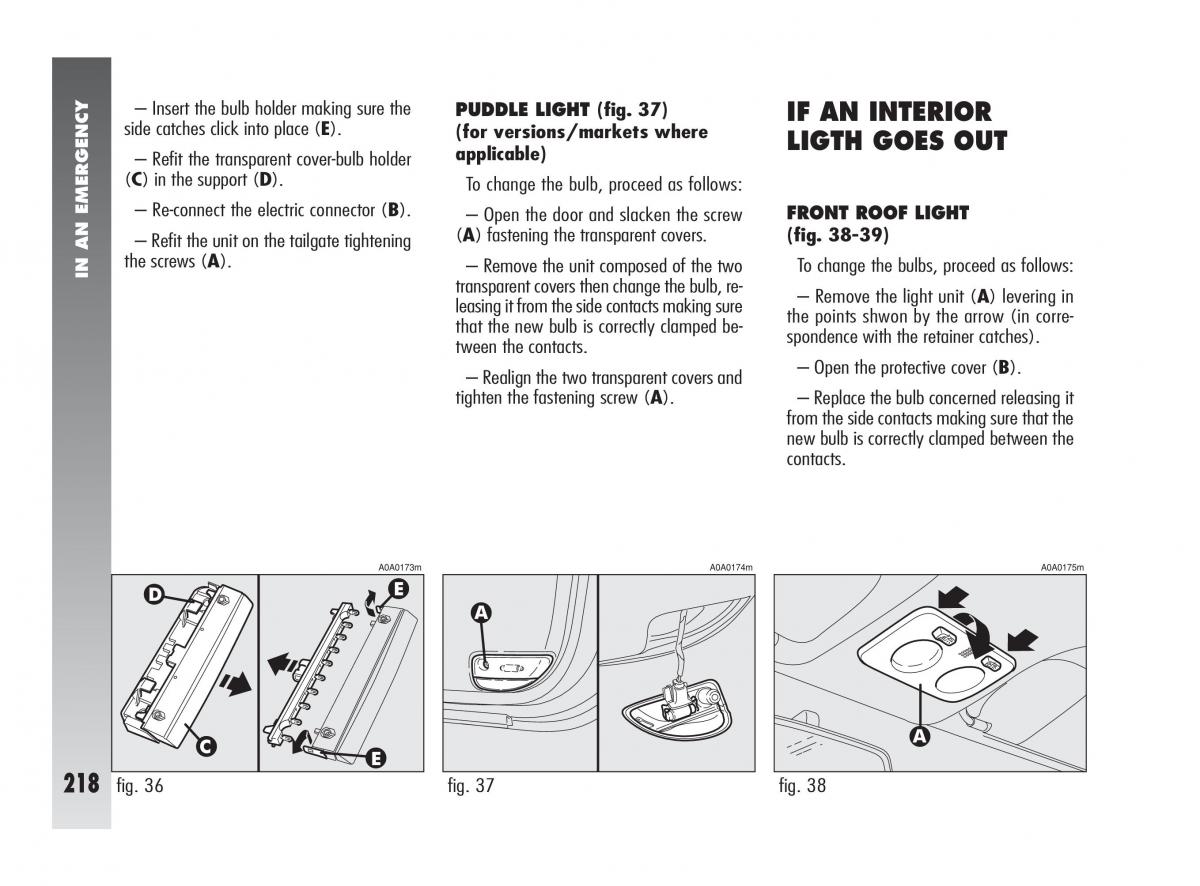

197-233_Alfa147 Q2 GB 4-07-2008 12:04 Pagina 218 – Insert the bulb holder making sure the PUDDLE LIGHT (fig. 37) IF AN INTERIOR side catches click into place (E). (for versions/markets where LIGTH GOES OUT – Refit the transparent cover-bulb holder applicable) (C) in the support ( D). To change the bulb, proceed as follows: – Re-connect the electric connector (B). FRONT ROOF LIGHT – Open the door and slacken the screw – Refit the unit on the tailgate tightening (A) fastening the transparent covers. (fig. 38-39) the screws ( A). – Remove the unit composed of the two To change the bulbs, proceed as follows: IN AN EMERGENCY transparent covers then change the bulb, re- leasing it from the side contacts making sure – Remove the light unit (A) levering in that the new bulb is correctly clamped be- the points shwon by the arrow (in corre- tween the contacts. spondence with the retainer catches). – Realign the two transparent covers and – Open the protective cover (B). tighten the fastening screw (A). – Replace the bulb concerned releasing it from the side contacts making sure that the new bulb is correctly clamped between the contacts. A0A0173m A0A0174m A0A0175m 218 fig. 36 fig. 37 fig. 38
