text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

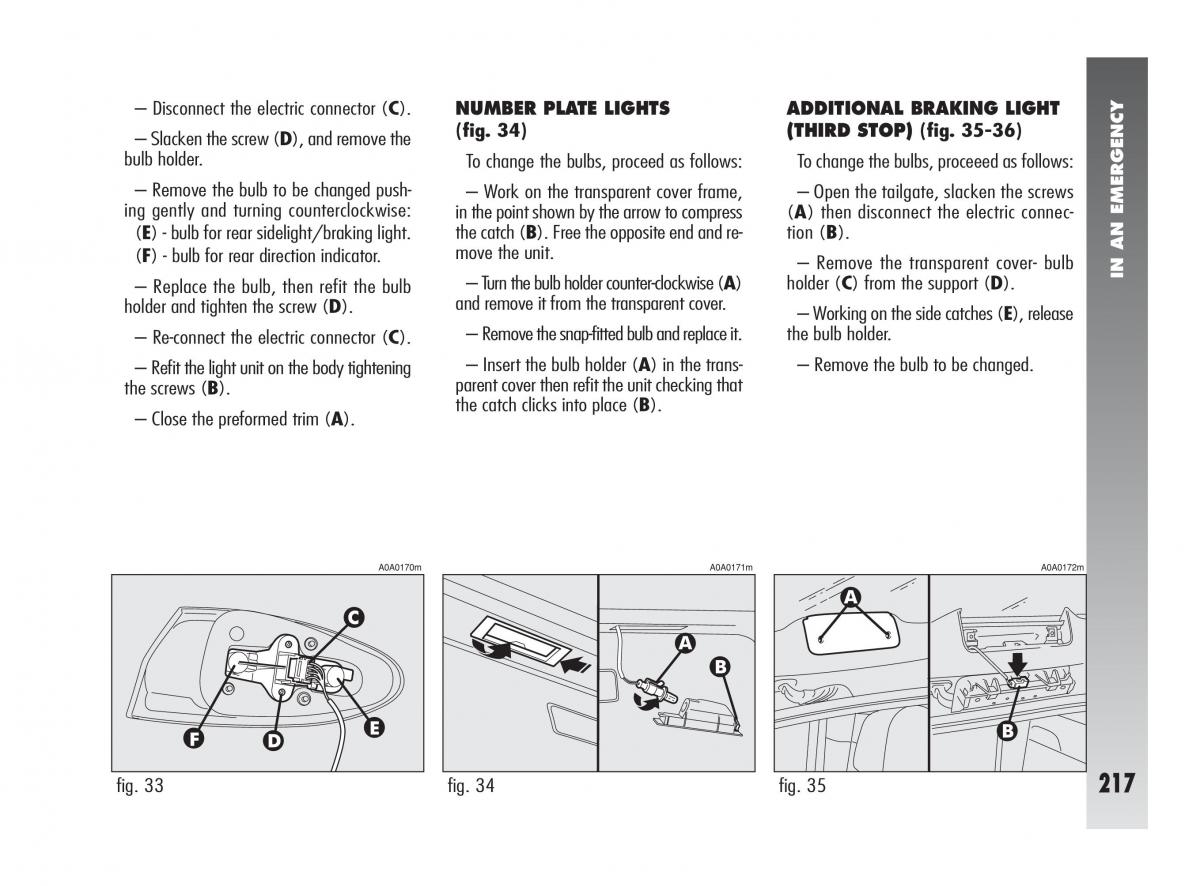

197-233_Alfa147 Q2 GB 4-07-2008 12:04 Pagina 217 – Disconnect the electric connector (C). NUMBER PLATE LIGHTS ADDITIONAL BRAKING LIGHT – Slacken the screw (D), and remove the (fig. 34) (THIRD STOP) (fig. 35-36) bulb holder. To change the bulbs, proceed as follows: To change the bulbs, proceeed as follows: – Remove the bulb to be changed push- – Work on the transparent cover frame, – Open the tailgate, slacken the screws ing gently and turning counterclockwise: in the point shown by the ar row to compress (A) then disconnect the electric connec- (E) - bulb for rear sidelight/braking light. the catch (B). Free the opposite end and re- tion (B). (F) - bulb for rear direction indicator. move the unit. – Remove the transparent cover- bulb –Turn the bulb holder counter-clockwise (A) holder (C) from the support (D). IN AN EMERGENCY – Replace the bulb, then refit the bulb holder and tighten the screw (D). and remove it from the transparent cover. – Working on the side catches (E), release – Re-connect the electric connector (C). – Remove the snap-fitted bulb and replace it. the bulb holder. – Refit the light unit on the body tightening – Insert the bulb holder (A) in the trans- – Remove the bulb to be changed. the screws ( B). parent cover then refit the unit checking that – Close the preformed trim (A). the catch clicks into place (B). A0A0170m A0A0171m A0A0172m fig. 33 fig. 34 fig. 35 217
