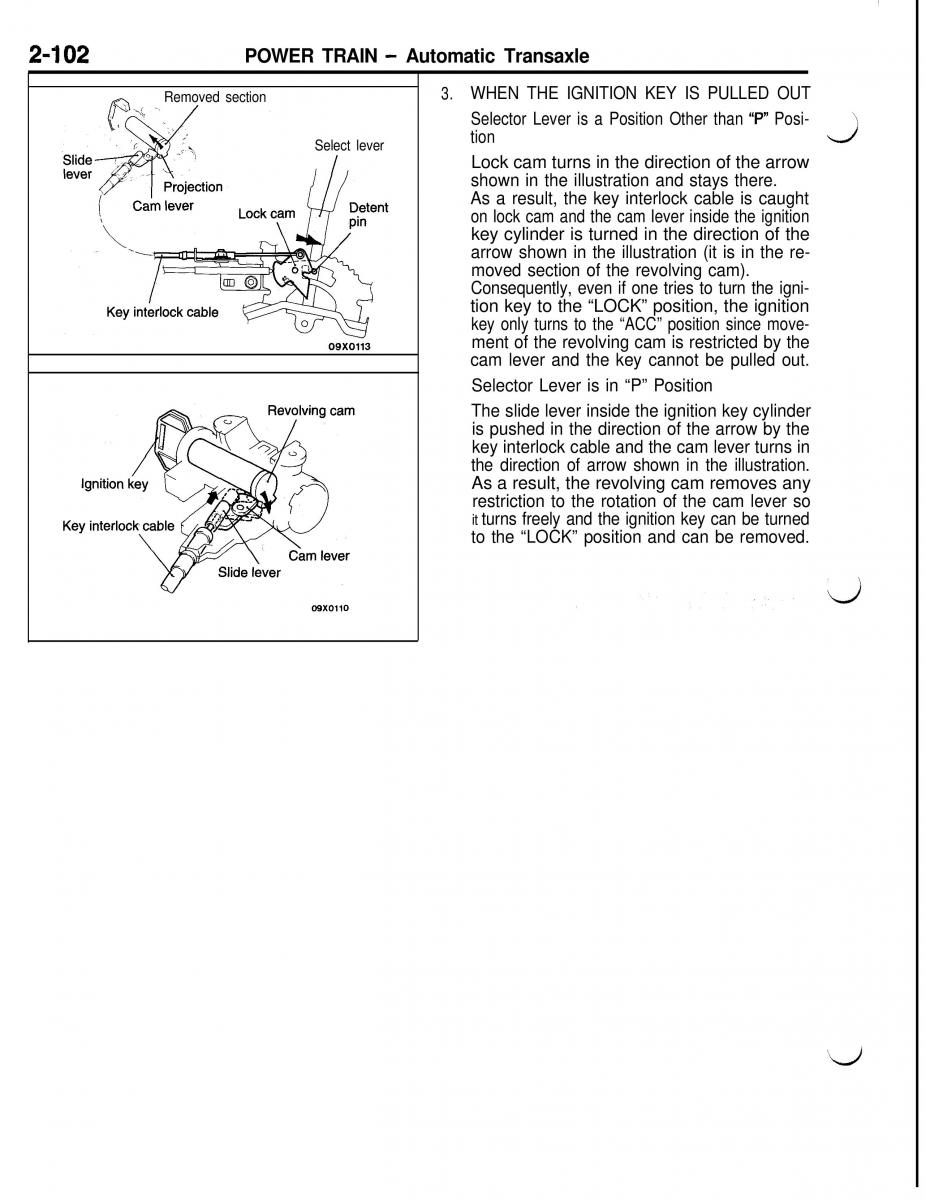

POWER TRAIN - Automatic Transaxle Removed section 3. WHEN THE IGNITION KEY IS PULLED OUT \ Selector Lever is a Position Other than“P” Posi- Select lever tion a Lock cam turns in the direction of the arrow shown in the illustration and stays there. As a result, the key interlock cable is caught on lock cam and the cam lever inside the ignition key cylinder is turned in the direction of the arrow shown in the illustration (it is in the re- moved section of the revolving cam). Consequently, even if one tries to turn the igni- tion key to the “LOCK” position, the ignition key only turns to the “ACC” position since move- ment of the revolving cam is restricted by the cam lever and the key cannot be pulled out. Selector Lever is in “P” Position The slide lever inside the ignition key cylinder is pushed in the direction of the arrow by the key interlock cable and the cam lever turns in the direction of arrow shown in the illustration. As a result, the revolving cam removes any restriction to the rotation of the cam lever so it turns freely and the ignition key can be turned to the “LOCK” position and can be removed.
