text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4, year of production 2006 - 2014:

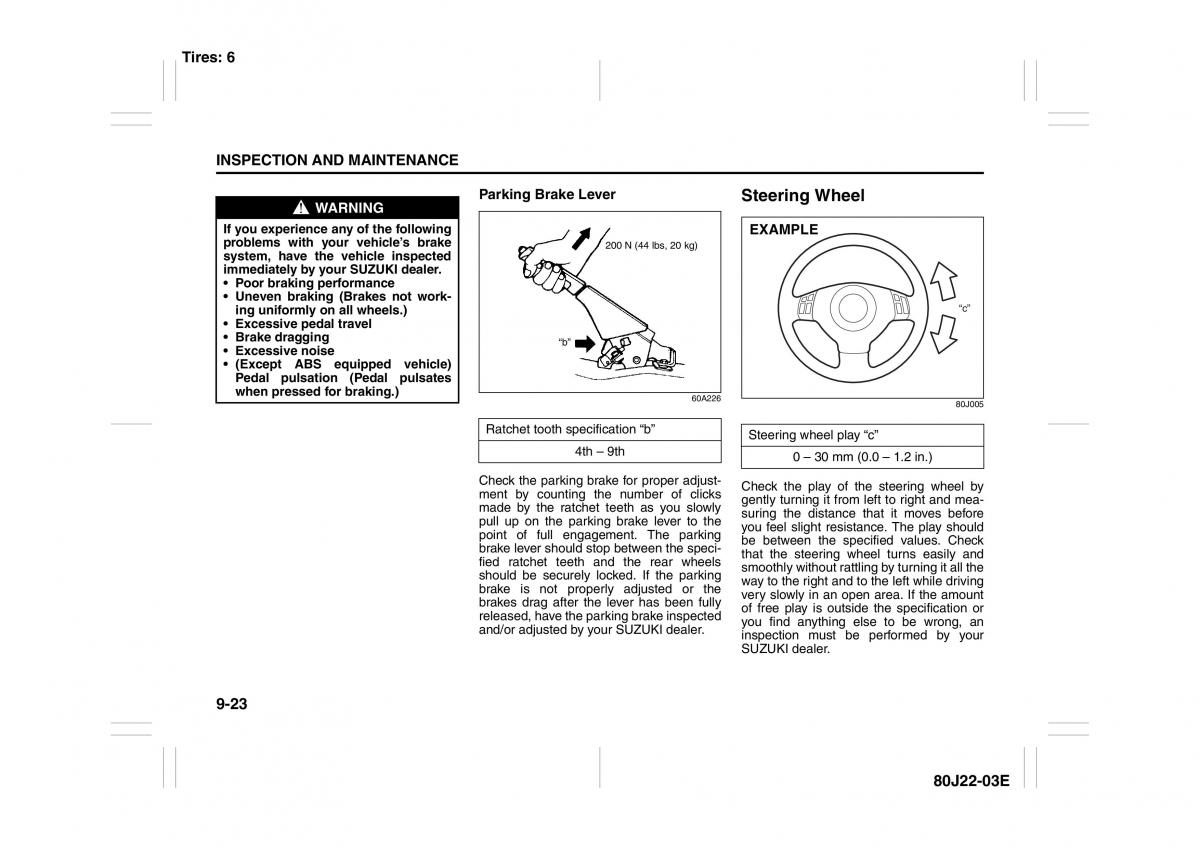

Tires: 6 INSPECTION AND MAINTENANCE Parking Brake Lever Steering Wheel WARNING If you experience any of the following EXAMPLE problems with your vehicle’s brake 200 N (44 lbs, 20 kg) system, have the vehicle inspected immediately by your SUZUKI dealer. • Poor braking performance • Uneven braking (Brakes not work- ing uniformly on all wheels.) “c” • Excessive pedal travel • Brake dragging “b” • Excessive noise • (Except ABS equipped vehicle) Pedal pulsation (Pedal pulsates when pressed for braking.) 60A226 80J005 Ratchet tooth specification “b” Steering wheel play “c” 4th – 9th 0 – 30 mm (0.0 – 1.2 in.) Check the parking brake for proper adjust-Check the play of the steering wheel by ment by counting the number of clicks gently turning it from left to right and mea- made by the ratchet teeth as you slowly suring the distance that it moves before pull up on the parking brake lever to the you feel slight resistance. The play should point of full engagement. The parking brake lever should stop between the speci-be between the specified values. Check that the steering wheel turns easily and fied ratchet teeth and the rear wheels smoothly without rattling by turning it all the should be securely locked. If the parking way to the right and to the left while driving brake is not properly adjusted or the very slowly in an open area. If the amount brakes drag after the lever has been fully released, have the parking brake inspectedof free play is outside the specification or and/or adjusted by your SUZUKI dealer. you find anything else to be wrong, an inspection must be performed by your SUZUKI dealer. 9-23 80J22-03E
