text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4, year of production 2006 - 2014:

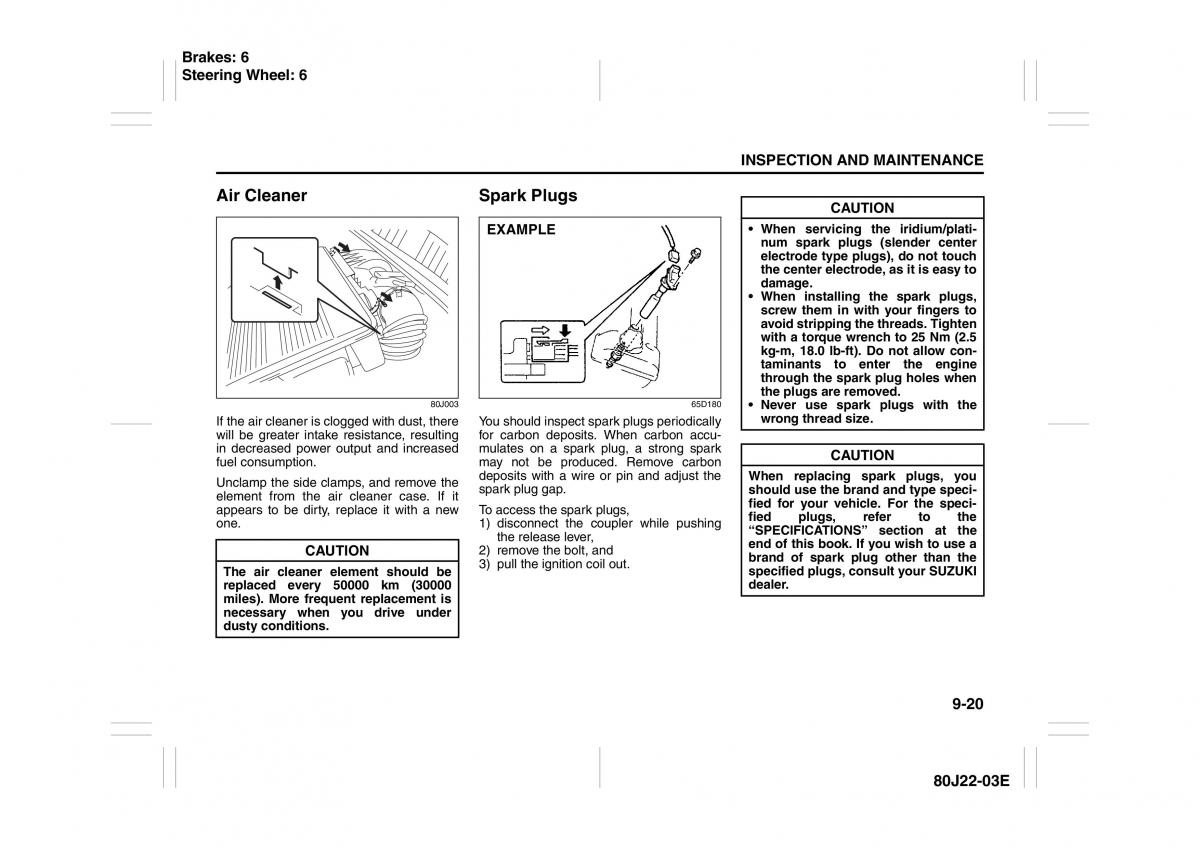

Brakes: 6 Steering Wheel: 6 INSPECTION AND MAINTENANCE Air Cleaner Spark Plugs CAUTION EXAMPLE • When servicing the iridium/plati- num spark plugs (slender center electrode type plugs), do not touch the center electrode, as it is easy to damage. • When installing the spark plugs, screw them in with your fingers to avoid stripping the threads. Tighten with a torque wrench to 25 Nm (2.5 kg-m, 18.0 lb-ft). Do not allow con- taminants to enter the engine through the spark plug holes when the plugs are removed. 80J003 65D180 • Never use spark plugs with the If the air cleaner is clogged with dust, thereYou should inspect spark plugs periodicallywrong thread size. will be greater intake resistance, resulting for carbon deposits. When carbon accu- in decreased power output and increasedmulates on a spark plug, a strong spark CAUTION fuel consumption. may not be produced. Remove carbon deposits with a wire or pin and adjust the Unclamp the side clamps, and remove the When replacing spark plugs, you spark plug gap. should use the brand and type speci- element from the air cleaner case. If it fied for your vehicle. For the speci- appears to be dirty, replace it with a newTo access the spark plugs, fied plugs, refer to the one. 1) disconnect the coupler while pushing “SPECIFICATIONS” section at the the release lever, end of this book. If you wish to use a CAUTION 2) remove the bolt, and brand of spark plug other than the 3) pull the ignition coil out. specified plugs, consult your SUZUKI The air cleaneemer elnt should be replaced every 50000 km (30000 dealer. miles). More frequent replacement is necessary when you drive under dusty conditions. 9-20 80J22-03E
