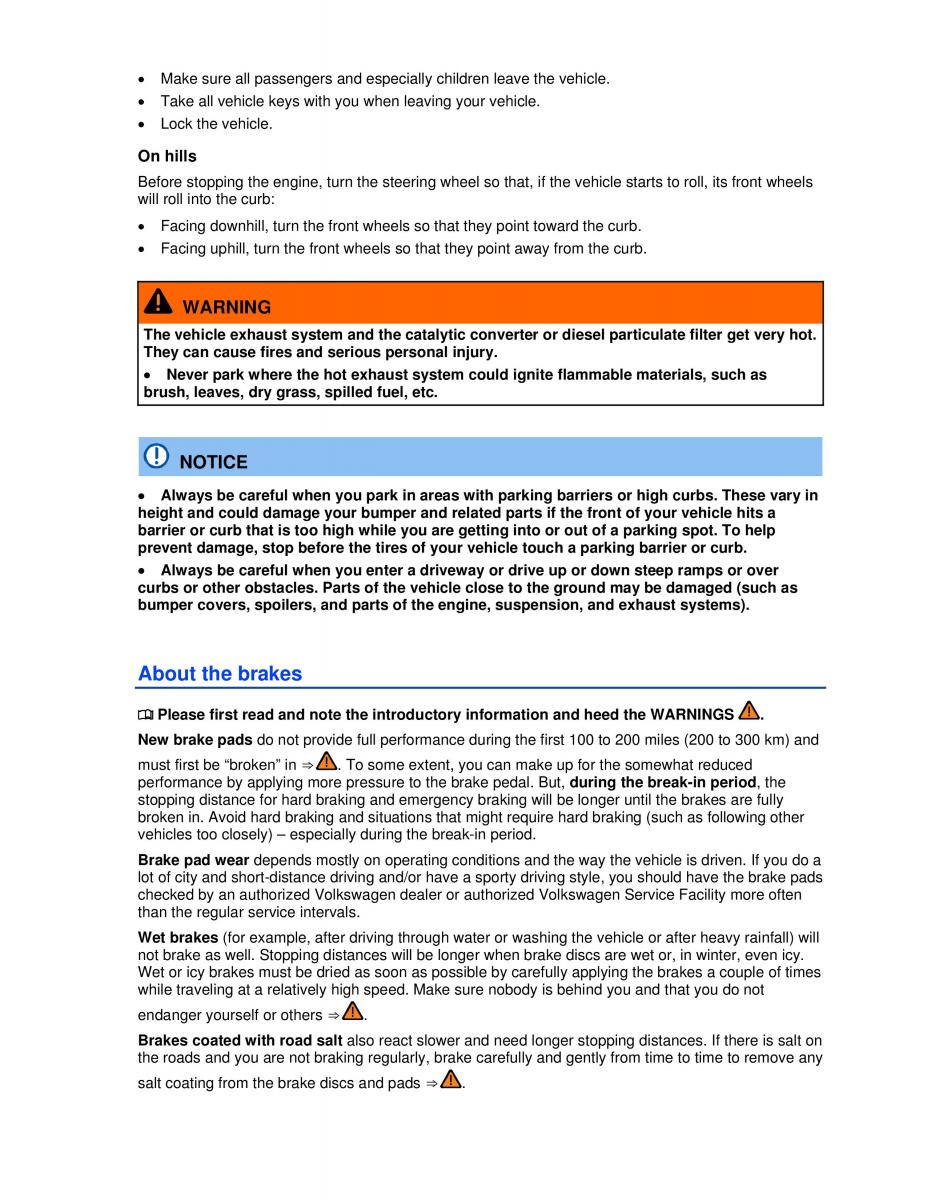

from owners manual to the vehicle VW Passat, year of production 2010 - 2014:
x Make sure all passengers and especially children leave the vehicle.
x Take all vehicle keys with you when leaving your vehicle.
x Lock the vehicle.
On hills
Before stopping the engine, turn the steering wheel so that, if the vehicle starts to roll, its front wheels
will roll into the curb:
x Facing downhill, turn the front wheels so that they point toward the curb.
x Facing uphill, turn the front wheels so that they point away from the curb.
WARNING
The vehicle exhaust system and the catalytic converter or diesel particulate filter get very hot.
They can cause fires and serious personal injury.
x Never park where the hot exhaust system could ignite flammable materials, such as
brush, leaves, dry grass, spilled fuel, etc.
NOTICE
x Always be careful when you park in areas with parking barriers or high curbs. These vary in
height and could damage your bumper and related parts if the front of your vehicle hits a
barrier or curb that is too high while you are getting into or out of a parking spot. To help
prevent damage, stop before the tires of your vehicle touch a parking barrier or curb.
x Always be careful when you enter a drivewa oyr drive up or down steep ramps or over
curbs or other obstacles. Parts of the vehicle close to the ground may be damaged (such as
bumper covers, spoilers, and parts of the engine, suspension, and exhaust systems).
About the brakes
¤ Please first read and note the introductory information and heed the WARNINGS .
New brake pads do not provide full performance during the first 100 to 200 miles (200 to 300 km) and
must first be “broken” in ⇒ . To some extent, you can make up for the somewhat reduced
performance by applying more pressure to the brake pedal. But, during the break-in period, the
stopping distance for hard braking and emergency braking will be longer until the brakes are fully
broken in. Avoid hard braking and situations that might require hard braking (such as following other
vehicles too closely) – especially during the break-in period.
Brake pad wear depends mostly on operating conditions and the way the vehicle is driven. If you do a
lot of city and short-distance driving and/or have a sporty driving style, you should have the brake pads
checked by an authorized Volkswagen dealer or authorized Volkswagen Service Facility more often
than the regular service intervals.
Wet brakes (for example, after driving through water or washing the vehicle or after heavy rainfall) will
not brake as well. Stopping distances will be longer when brake discs are wet or, in winter, even icy.
Wet or icy brakes must be dried as soon as possible by carefully applying the brakes a couple of times
while traveling at a relatively high speed. Make sure nobody is behind you and that you do not
endanger yourself or others ⇒ .
Brakes coated with road salt also react slower and need longer stopping distances. If there is salt on
the roads and you are not braking regularly, brake carefully and gently from time to time to remove any
salt coating from the brake discs and pads ⇒ .
