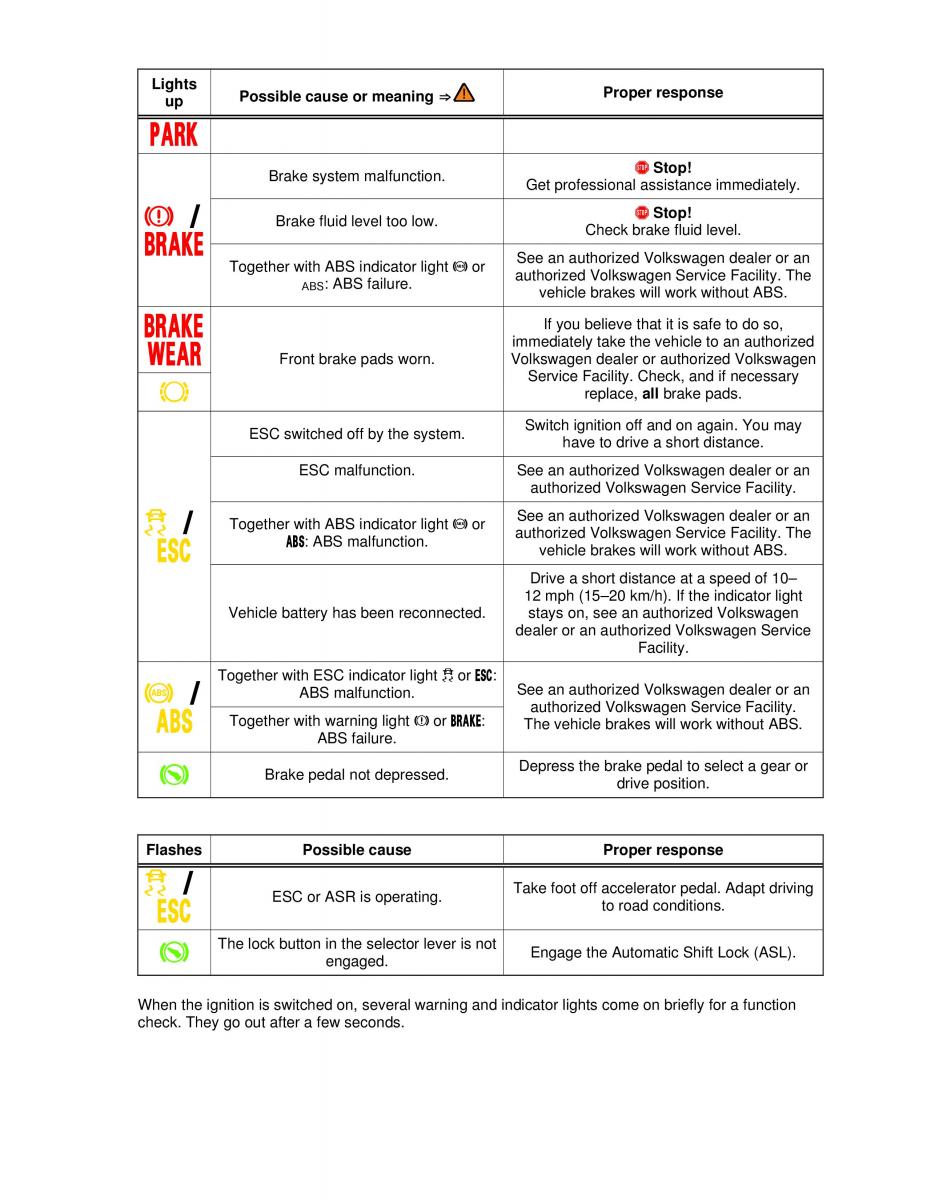

Lights Possible cause or meaning ⇒ Proper response
up
0!2+
Brake system malfunction. Stop!
Get professional assistance immediately.
H Brake fluid level too low. Stop!
"2!+% Check brake fluid level.
Together with ABS indicator light J or See an authorized Volkswagen dealer or an
: ABS failure. authorized Volkswagen Service Facility. The
ABS vehicle brakes will work without ABS.
"2!+% If you believe that it is safe to do so,
immediately take the vehicle to an authorized
7%!2 Front brake pads worn. Volkswagen dealer or authorized Volkswagen
Service Facility. Check, and if necessary
I replace, all brake pads.
ESC switched off by the system. Switch ignition off and on again. You may
have to drive a short distance.
ESC malfunction. See an authorized Volkswagen dealer or an
authorized Volkswagen Service Facility.
¸ Together with ABS indicator light J or See an authorized Volkswagen dealer or an
!"3: ABS malfunction. authorized Volkswagen Service Facility. The
%3# vehicle brakes will work without ABS.
Drive a short distance at a speed of 10–
12 mph (15–20 km/h). If the indicator light
Vehicle battery has been reconnected. stays on, see an authorized Volkswagen
dealer or an authorized Volkswagen Service
Facility.
Together with ESC indicator light ¸ or %3#:
J ABS malfunction. See an authorized Volkswagen dealer or an
authorized Volkswagen Service Facility.
!"3 Together with warning light H or "2!+%: The vehicle brakes will work without ABS.
ABS failure.
K Brake pedal not depressed. Depress the brake pedal to select a gear or
drive position.
Flashes Possible cause Proper response
¸ ESC or ASR is operating. Take foot off accelerator pedal. Adapt driving
%3# to road conditions.
K The lock button in the selector lever is not Engage the Automatic Shift Lock (ASL).
engaged.
When the ignition is switched on, several warning and indicator lights come on briefly for a function
check. They go out after a few seconds.
